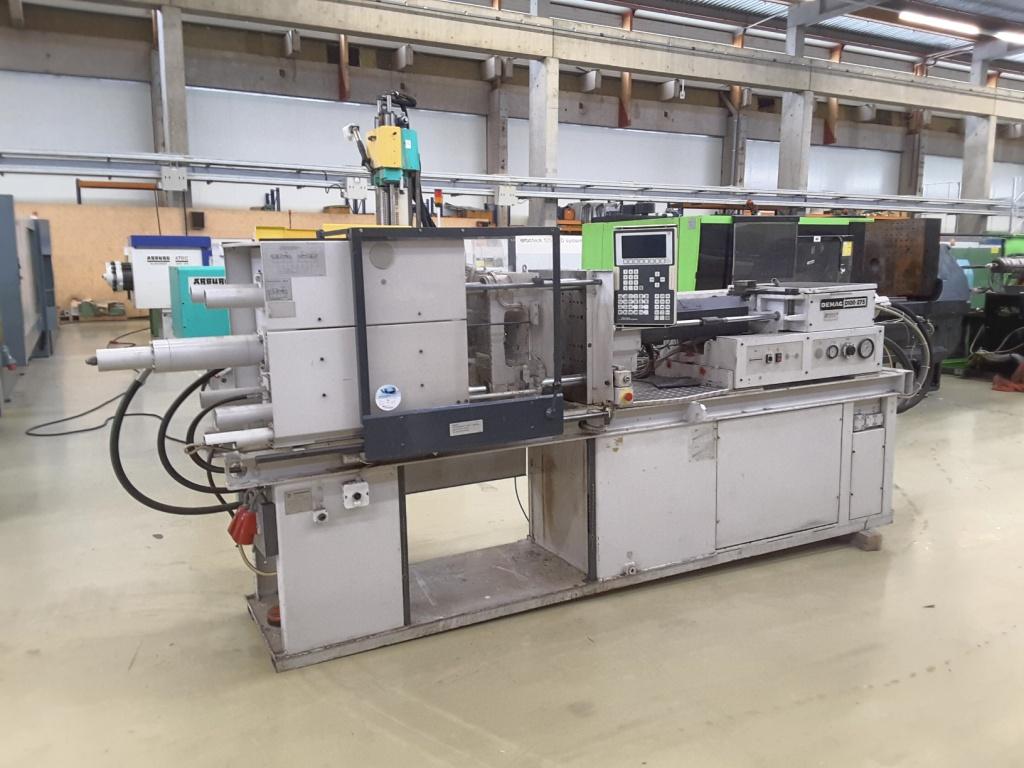

Demag D 1000 / 275 NC III
| Details |
| Manufacturer: | Demag |
| Type of machine: | 1000 / 275 NC III |
| Year: | 1989 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC III |
| Screen text: | Dutch |
| Operating hours: | 97.574 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Size of mould platens (h x v): | 540 mm x 540 mm |
| Distance between tie bars (h x v): | 360 mm x 360 mm |
| Mould opening stroke: | 350 mm |
| Mould height min./ max: | 200 / 400 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 120 mm |
| Ejector force forward/backward: | 45 / 25 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 38 mm |
| L / D | 19,3 |
| Injection pressure: | 1340 bar |
| Screw Stroke | mm |
| Stroke volume: | 160 ccm |
| Shot weight, PS: | 145 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 68 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 10,8 kW |
| Dry cycle number: | 1/h |
| Reservoir capacity: | 285 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 4800 x 1400 x 1900 mm | |
| weight: | 3500 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - Robot Interface Euromap 12 - 1 x Core - |
|
| Picture |
|---|
