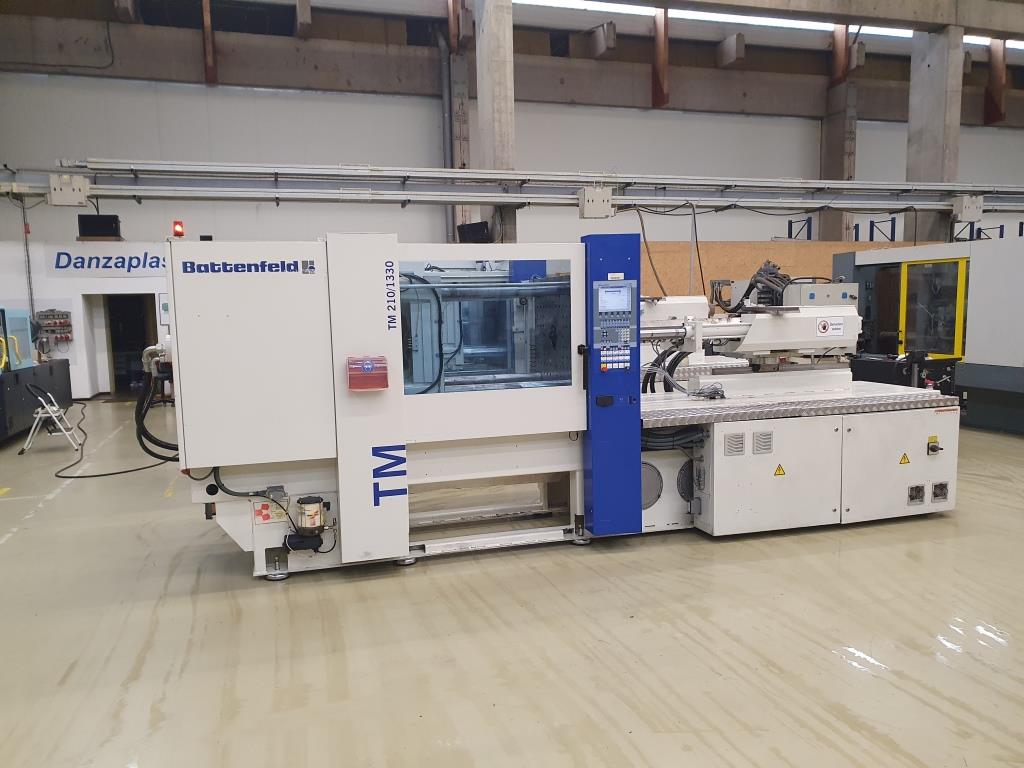

| Battenfeld TM 2100 / 1330 B4 |
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | TM 2100 / 1330 |
| Year: | 2006 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog B4 |
| Screen text: | German |
| Operating hours: | 34.393 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.100 kN |
| Size of mould platens (h x v): | 840 mm x 840 mm |
| Distance between tie bars (h x v): | 570 mm x 570 mm |
| Mould opening stroke: | 530 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | 600 mm |
| Max daylight: | 1130 mm |
| Hydraulic ejector - stroke: | 180 mm |
| Ejector force forward/backward: | 41 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 65 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1461 bar |
| Stroke volume: | 913 ccm |
| Shot weight, PS: | 831 g |
| Injection stroke: | 275 mm |
| Screw speed: | 207 1/min |
| Plasticising rate max.: | 46,2 g/s |
| Nozzle pressure: | 100 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 20,9 kW |
| Adjustable barrel heating zones: | 1+4 |
| Pump power | 37 Kw |
| Oil | 425 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 9.300 kg |
| Dimensions ( L x B x H ) | 6.1 x 1.5 x 2.0 m |
| Accessories | |
|---|---|
| - 2 x Core Hydraulic - 2 x Air valve - 16 x Hotrunner controllers - Anti vibration pads - Robot Interface Euromap 67 |
| Additional information | |
|---|---|
|
Video Picture |
|---|
