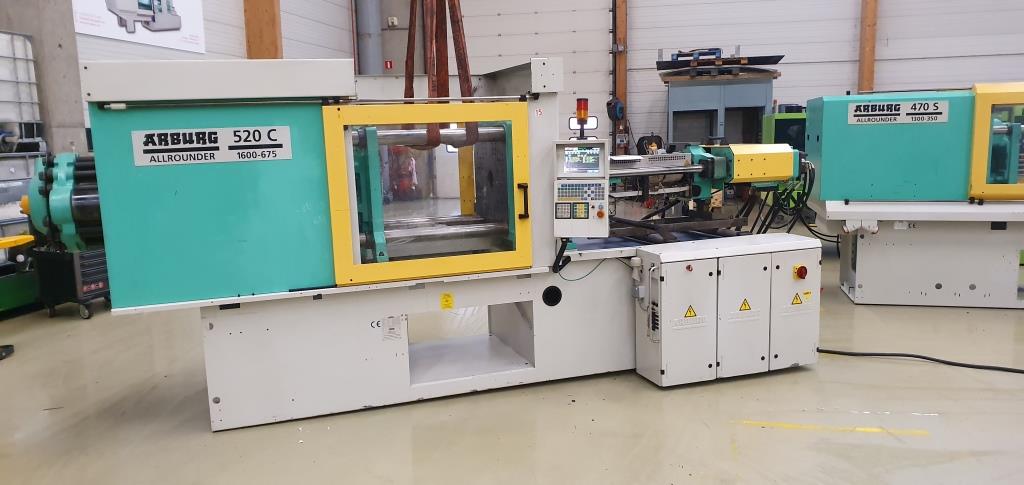

Arburg 520C - 1600 - 675
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 520 C - 1600 - 675 |
| Year: | 1999 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | German / Dutch |
| Pump Hours | 87.552 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.600 kN |
| Mould opening force, max.: | 50 / 520 kN |
| Size of mould platens (h x v): | 728 mm x 728 mm |
| Distance between tie bars (h x v): | 520 mm x 520 mm |
| Mould opening stroke: | 650 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 900 mm |
| Hydraulic ejector - stroke: | 225 mm |
| Ejector force forward/backward: | 66 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 60 mm |
| Ls/D ratio: | 16,5 |
| Injection pressure: | 1440 bar |
| Stroke volume: | 508 ccm |
| Shot weight, PS: | 464 g |
| Injection rate: | 308 ccm/s |
| Injection stroke: | 180 mm |
| Screw speed: | 79 m/min |
| Nozzle pressure: | 70 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 6 x 2200 + 600 Kw |
| Reservoir capacity: | 260 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,4 m x 1,79 m x 2,2 m |
| Total machine weight: | 6630 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - - 1 x Core |
| Additional information | |
|---|---|
|
Video Picture |
|---|
