Keba AR 281
| Details |
| Manufacturer: | Keba |
| Type | Analog Card |
| AR 281 | |
| 2204C-1 | |
| 2203 7699 | |
| Delivery time: | immediately |
| Terms of Delivery: | EX Works |
| Location: | Awans - Belgium |
| Price: |
|
Technical details

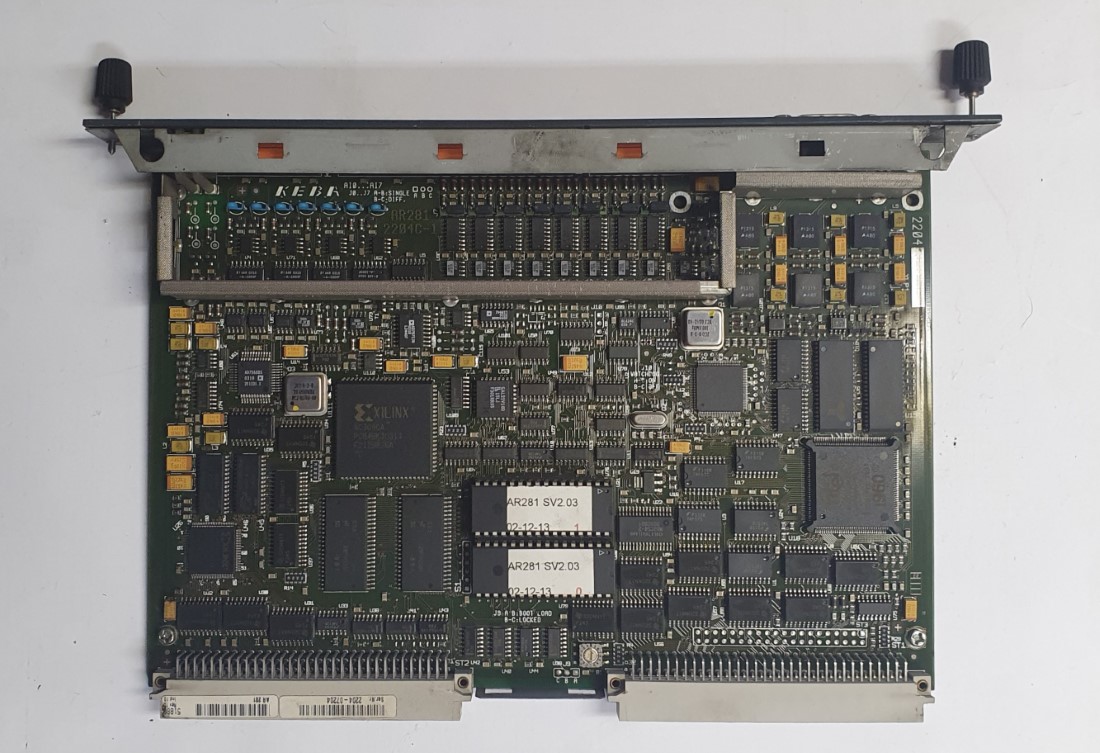

| Analog control card; with processor INTEL 960 KB, clock frequency: 25Mhz |
|---|

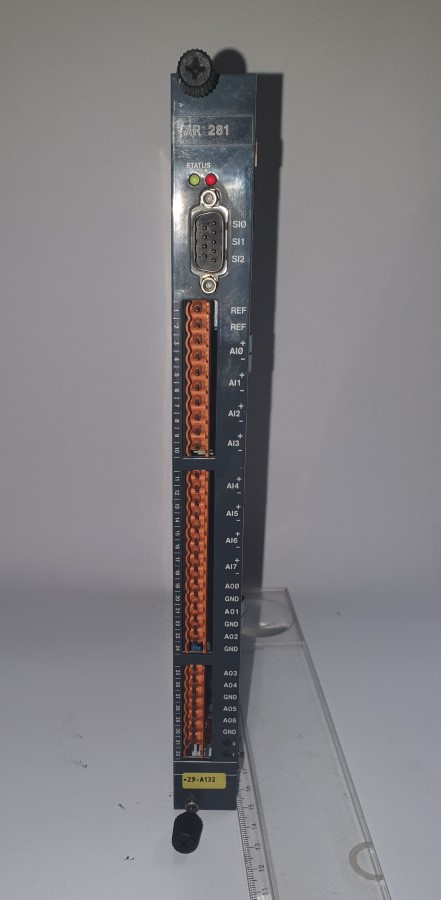

| 8 Analog inputs: -10V up to +10V, resolution 14 bits, at 0
up to +10V 13 bits for: ohmic stroke transducers Hydraulic pressure transducer, Mould cavity pressure transducer (e.g. charge amplifier Kistler), Clamping force 3 Serial inputs, resolution 14 bits for: ohmic stroke transducers with measured value converter AS141 when utilizing only a part of the total stroke the resolution reduces correspondingly. 2 digital inputs for: Speed transducer bDZ, external switchover contact bC3E, alternative clamping force pulse generator bIE 7 Analog outputs -10 up to +10V, resolution 12bits for: Valve amplifier cards |
|---|
| Picture |
|---|
.jpg)
.jpg)
