Stork SXS 2500 - 2100
| Details |
| Manufacturer: | Stork |
| Type of machine: | SX 2500 - 2100 |
| Year: | 1998 |
| Delivery time: | Immediately |
| Terms of Delivery: | EX Works |
| Location: | Awans - Belgium |
| Controlversion: | CDS - 500 |
| Screen text: | Dutch |
| Operating hours: | |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.500 kN |
| Mould opening force, max.: | 147 kN |
| Size of mould platens (h x v): | 910 mm x 940 mm |
| Distance between tie bars (h x v): | 585 mm x 585 mm |
| Mould opening stroke: | 575 mm |
| Mould height min.: | 425 mm |
| Mould height max.: | 820 mm |
| Max daylight: | 1225 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 55 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 72 mm PE II |
| Ls/D ratio: | 20.0 |
| Injection pressure: | 1600 bar |
| Stroke volume: | 1.283 ccm |
| Shot weight, PS: | 1.218 g |
| Injection rate: | 3054 ccm/s |
| Injection stroke: | 315 mm |
| Screw speed: | 239 1/min |
| Plasticising rate max.: | 71 g/s |
| Nozzle pressure: | 85 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | kW |
| Installed heating capacity: | 25 kW |
| Adjustable barrel heating zones: | |
| Dry cycle time: | 2.5 sec |
| Reservoir capacity: | 800 ltr. |
| Dimensions und weights | |
|---|---|
| Injection Unit | 4 m x 1.7 m x 2.4 m |
| Clamp Unit | 4.3 m x 1.8 m x 2.3 m |
| Total machine weight: | 5.500 + 8.600kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - 1 x Core - 8 x Air - Robot interface - Accumulators for higher injection speed |

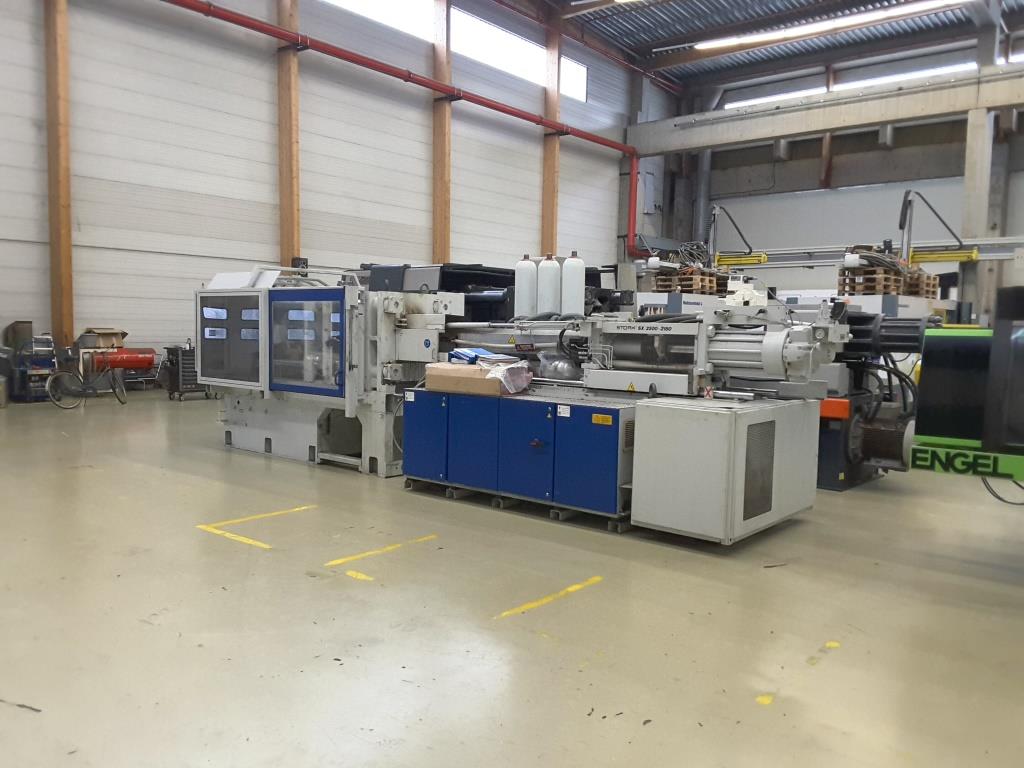

| Picture |
|---|
