Sandretto Serie Otto 612 / 150
| Details |
| Manufacturer: | Sandretto |
| Type of machine: | Serie Otto 612 / 150 |
| Year: | 1999 |
| Delivery time: | now |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | SEF 100 |
| Screen text: | French / Dutch |
| Operating hours: | 24.900 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.470 kN |
| Mould opening force, max.: | kN |
| Size of mould platens (h x v): | 690 mm x 690 mm |
| Distance between tie bars (h x v): | 460 mm x 460 mm |
| Mould opening stroke: | 500 mm |
| Mould height min./ max: | 155 / 560 mm |
| Max daylight: | 1060 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 50 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 23,3 |
| Injection pressure: | 1926 bar |
| Stroke volume: | 318 ccm |
| Shot weight, PS: | 286 g |
| Injection rate: | 156 ccm/s |
| Screw speed: | 197 - 536 1/min |
| Plasticising rate max.: | 26,4 g/sec. |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 12,8 kW |
| Adjustable barrel heating zones: | 3 + 1 |
| Dry cycle number: | 43/33 n/1 |
| Dry cycle time: | sec |
| Reservoir capacity: | 290 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 6,36 m x 1,5 m x 2,08 m |
| Total machine weight: | 7.000 kg |
| Max. mould weight: | kg |
| Accessories | |
|---|---|
| - Anti vibration pads - Robot Interface Euromap 12 |
| Additional information | |
|---|---|
| - |

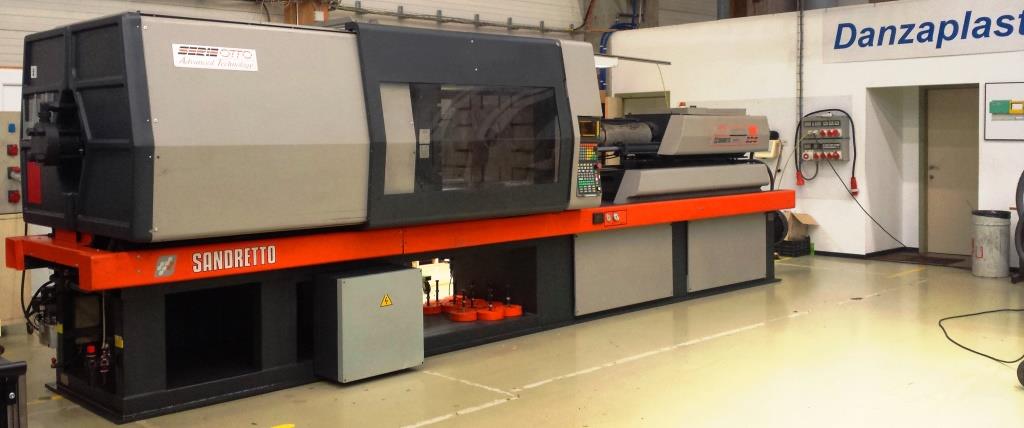

| Picture |
|---|
