Netstal Sycap HP 1750 - 870
| Details |
| Manufacturer: | Netstal |
| Type of machine: | Sycap HP 1750 - 870 |
| Year: | 1994 |
| Delivery time: | Now |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | Sycap |
| Screen text: | German / French |
| Operating hours: | 58.834 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.750 kN |
| Mould opening force, max.: | 412 kN |
| Size of mould platens (h x v): | 757 mm x 757 mm |
| Distance between tie bars (h x v): | 510 mm x 510 mm |
| Mould opening stroke: | 450 |
| Mould height min./ max: | 250 /550 mm |
| Max daylight: | 1.000 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 49 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| Ls/D ratio: | 25 |
| Inj. Speed | 1963 g / sec. |
| Screw. Stroke | mm |
| Injection pressure: | 2187 bar |
| Stroke volume: | 393 ccm |
| Shot weight, PS: | 353 g |
| Injection rate: | cc / sec |
| Screw speed: | 450 /min |
| Plasticising rate max.: | g / sec. |
| Nozzle pressure: | 88 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 20,9 kW |
| Adjustable barrel heating zones: | |
| Dry cycle number: | /min. |
| Dry cycle time: | 1.5 sec |
| Reservoir capacity: | 372 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,00 m x1,88 m x 2,04 m |
| Total machine weight: | 13.000 kg |
| Max. mould weight: | kg |
| Accessories | |
|---|---|
| - Anti vibration pads - 1 x Core - Robot Interface - |
| Additional information | |
|---|---|
| - |

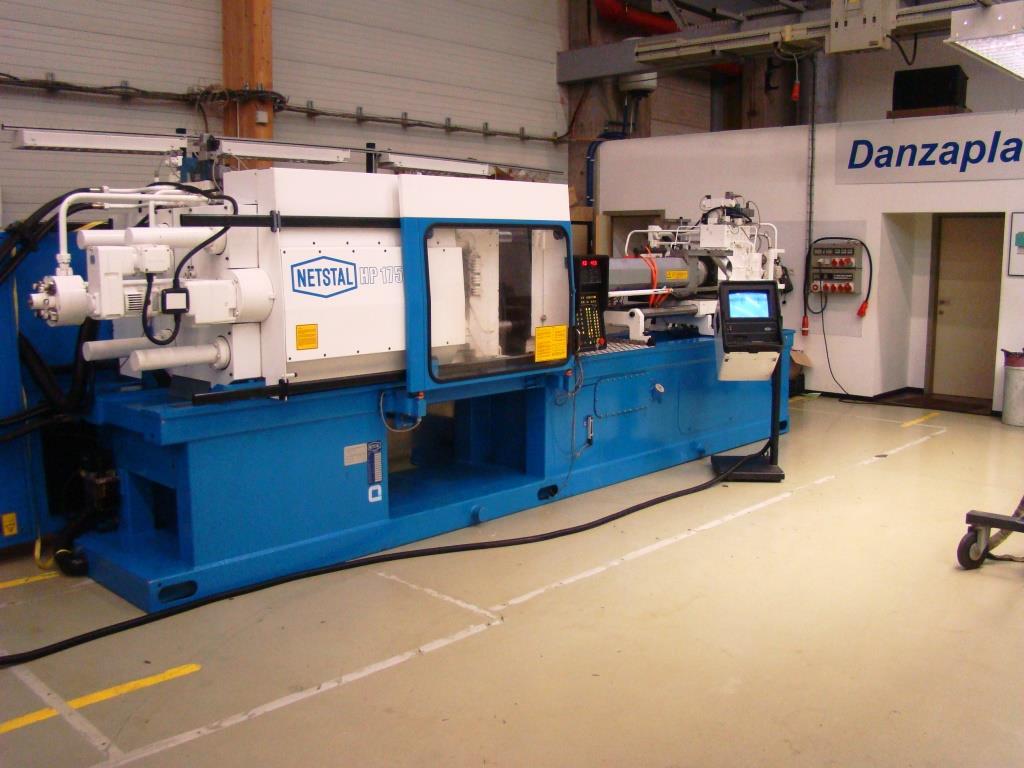

| Picture |
|---|
