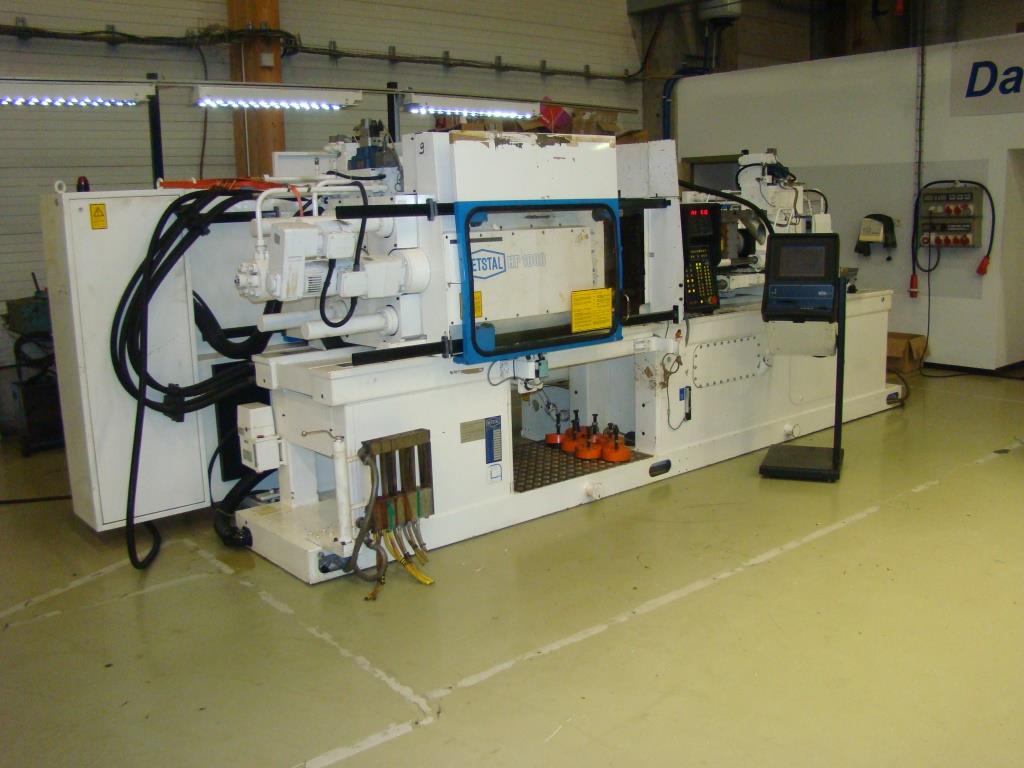

Netstal Sycap 1000 - 220
| Details |
| Manufacturer: | Netstal |
| Type of machine: | Sycap 1000 - 220 |
| Year: | 1993 |
| Delivery time: | Now |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | Sycap |
| Screen text: | |
| Operating hours: | h |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Mould opening force, max.: | kN |
| Size of mould platens (h x v): | 600 mm x 600 mm |
| Distance between tie bars (h x v): | 410 mm x 410 mm |
| Mould opening stroke: | 340 |
| Mould height min./ max: | 200 /500 mm |
| Max daylight: | 840 mm |
| Hydraulic ejector - stroke: | 120 mm |
| Ejector force forward/backward: | 33,4 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 37,5 mm |
| Ls/D ratio: | 20 |
| Inj. Speed | mm / sec. |
| Screw. Stroke | mm |
| Injection pressure: | 1565 bar |
| Stroke volume: | 141,3 ccm |
| Shot weight, PS: | 126,9 g |
| Injection rate: | cc / sec |
| Screw speed: | /min |
| Plasticising rate max.: | cc / sec. |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 10,3 kW |
| Adjustable barrel heating zones: | |
| Dry cycle number: | /min. |
| Dry cycle time: | 1.2 sec |
| Reservoir capacity: | 250 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,73 m x1,94 m x 2,04 m |
| Total machine weight: | 9.800 kg |
| Max. mould weight: | kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - 2x Corres - - Accumulator - Robot interface |
| Picture |
|---|
