Krauss Maffei KM 650 - 3500 - 1900 CZ WEN
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 650 - 3500 - 1900 CZ WEN |
| Year: | 2005 |
| Delivery time: | on request |
| Terms of Delivery: | EX-Works |
| Location: | D-52249 Eschweiler |
| Controlversion: | MC 4 |
| Screen text: | German |
| Operating hours: | 20000 h |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 6500 kN |
| Mould opening force, max.: | 348 kN |
| Travel force movable platen Opening: | 144 kN |
| Travel force movable platen Closing: | 169 kN |
| Size of mould platens (h x v): | 1520 mm x 1370 mm |
| Distance between tie bars (h x v): | 1000 mm x 930 mm |
| Mould opening stroke: | 1150 mm |
| Mould height min.: | 1600 mm |
| Max daylight: | 2750 mm |
| Injection unit | |
|---|---|
| Screw diameter: | 90 / 60 mm |
| Ls/D ratio: | 20 / 23 |
| Injection pressure: | 1742 / 2420 bar |
| Stroke volume: | 1953 / 769 ccm |
| Shot weight, PS: | 1777 / 700 g |
| Injection rate: | 649 / 387 ccm/s |
| Screw speed: | 189 / 285 1/min |
| Plasticising rate max.: | 130 / 70 g/s |
| Nozzle pressure: | 173 / 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 90 kW |
| Installed heating capacity: | 44 kW |
| Adjustable barrel heating zones: | 7 |
| Reservoir capacity: | 1300 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 12,5 m x 2,86 m x 2,80 m |
| Total machine weight: | 45000 kg |
| Max. mould weight: | 11400 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - 2 x air
valves - increased oil cooling - 6x core pulls - 20 x hot runner controller - Robot interface Euromap 67 |
|

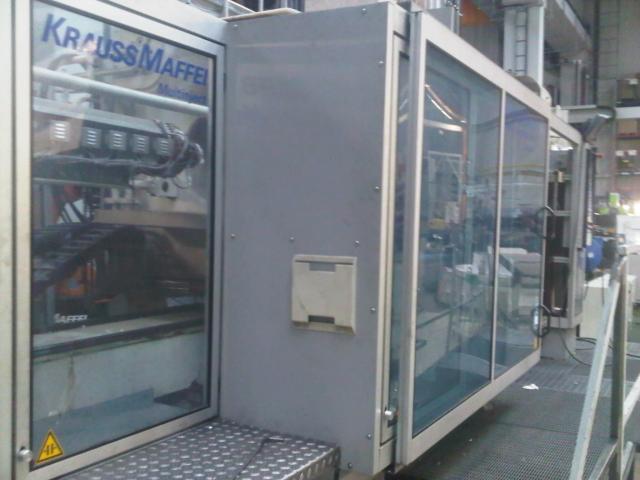

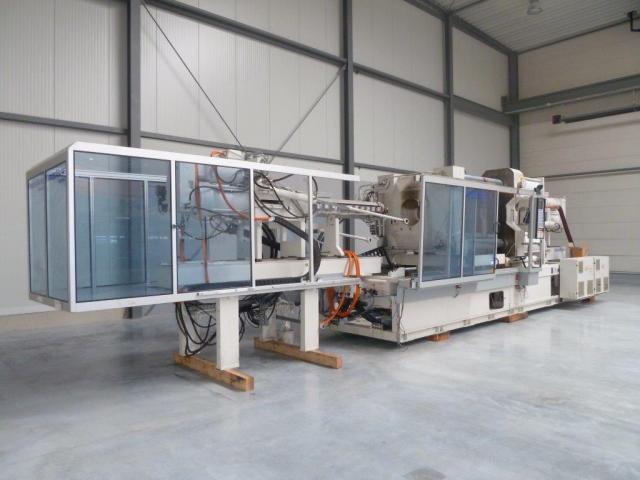

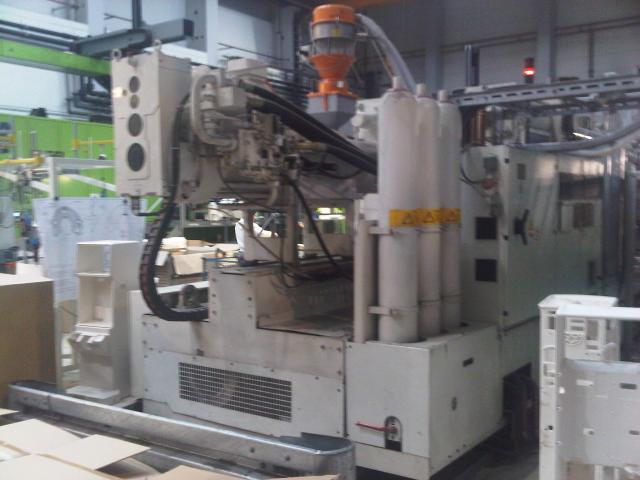

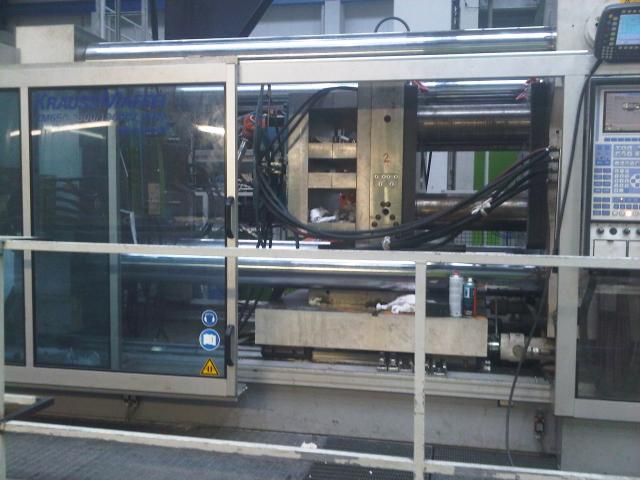

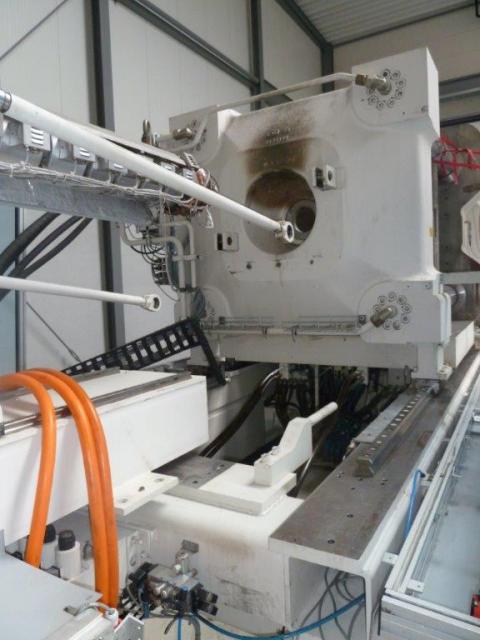

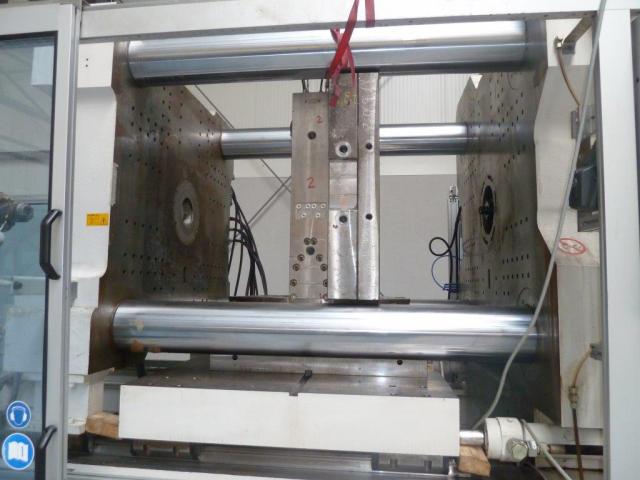

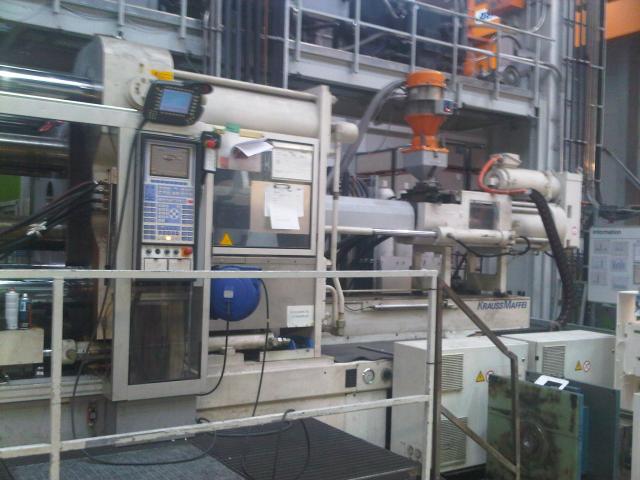

| Picture |
|---|
