Krauss Maffei KM 500 - 2300 B
| Details |
| Stock no.: | 10465 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 500 - 2300 B |
| Year: | 1986 |
| Delivery time: | Immediately |
| Terms of Delivery: | EX - Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC3 |
| Screen text: | German |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 5000 kN |
| Mould opening force, max.: | 279 kN |
| Travel force movable platen Opening: | 121 kN |
| Travel force movable platen Closing: | 102 kN |
| Size of mould platens (h x v): | 1340 mm x 1200 mm |
| Distance between tie bars (h x v): | 900 mm x 800 mm |
| Mould opening stroke: | 1170 mm |
| Mould height min.: | 480 mm |
| Max daylight: | 1650 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 94 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 70 mm |
| Injection pressure: | 2123 bar |
| Stroke volume: | 1096 ccm |
| Shot weight, PS: | 986 g |
| Injection rate: | 770 ccm/s |
| Screw speed: | 277 1/min |
| Plasticising rate max.: | 105 g/s |
| Nozzle pressure: | 172,5 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 90 kW |
| Installed heating capacity: | 35,3 kW |
| Adjustable barrel heating zones: | 7 |
| Dry cycle number: | 1000 1/h |
| Reservoir capacity: | 2280 ltr. |
| Dimensions und weights | |
|---|---|
| Total machine weight: | 31500 kg |
| Accessories | |
|---|---|
| - Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - 3 x core pulls - Air valve - Robot interface |

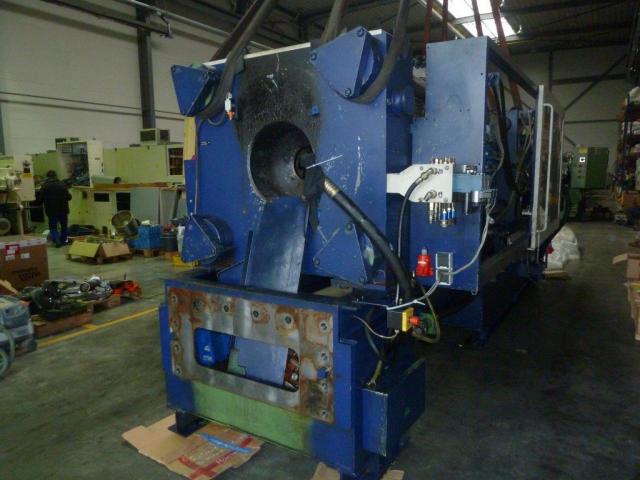

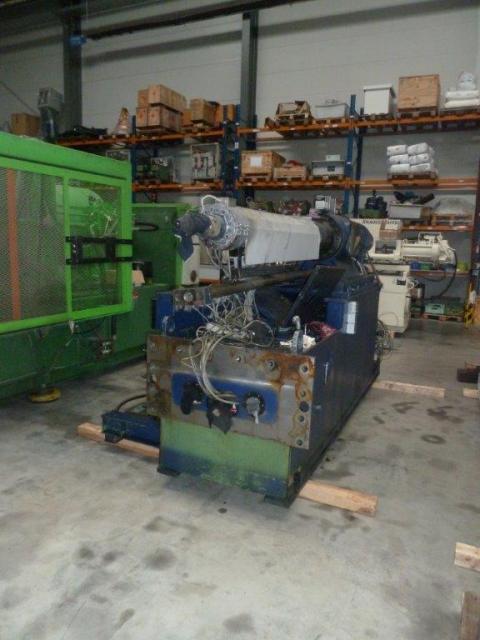

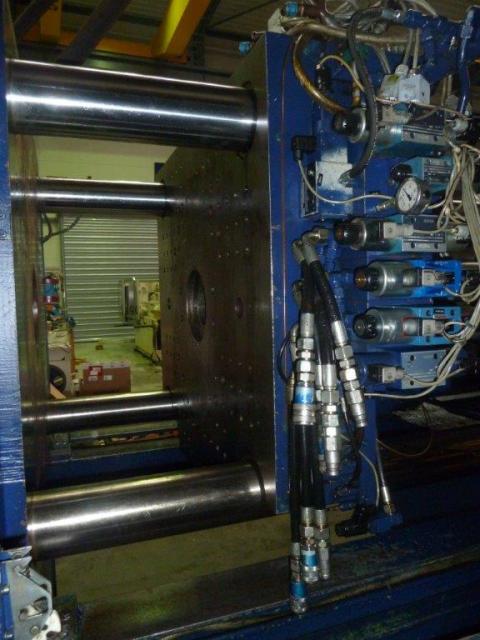

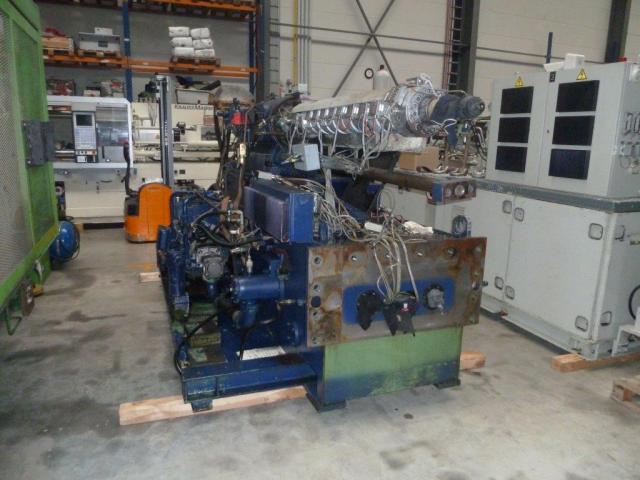

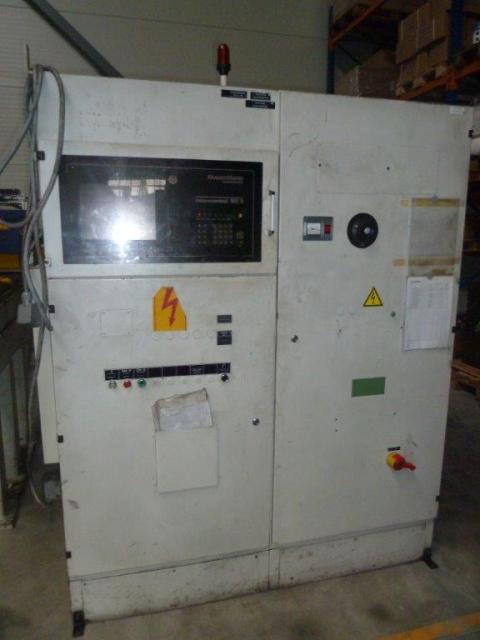

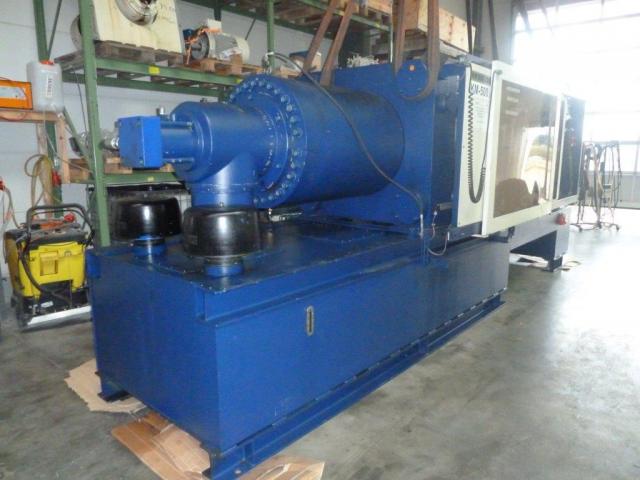

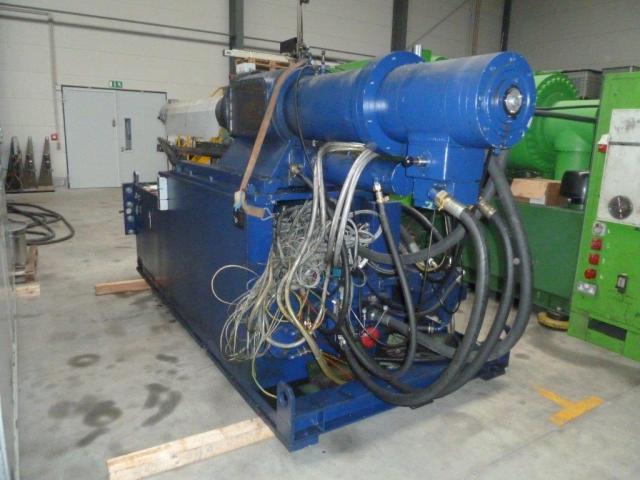

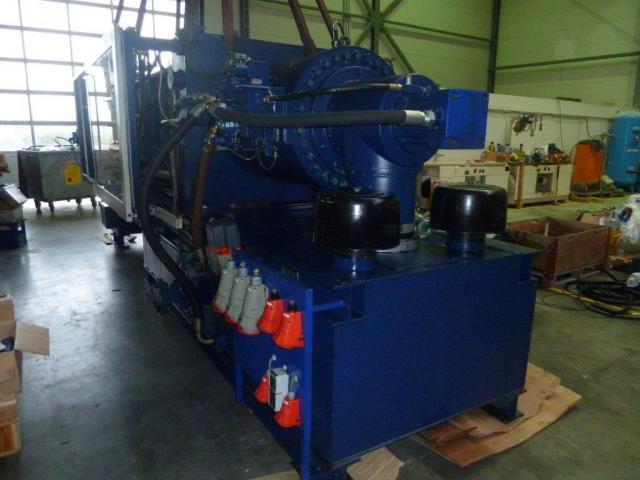

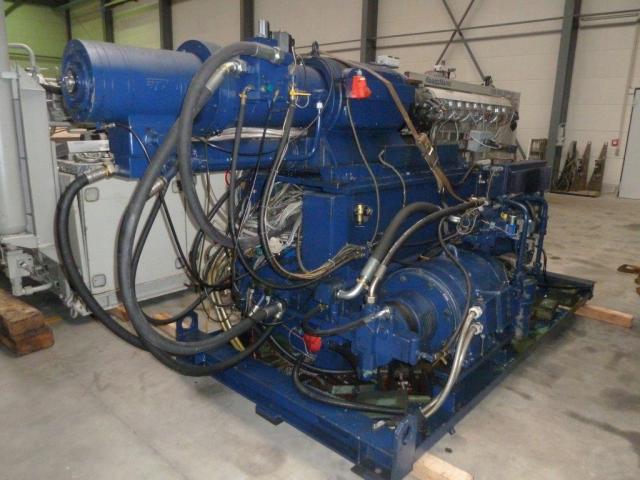

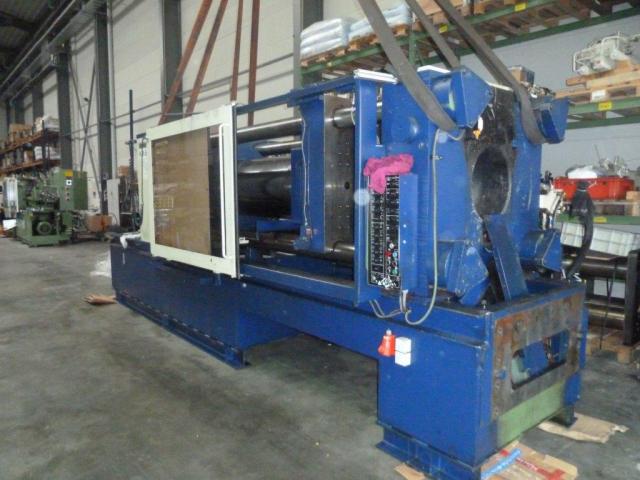

| Picture |
|---|
