Krauss Maffei KM 40 - 220 C Win
| Details |
| Stock no.: | 10483 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 40 - 220 C WIN |
| Year: | 2000 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 4 |
| Screen text: | German |
| Operating hours: | 52000 h |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 400 kN |
| Mould opening force, max.: | 40 kN |
| Travel force movable platen Opening: | 22 kN |
| Travel force movable platen Closing: | 15 kN |
| Size of mould platens (h x v): | 540 mm x 540 mm |
| Distance between tie bars (h x v): | 321 mm x 321 mm |
| Mould opening stroke: | 350 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 550 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 22/10 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| Ls/D ratio: | 23 |
| Injection pressure: | 2025 bar |
| Stroke volume: | 106 ccm |
| Shot weight, PS: | 96,5 g |
| Injection rate: | 91 ccm/s |
| Screw speed: | 281 1/min |
| Plasticising rate max.: | 10,8 g/s |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 8 kW |
| Adjustable barrel heating zones: | 5 |
| Dry cycle number: | 3050 1/h |
| Reservoir capacity: | 150 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,40 m x 1,30 m x 1,82 m |
| Total machine weight: | 2300 kg |
| Max. mould weight: | 400 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - 4-fold waterbattery - Hopper |
| Additional information | |
|---|---|
| - 2 x core pull - Robot interface as per Euromap 12 - 1 x Air valves - Increased oil cooling - Interface for color mix |
|

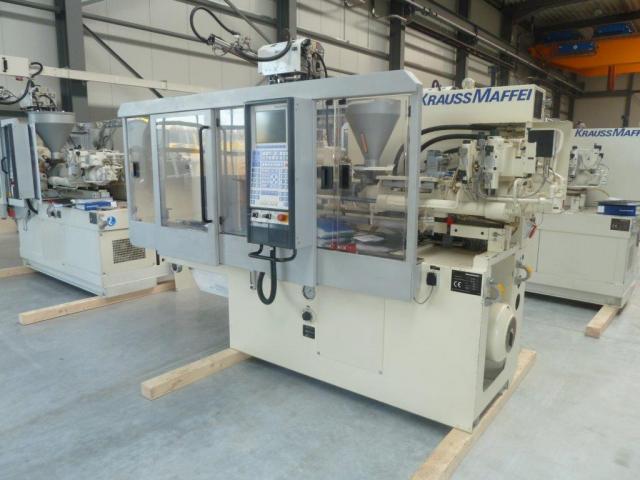

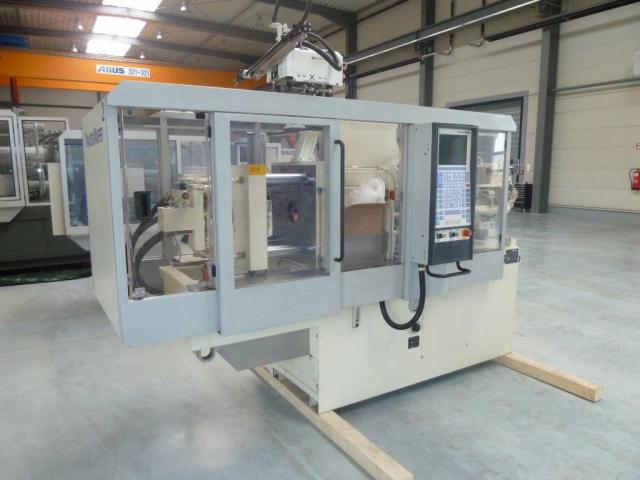

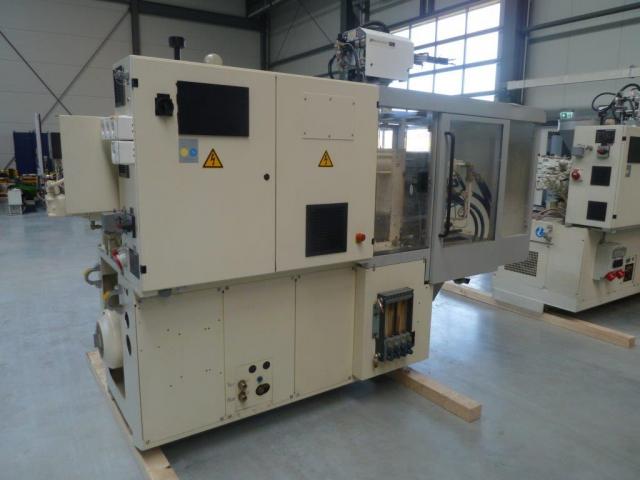

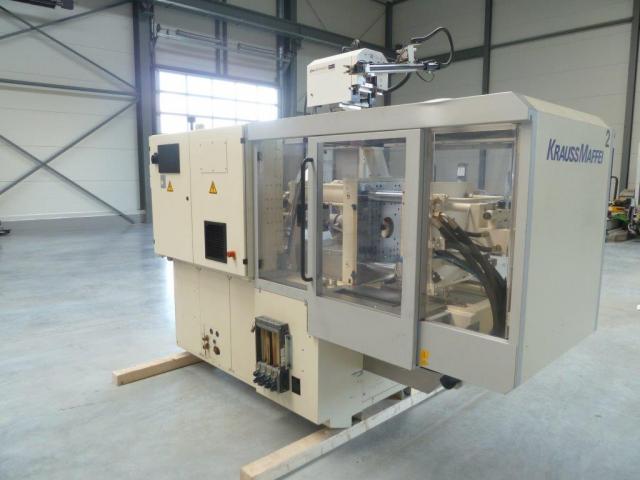

| Picture |
|---|
