Krauss Maffei KM 30 - 125 C Win
| Details |
| Stock no.: | 10482 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 30 - 125 C WIN |
| Year: | 2001 |
| Delivery time: | Immediately |
| Terms of Delivery: | EX Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 4 |
| Screen text: | German |
| Operating hours: | 52000 h |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 300 kN |
| Mould opening force, max.: | 40 kN |
| Travel force movable platen Opening: | 22 kN |
| Travel force movable platen Closing: | 15 kN |
| Size of mould platens (h x v): | 540 mm x 540 mm |
| Distance between tie bars (h x v): | 321 mm x 321 mm |
| Mould opening stroke: | 350 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 550 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 22/10 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | 23 |
| Injection pressure: | 2013 bar |
| Stroke volume: | 61,4 ccm |
| Shot weight, PS: | 55,9 g |
| Injection rate: | 93 ccm/s |
| Screw speed: | 367/465 1/min |
| Plasticising rate max.: | 10,9 g/s |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 7 kW |
| Dry cycle number: | 3050 1/h |
| Reservoir capacity: | 150 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,19 m x 1,24 m x 1,82 m |
| Total machine weight: | 2300 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - 4-fold water battery - Hopper |
| Additional information | |
|---|---|
| - 1 x Air valve - 1 x Core pull - Interface for color mixing - Robot interface as per Euromap 12 |
|

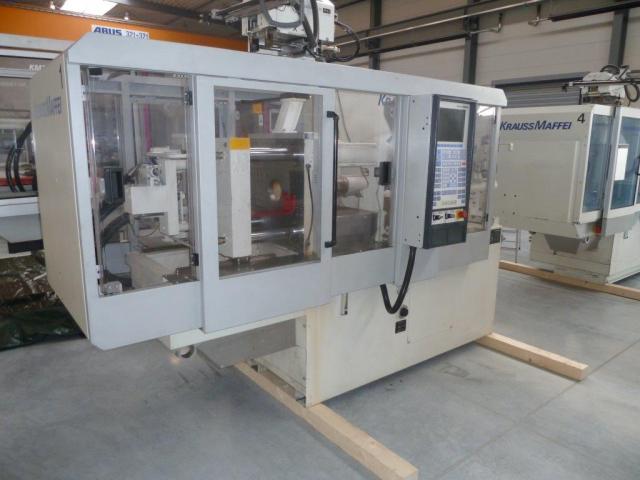

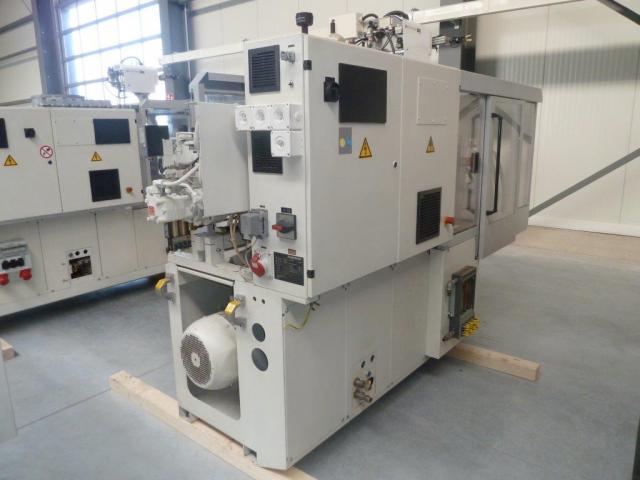

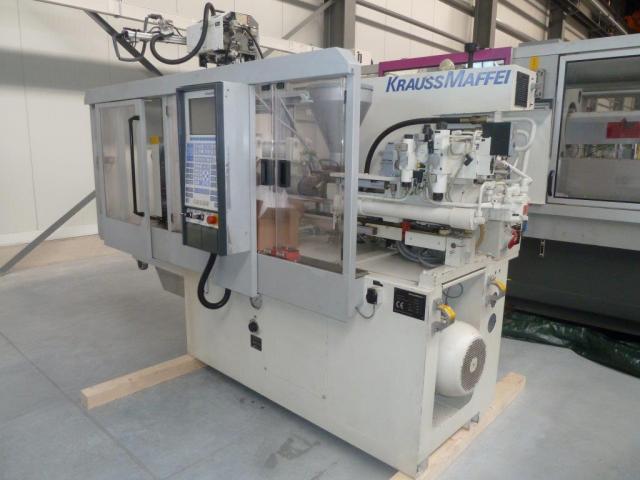

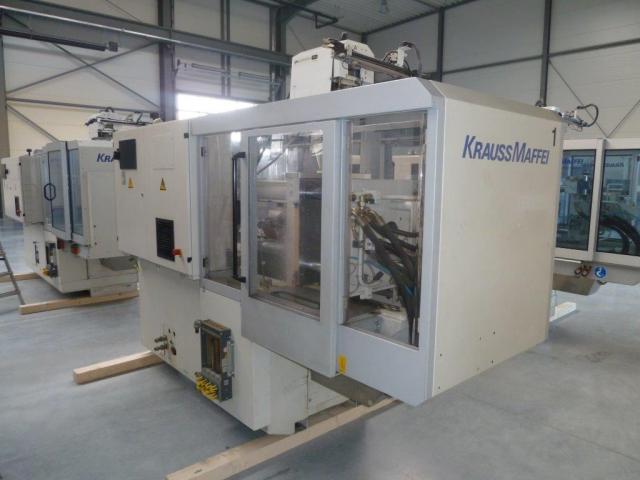

| Picture |
|---|
