Krauss Maffei KM 250 - 1650 B
| Details |
| Stock no.: | 10451 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 250 - 1650 B |
| Year: | 1989 |
| Delivery time: | Immediatey |
| Terms of Delivery: | EX Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 3 |
| Screen text: | German |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2500 kN |
| Size of mould platens (h x v): | 900 mm x 830 mm |
| Distance between tie bars (h x v): | 630 mm x 560 mm |
| Mould opening stroke: | 800 mm |
| Mould height min.: | 210 mm |
| Max daylight: | 1010 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 60 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 60 mm |
| Injection pressure: | 2151 bar |
| Stroke volume: | 769 ccm |
| Shot weight, PS: | 692 g |
| Injection rate: | 274 ccm/s |
| Screw speed: | 218 1/min |
| Plasticising rate max.: | 55 g/s |
| Nozzle pressure: | 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 55 kW |
| Installed heating capacity: | 28,6 kW |
| Adjustable barrel heating zones: | 6 |
| Dry cycle number: | 1400 1/h |
| Reservoir capacity: | 1110 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,7 m x 1,74 m x 2,22 m |
| Total machine weight: | 12100 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - 1 x Corr - 1 x Air valve - Robot Interface |

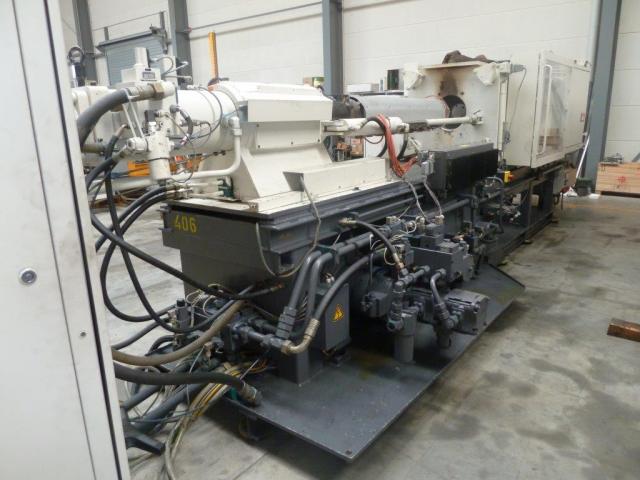

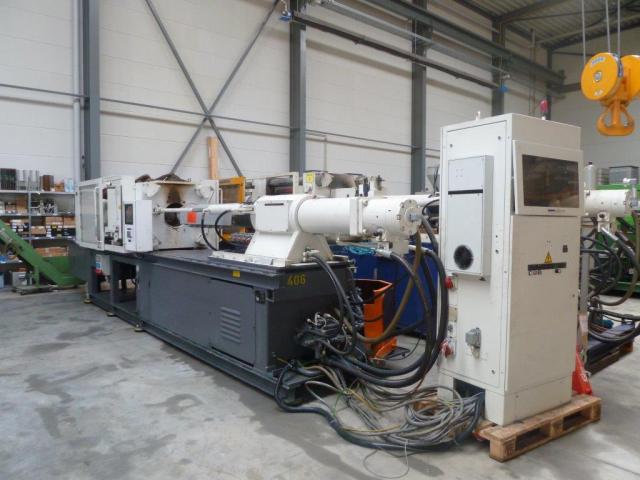

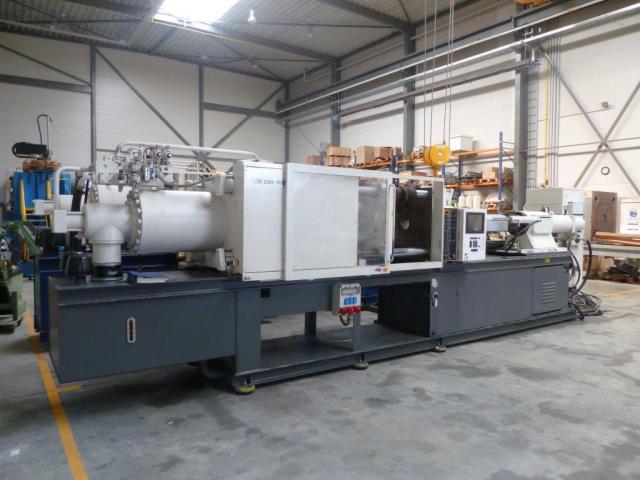

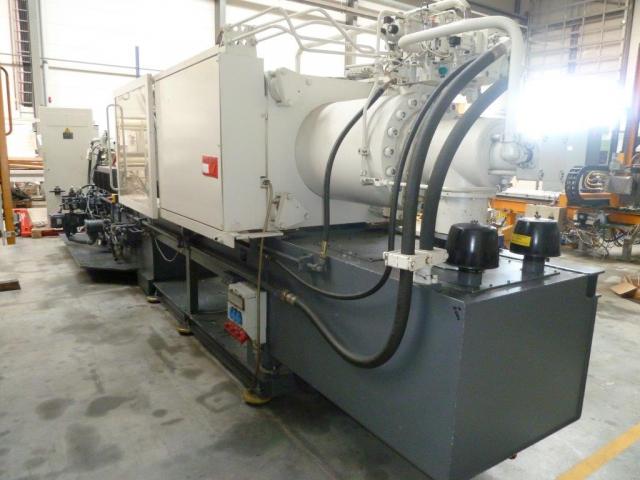

| Picture |
|---|
