Krauss Maffei KM 200 - 700 C2
| Details |
| Stock no.: | 10474 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 200 - 700 C2 |
| Year: | 2000 |
| Delivery time: | on request |
| Terms of Delivery: | EX Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 4 |
| Screen text: | German |
| Operating hours: | 53000 h |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2000 kN |
| Mould opening force, max.: | 101 kN |
| Travel force movable platen Opening: | 50 kN |
| Travel force movable platen Closing: | 42 kN |
| Size of mould platens (h x v): | 915 mm x 915 mm |
| Distance between tie bars (h x v): | 560 mm x 560 mm |
| Mould opening stroke: | 700 mm |
| Mould height min.: | 350 mm |
| Max daylight: | 1050 mm |
| Hydraulic ejector - stroke: | 200 mm |
| Ejector force forward/backward: | 58/28 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 2336 bar |
| Stroke volume: | 305 ccm |
| Shot weight, PS: | 278 g |
| Injection rate: | 232 ccm/s |
| Screw speed: | 392 1/min |
| Plasticising rate max.: | 43 g/s |
| Nozzle pressure: | 84 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 37 kW |
| Installed heating capacity: | 16 kW |
| Adjustable barrel heating zones: | 5 |
| Dry cycle number: | 1300 1/h |
| Reservoir capacity: | 525 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,16 m x 1,90 m x 2,24 m |
| Total machine weight: | 8000 kg |
| Max. mould weight: | 2535 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - 1 x Air valve - Increased oil cooling - 2 x Core pull - 6-fold hot runner - Robot interface as per Euromap 12 |

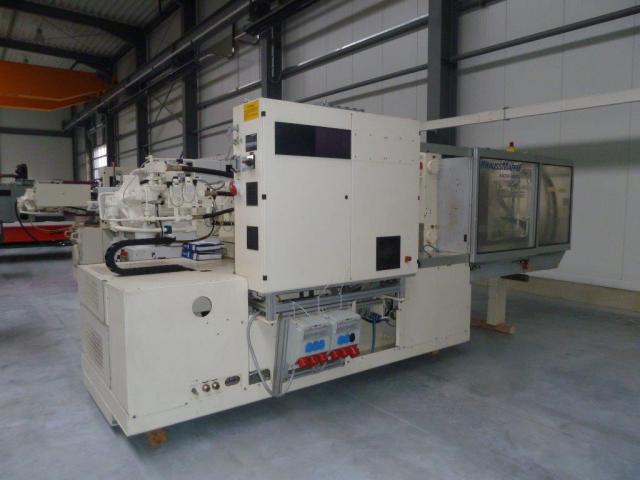

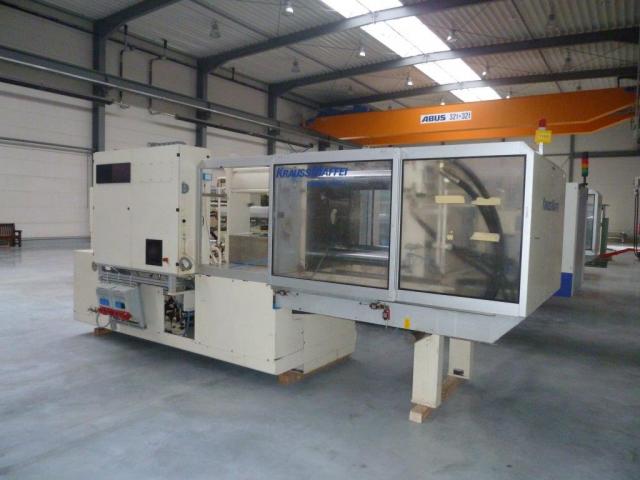

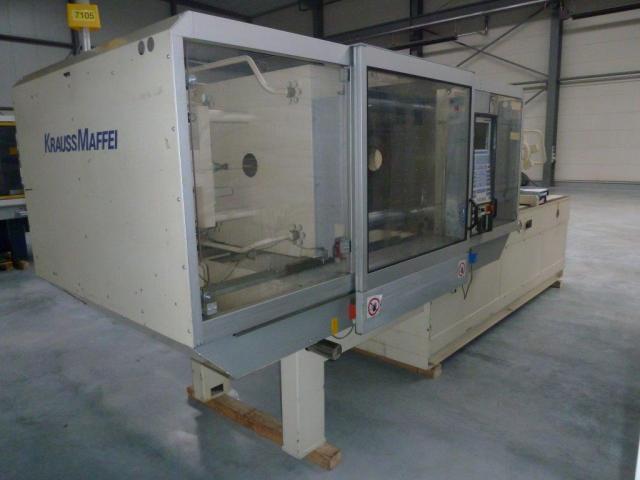

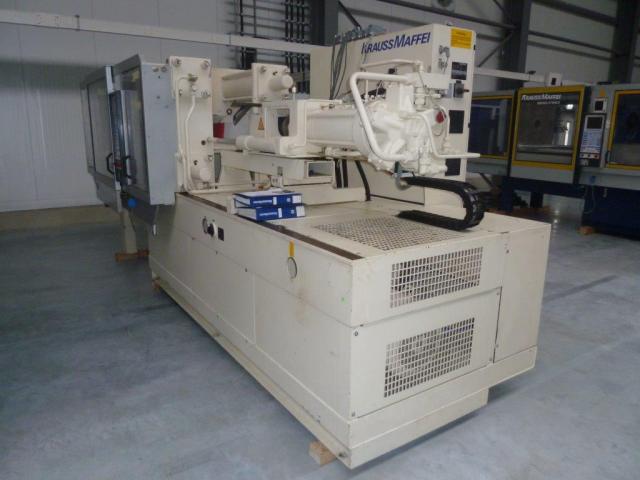

| Picture |
|---|
