Krauss Maffei KM 1000 - 8000 MC
| Details |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 1000 - 8000 MC |
| Year: | 1998 |
| Delivery time: | Immediately |
| Terms of Delivery: | EX Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 4 |
| Screen text: | German |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 10000 kN |
| Mould opening force, max.: | 670 kN |
| Travel force movable platen Opening: | 125 kN |
| Travel force movable platen Closing: | 117 kN |
| Size of mould platens (h x v): | 2000 mm x 1700 mm |
| Distance between tie bars (h x v): | 1400 mm x 1120 mm |
| Mould opening stroke: | 1700 mm |
| Mould height min.: | 700 mm |
| Mould height max.: | 1000 mm |
| Max daylight: | 2000 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 226/95 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 105 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1987 bar |
| Stroke volume: | 4026 ccm |
| Shot weight, PS: | 3664 g |
| Injection rate: | 929 ccm/s |
| Screw speed: | 92 1/min |
| Plasticising rate max.: | 104 g/s |
| Nozzle pressure: | 246 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 132 kW |
| Installed heating capacity: | 70 kW |
| Adjustable barrel heating zones: | 7 |
| Dry cycle number: | 700 1/h |
| Reservoir capacity: | 2270 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 10,93 m x 3,30 m x 2,50 m |
| Total machine weight: | 68000 kg |
| Accessories | |
|---|---|
|
- Anti vibration pads - 7-fold water battery - 12-fold water battery |
| Additional information | |
|---|---|
|
- 5 x core pulls on movable
plate - Robot interface as per Euromap 12 - 12 x hydr. sequentional valves |

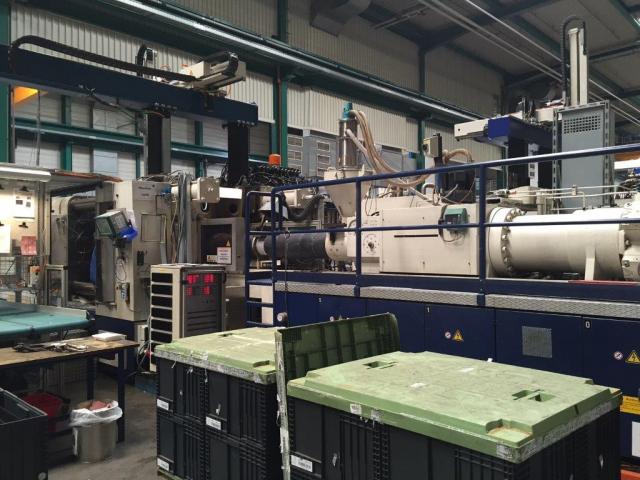

| Picture |
|---|
