Krauss Maffei KM 800 - 5700 MC
| Details |
| Stock no.: | 10507 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 800 - 5700 MC |
| Year: | 1998 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 4 |
| Screen text: | German |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 8000 kN |
| Mould opening force, max.: | 356 kN |
| Travel force movable platen Opening: | 106 kN |
| Travel force movable platen Closing: | 82 kN |
| Size of mould platens (h x v): | 1610 mm x 1250 mm |
| Distance between tie bars (h x v): | 1120 mm x 1000 mm |
| Mould opening stroke: | 1400 mm |
| Mould height min.: | 600 mm |
| Mould height max.: | 1100 mm |
| Max daylight: | 2000 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 226/95 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 95 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1742 bar |
| Stroke volume: | 2956 ccm |
| Shot weight, PS: | 2690 g |
| Screw speed: | 165 1/min |
| Plasticising rate max.: | 142 g/s |
| Nozzle pressure: | 246 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 110 kW |
| Installed heating capacity: | 59 kW |
| Adjustable barrel heating zones: | 7 |
| Dry cycle number: | 600 1/h |
| Reservoir capacity: | 3450 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 12,0 m x 2,90 m x 2,55 m |
| Total machine weight: | 50000 kg |
| Dimension clamping unit: | 5,30 m x 2,90 m x 2,50 m |
| Clamping unit - weight: | 32000 kg |
| Dimension injection unit: | 6,20 m x 2,80 m x 2,55 m |
| Injection unit - weight: | 18000 kg |
| Max. mould weight: | 12200 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - 5 x core pulls - 1 x air valve - Robot interface as per Euromap 12 |
|

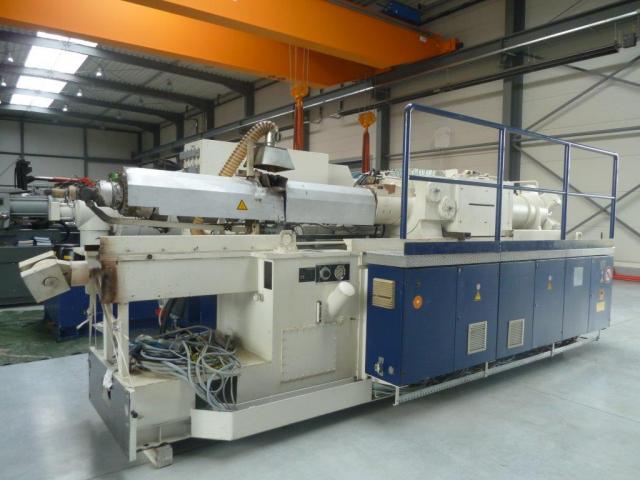

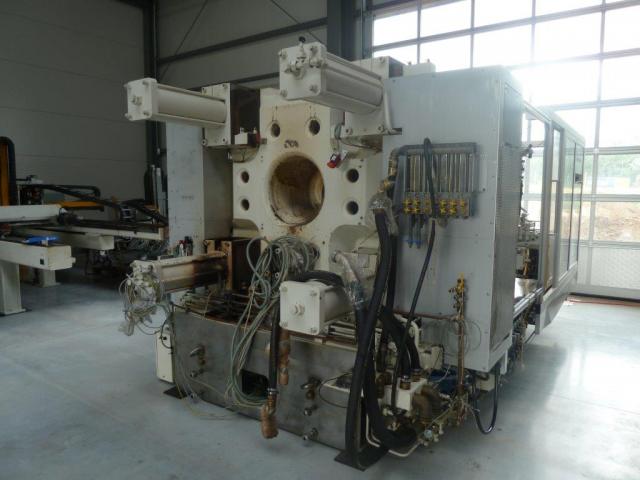

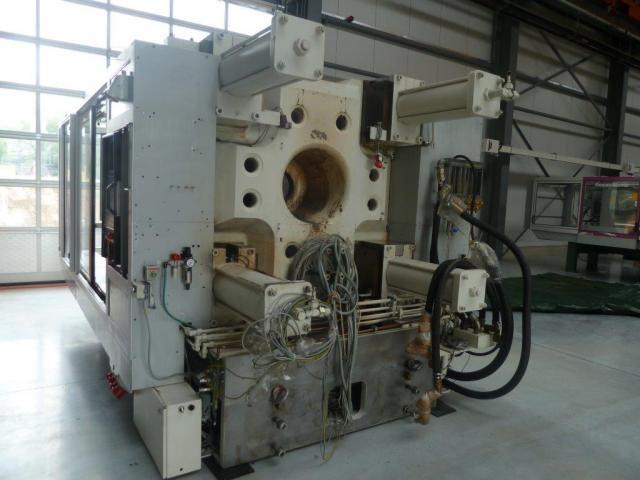

| Picture |
|---|
