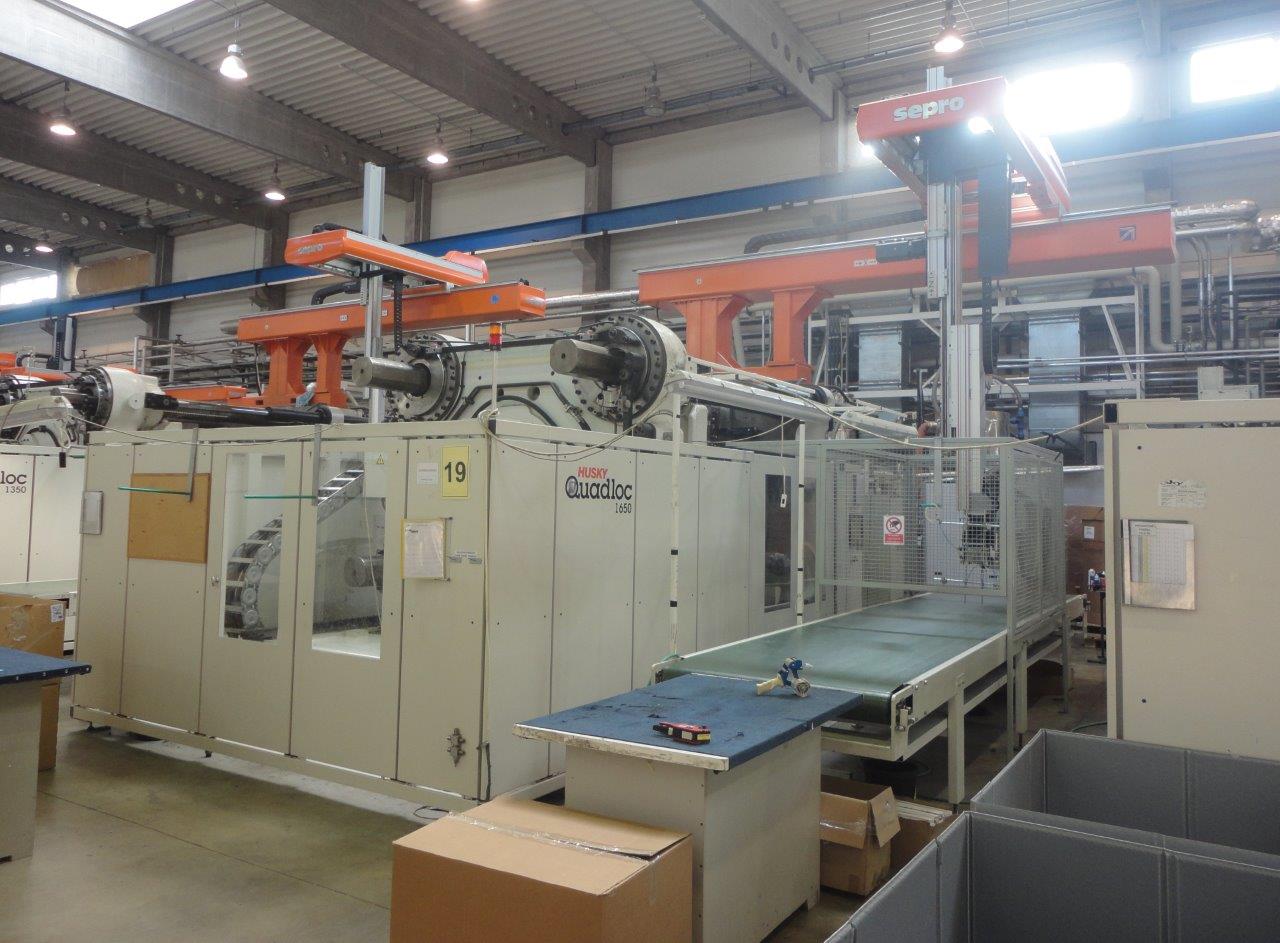

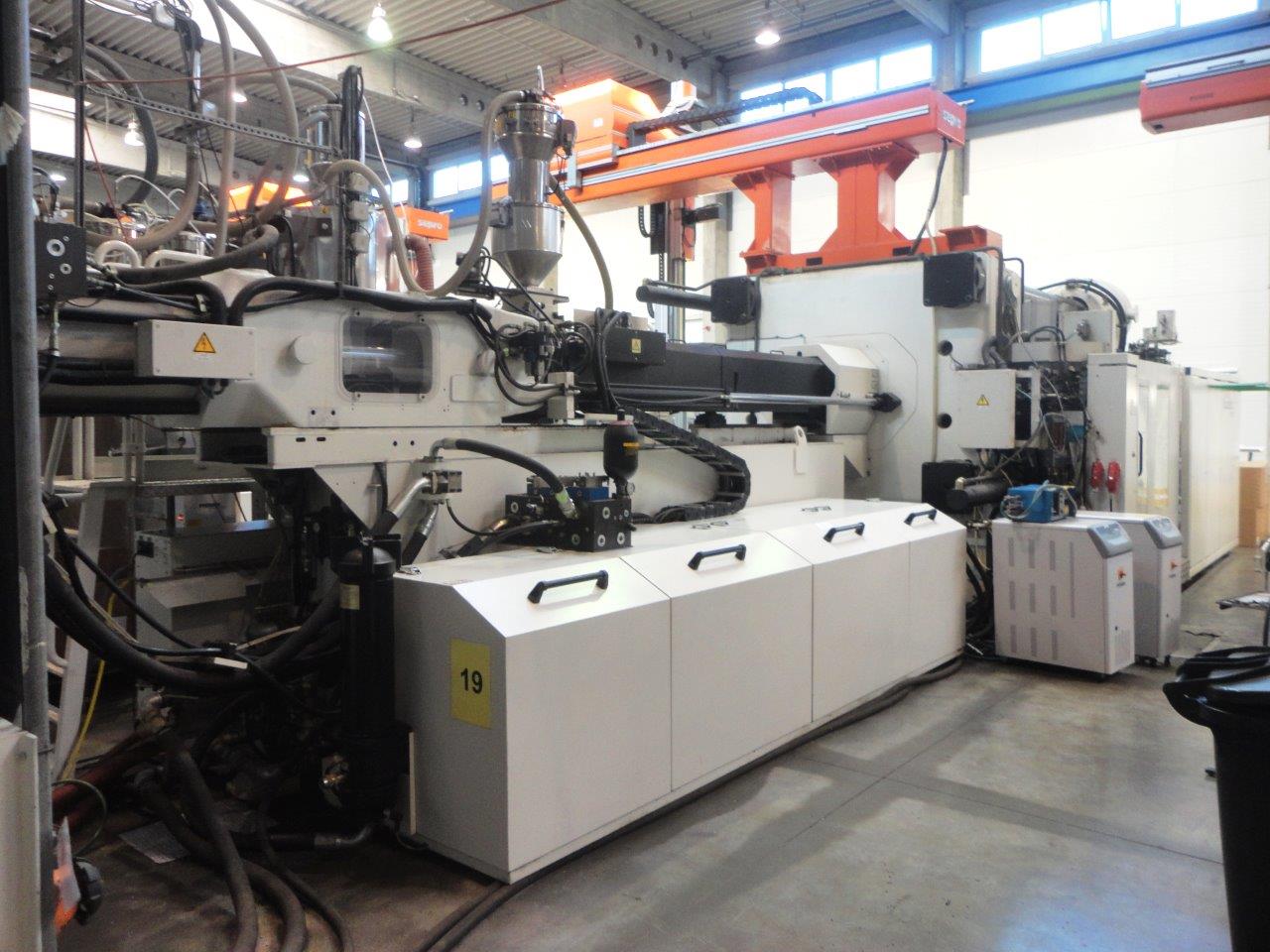

Husky Quadloc 1650 RS 135/115
| Details |
| Manufacturer: | Husky |
| Type of machine: | Q 1650 RS 135/115 |
| Year: | 2006 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | |
| Controlversion: | |
| Screen text: | English |
| Operating hours: | 25.585 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 16.500 kN |
| Size of mould platens (h x v): | 2520 mm x 2120 mm |
| Distance between tie bars (h x v): | 1800 mm x 1400 mm |
| Mould opening stroke: | 2500 mm |
| Daylight | 3400 mm |
| Shut Height min. | 900 mm |
| Shut Height max | 1600 mm |
| Ejector Stroke | 300 mm |
| Ejector force | 285 Kn |
| Injection unit RS 135 / 115 | |
|---|---|
| Working Capacaty | 13800 |
| Screw diameter: | 115 mm |
| Ls/D ratio: | 25:1 |
| Injection pressure: | 2230 bar |
| Injection Stroke | 600 mm |
| Stroke volume: | 6.232 ccm |
| Shot weight, PS: | 5.608 g |
| Screw Torque | 9950 Nm |
| Screw Speed | 108 rmp |
| Injection Rate at 80 % max. | 1015 cc/sec. |
| Operation Mode | Sequential |
| Electric and Hydraulic Equipment | |
|---|---|
| Reservoir capacity: | ltr. |
| Dimensions und weights | |
|---|---|
| Total machine weight: | kg |
| Clamping unit - weight: | kg |
| Injection unit - weight: | kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information |
|---|
- High Torque Screw
- Robot Interface ( Euromap 67 )
- 2 Hydraulic Function 100 l/min. open center
- 5 Valve Gate
- Hotrunner controller 6 Zones ( 16 A)
- Interface Gas Assist
- Robot Sepro PIP 3061 BZ Visual
- X 4.000 mm
- Y 1.500 mm.
- Z 2.800 mm ( Telescopic )
- C 90 degrees ( Pneumatic )
Payload 55 Kg.
| Picture |
|---|
