Husky Quadloc 1350 RS 115/95
| tails |
| Manufacturer: | Husky |
| Type of machine: | Q 1350 RS 115/95 |
| Year: | 2008 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | |
| Controlversion: | |
| Screen text: | English |
| Operating hours: | 12.836 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 13.500 kN |
| Size of mould platens (h x v): | 2360 mm x 2010 mm |
| Distance between tie bars (h x v): | 1700 mm x 1350 mm |
| Mould opening stroke: | 2300 mm |
| Daylight | 3100 mm |
| Shut Height min. | 800 mm |
| Shut Height max | 1400 mm |
| Ejector Stroke | 300 mm |
| Ejector force | 285 Kn |
| Injection unit RS 115 / 96 | |
|---|---|
| Working Capacaty | 7900 |
| Screw diameter: | 95 mm |
| Ls/D ratio: | 26 4:1 |
| Injection pressure: | 2230 bar |
| Injection Stroke | 500 mm |
| Stroke volume: | 3.544 ccm |
| Shot weight, PS: | 3.189 g |
| Screw Torque | 5900 Nm |
| Screw Speed | 131 rmp |
| Injection Rate | 1013 cc/sec. |
| Operation Mode | Sequential |
| Electric and Hydraulic Equipment | |
|---|---|
| Reservoir capacity: | ltr. |
| Dimensions und weights | |
|---|---|
| Total machine weight: | kg |
| Clamping unit - weight: | kg |
| Injection unit - weight: | kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information |
|---|
- High Torque Screw
- Robot Interface ( Euromap 67 )
- 1 Hydraulic Function 100 l/min. open center
- Robot Sepro SR 4050 S3 TE
- X 4.000 mm
- Y 1.300 mm.
- Z 2.400 mm ( Telescopic )
- C 90 degrees ( Pneumatic )
Payload 35 Kg.

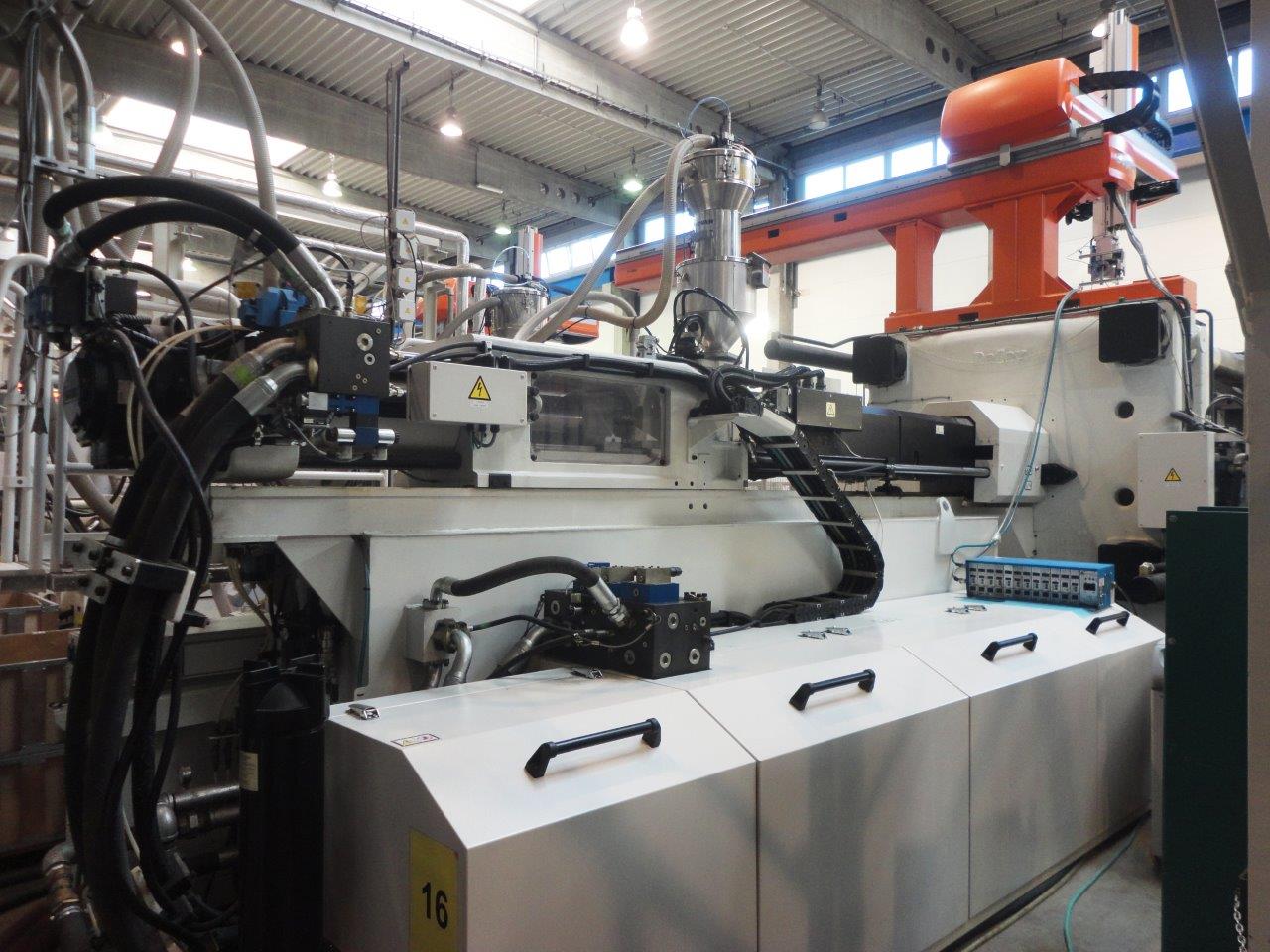

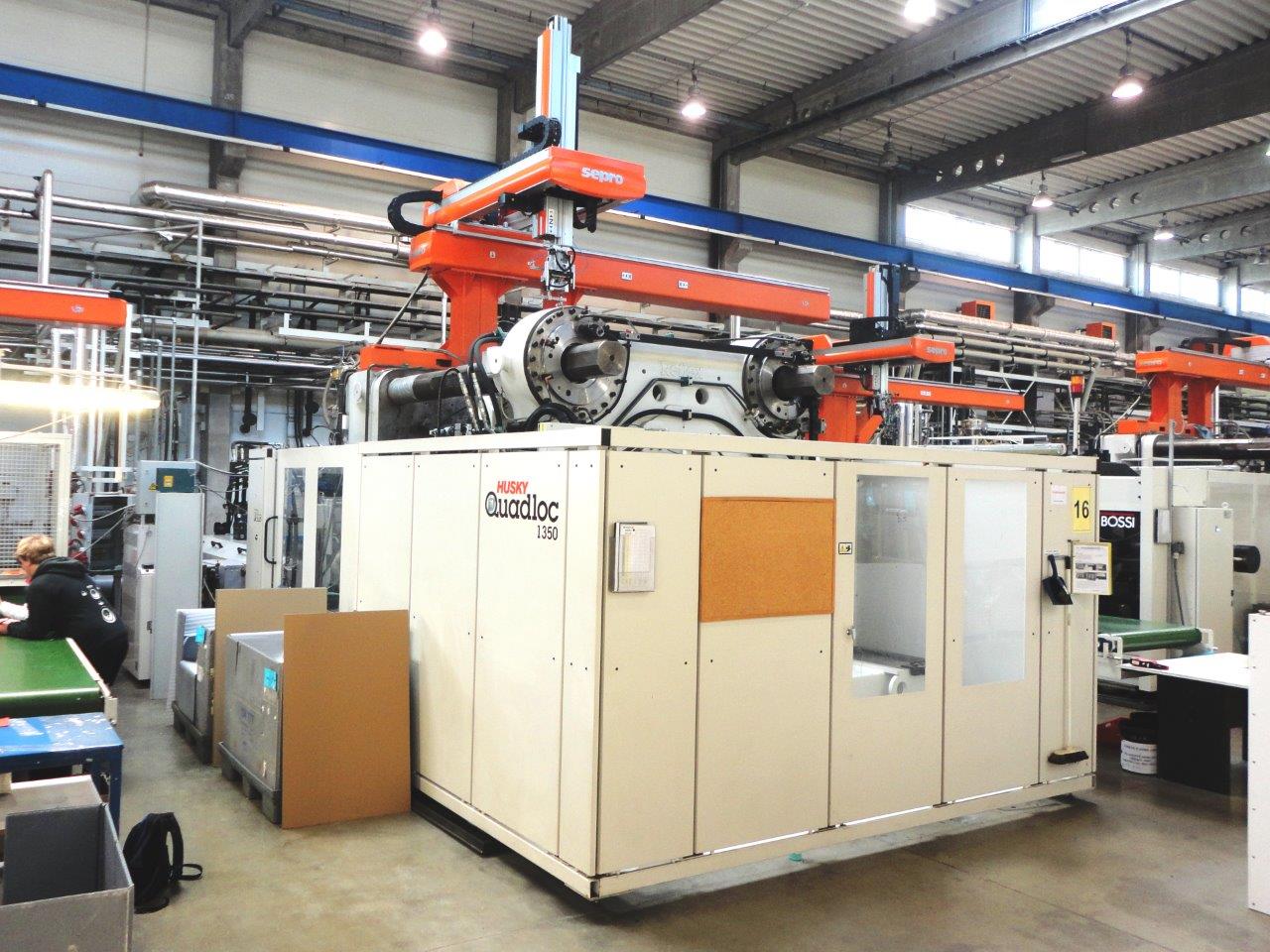

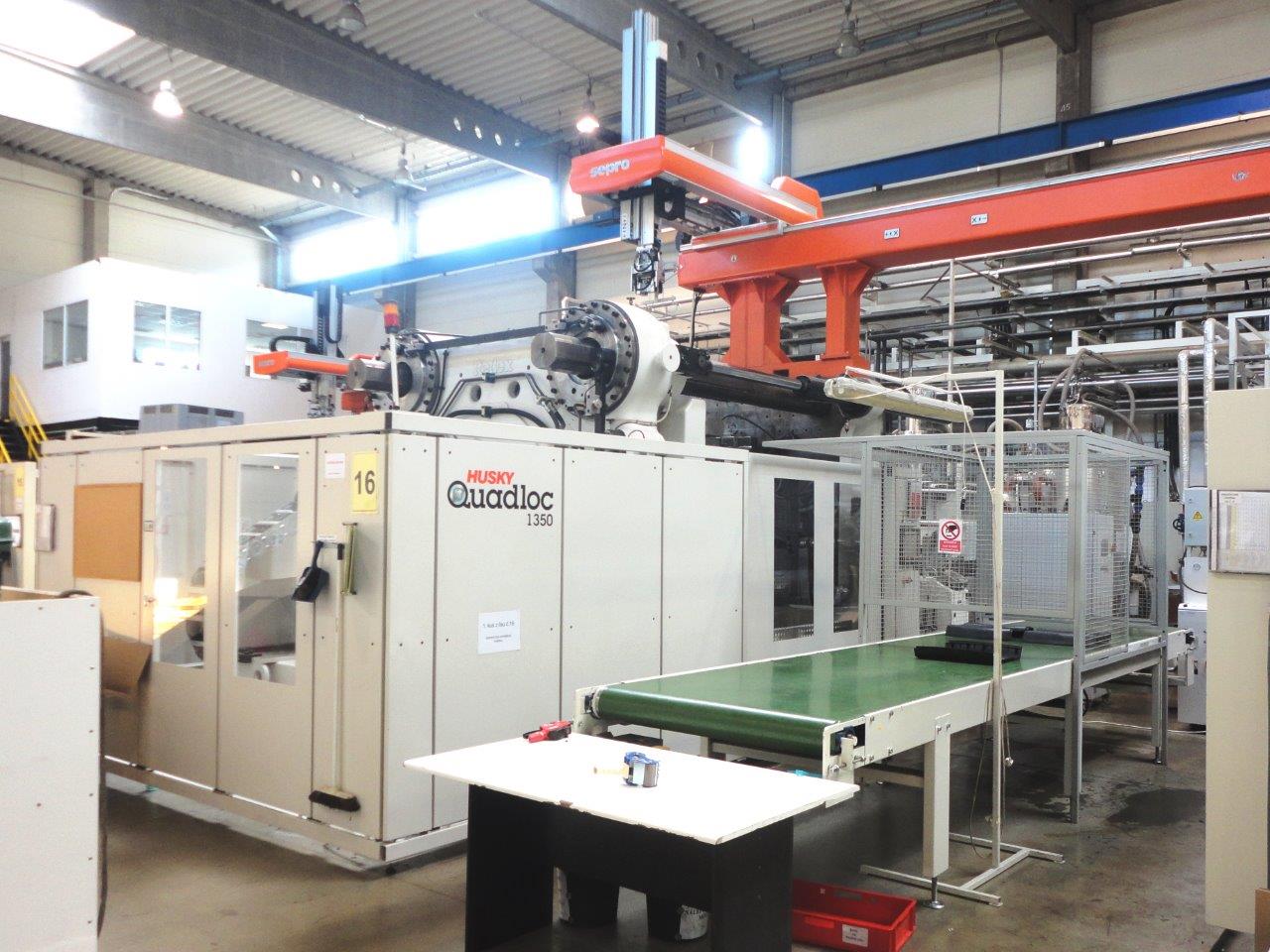

| Picture |
|---|
