Engel ES 650 - 125 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 650 / 125 HL |
| Year: | 1997 |
| Delivery time: | Now |
| Terms of Delivery: | EX Works |
| Location: | Awans - Belgium |
| Controlversion: | EC 100 |
| Screen text: | |
| Operating hours: | 18.000hrs |
| Dry cycle | sec. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.250 kN |
| Size of mould platens (h x v): | 740 mm x 520 mm |
| Tie bar space | HL |
| Mould opening stroke: | 600 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 850 mm |
| Hydraulic ejector - stroke: | 130 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| L/D | 20 |
| Screw storke | 200 mm |
| Injection pressure: | 1930 bar |
| Stroke volume: | 251ccm |
| Shot weight, PS: | 226 g |
| Injection rate: | 142 ccm/s |
| Screw speed: | 290 1/min |
| Nozzle pressure: | 67 KN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 12,3 kW |
| Adjustable barrel heating zones: | 4 + 1 |
| Reservoir capacity: | 460 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,17 m x 1,68 m x 2,15 m |
| Total machine weight: | 9.000 kg |
| Accessories | |
|---|---|
| - 1 x Core - Robot interface |
| Additional information | |
|---|---|
| - |

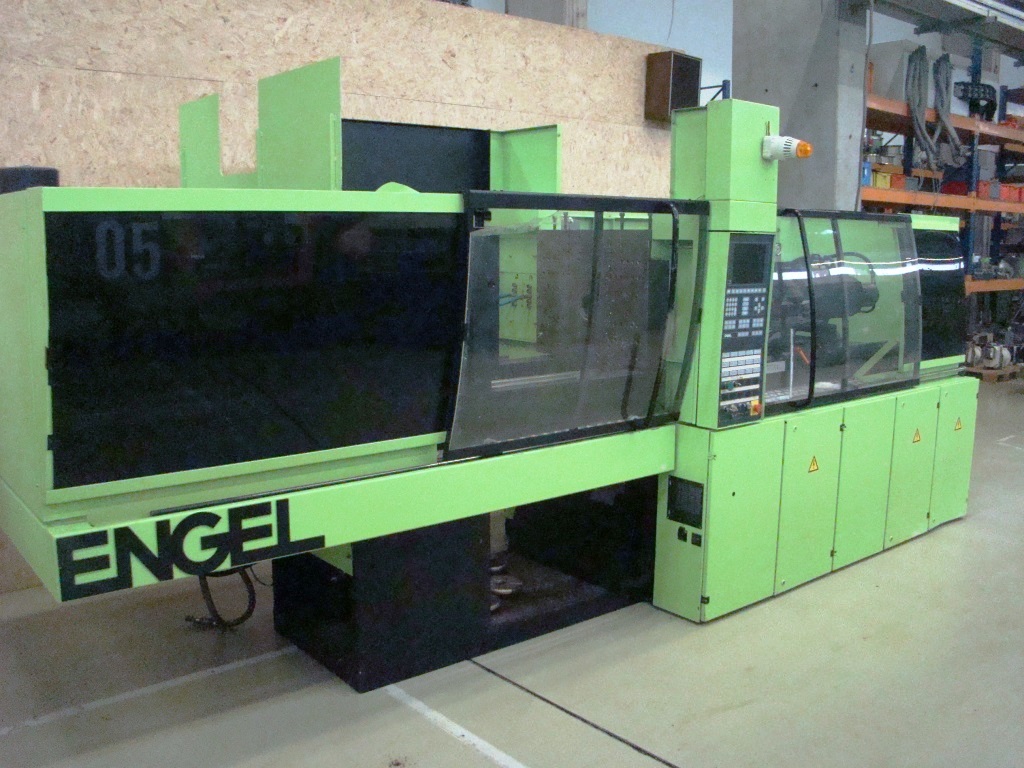

| Picture |
|---|
