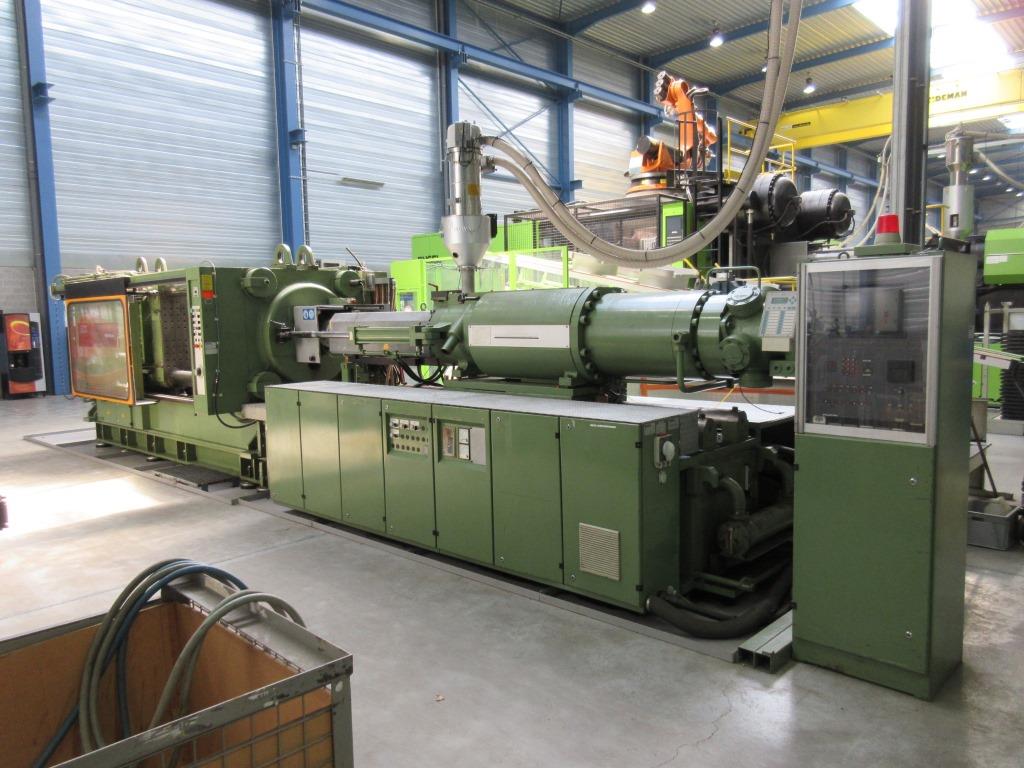

Engel ES 3500 / 500
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 3500 / 500 |
| Year: | 1988 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |

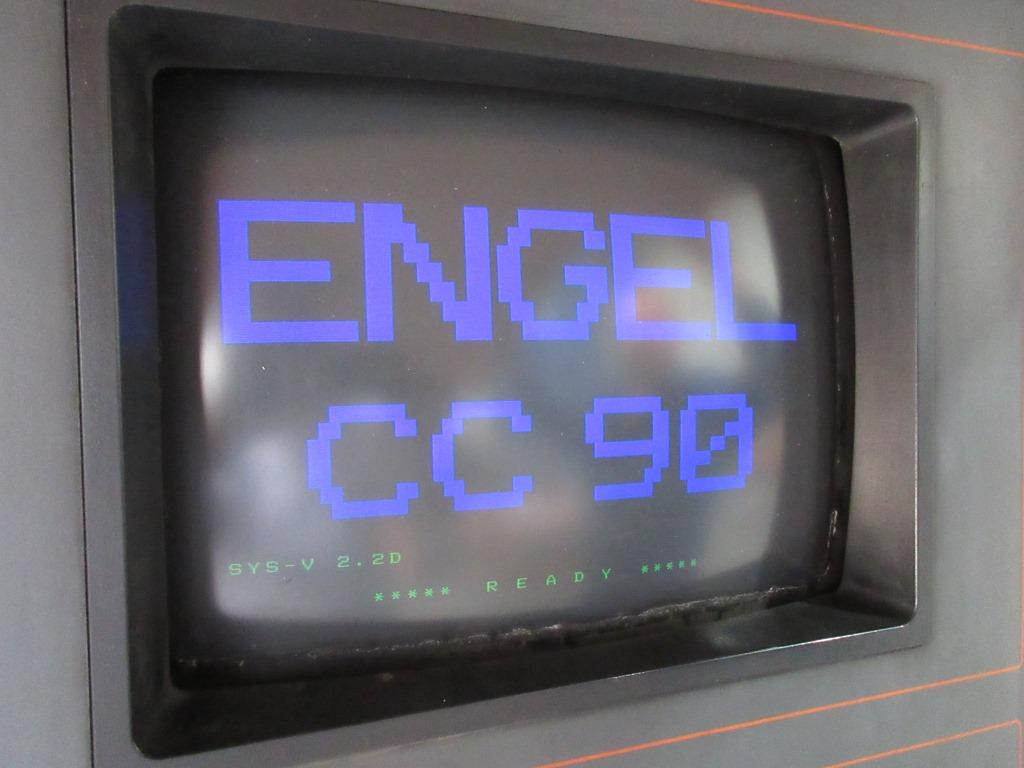

| Controlversion: | CC90 |
| Screen text: | Dutch |

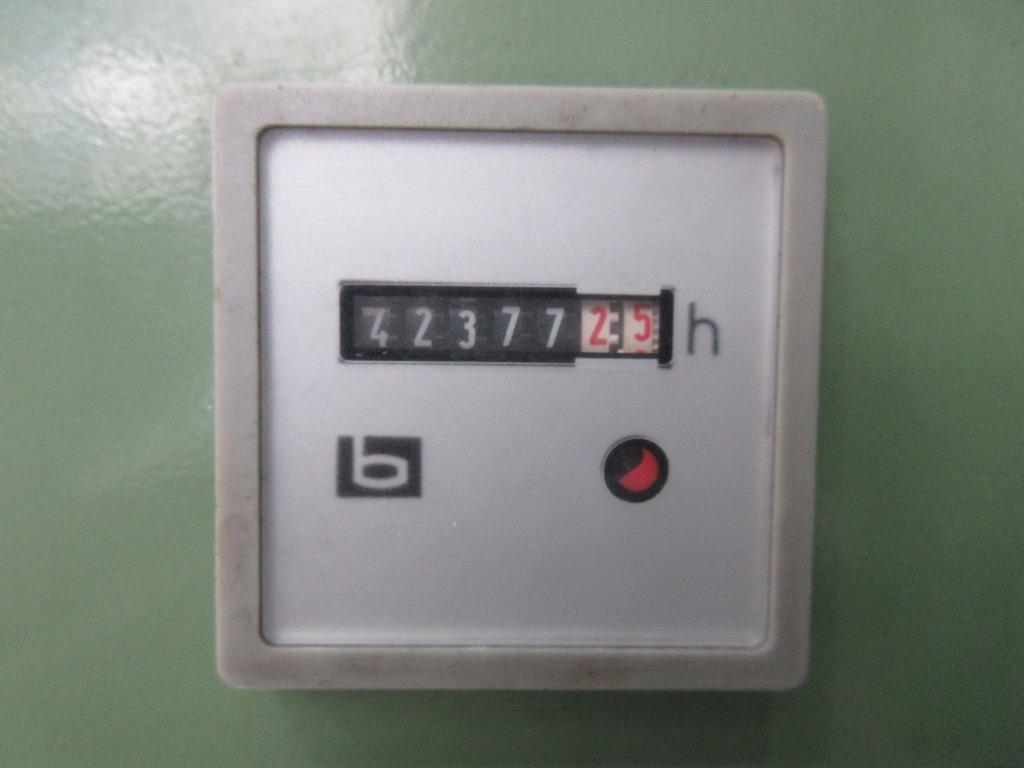

| Operating hours: | 42.377 hrs. |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 5000 kN |

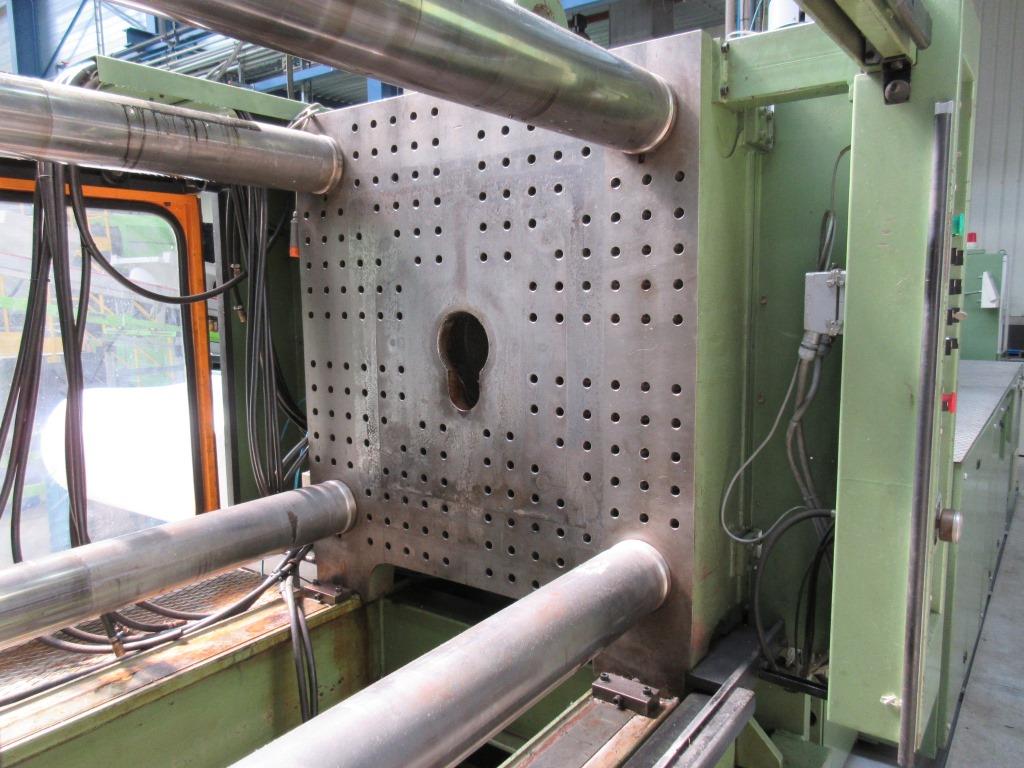

| Size of mould platens (h x v): | 1200 mm x 1200 mm |
| Distance between tie bars (h x v): | 800 mm x 800 mm |
| Mould opening stroke: | 850 mm |
| Mould height min.: | 310 mm |
| Mould height max.: | 800 mm |
| Max daylight: | 1650 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 110 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 80 mm |
| Injection pressure: | 1765 bar |
| Stroke volume: | 1960 ccm |
| Shot weight, PS: | 1765 g |
| Screw speed: | 5-150 1/min |
| Injection Speed | 570 g/s |
| Plasticising rate max.: | 80 g/s |
| Nozzle pressure: | 150 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 90 kW |
| Installed heating capacity: | 34 kW |
| Adjustable barrel heating zones: | 5+1 |
| Dry cycle time: | 3,9 sec |
| Reservoir capacity: | 1300 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 10,50 m x 2,52 m x 2,40 m |
| Total machine weight: | 13000 + 26000 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - |
| Additional information | |
|---|---|
| - - 2 x Cores - 1 x Air valve
|
