Engel ES 330H / 80V / 80H - HL - 2F
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 330H / 80V / 80H - HL - 2F |
| Year: | 1993 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | CC 90 |
| Screen text: | Dutch |
| Operating hours: | 41.983 hrs. |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 kN |
| Size of mould platens (h x v): | 660 mm x 560 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 450 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | mm |
| Max daylight: | 650 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 25,4 kN |
| Injection unit 330 H 80 V | |
|---|---|
| Screw diameter: | 35 mm 18 mm |
| Injection pressure: | 1600 bar 2200 bar |
| Stroke volume: | 154 ccm 25 ccm |
| Shot weight, PS: | 140 g 22 g |
| Screw speed: | 20-400 20 - 450 1/min |
| Plasticising rate max.: | 19 g/s 5 g/s |
| Nozzle pressure: | 47 KN 28 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 + 7,5 kW |
| Installed heating capacity: | 9,2 + 5,9 kW |
| Adjustable barrel heating zones: | 3+1 - 3+1 |
| Dry cycle time: | sec |
| Reservoir capacity: | 185 + 90 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions : | 6,00 m x 2,00m x 2,4 m |
| weight: | 6.300 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - |
| Additional information | |
|---|---|
| - Turntable Details
- Robot ER HL 33 - 1 x Cores - 8 x hotrunner Controller |

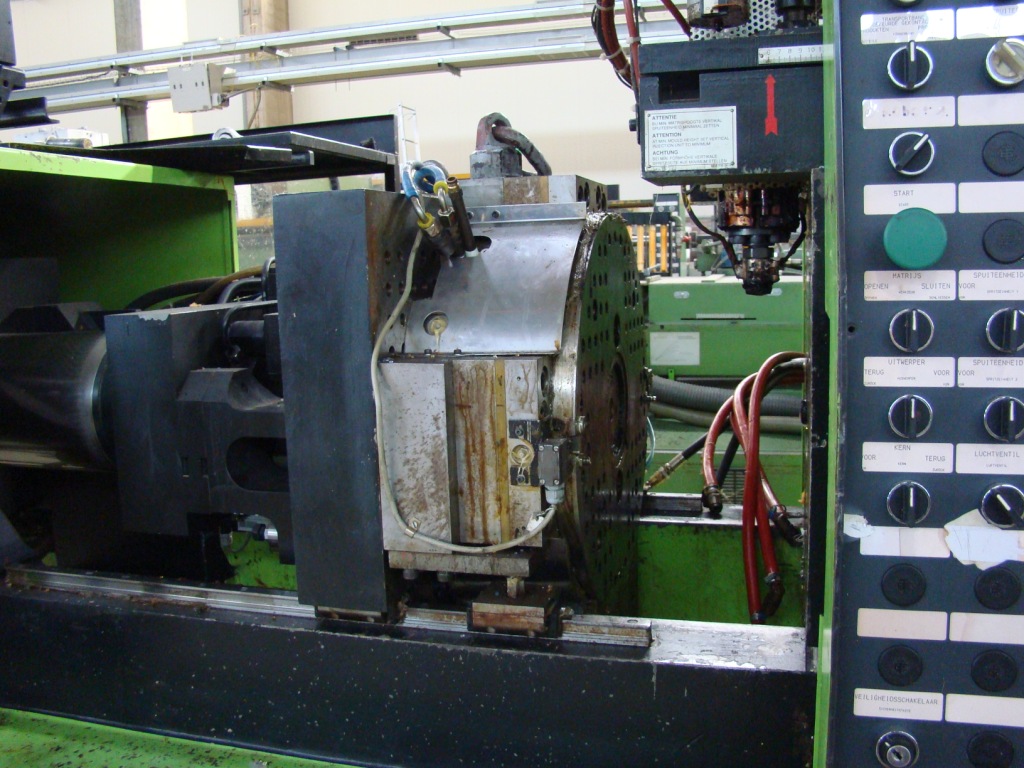

| Picture |
|---|
