Engel ES 330 / 90 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 330 / 90 HL |
| Year: | 1996 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | EC 100 |
| Screen text: | Franch |
| Operating hours: | 67740 Hrs |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 900 kN |
| Size of mould platens (h x v): | 710 mm x 420 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 130 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Injection pressure: | 1250 bar |
| Stroke volume: | 201 ccm |
| Shot weight, PS: | 183 g |
| Screw speed: | 20-320 1/min |
| Plasticising rate max.: | 22 g/s |
| Nozzle pressure: | 47 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 9,2 kW |
| Adjustable barrel heating zones: | 4 |
| Dry cycle time: | 1,5 sec |
| Reservoir capacity: | 200 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,22 m x 1,42 m x 2,00 m |
| Total machine weight: | 5.900 kg |
| Accessories | |
|---|---|
| - QMC - 1 x Core -Robot Interface - 8 x Hotrunner controllers -Auto - Gate -Anti vibration pads |
| Additional information | |
|---|---|
|
|

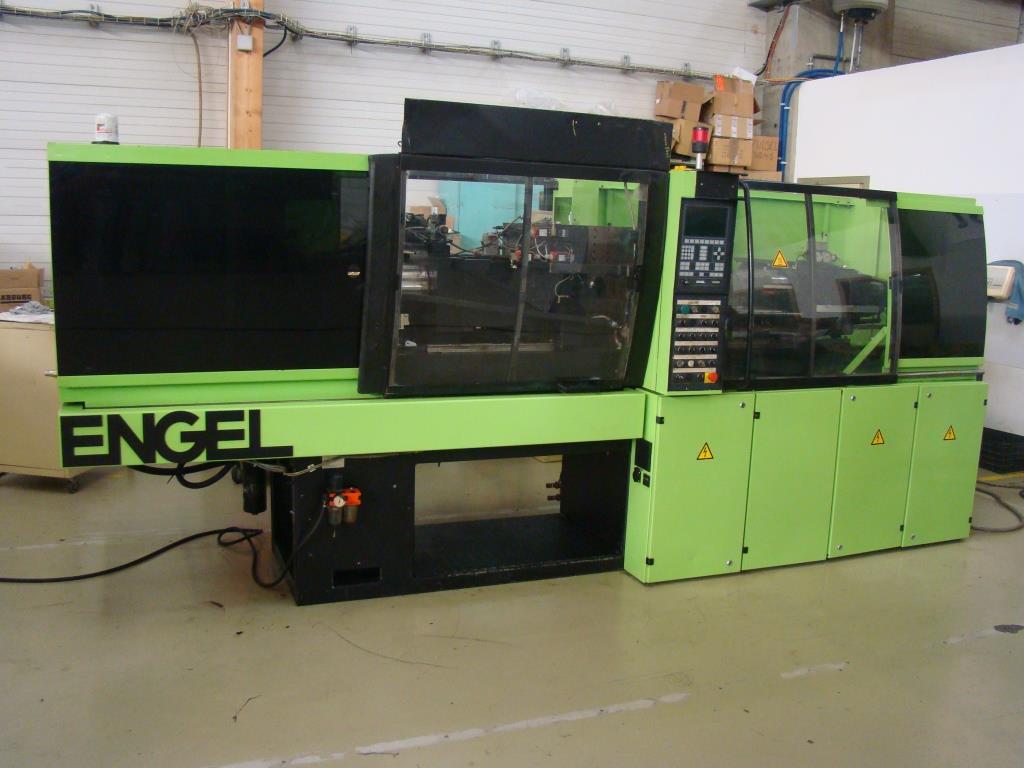

| Picture |
|---|
