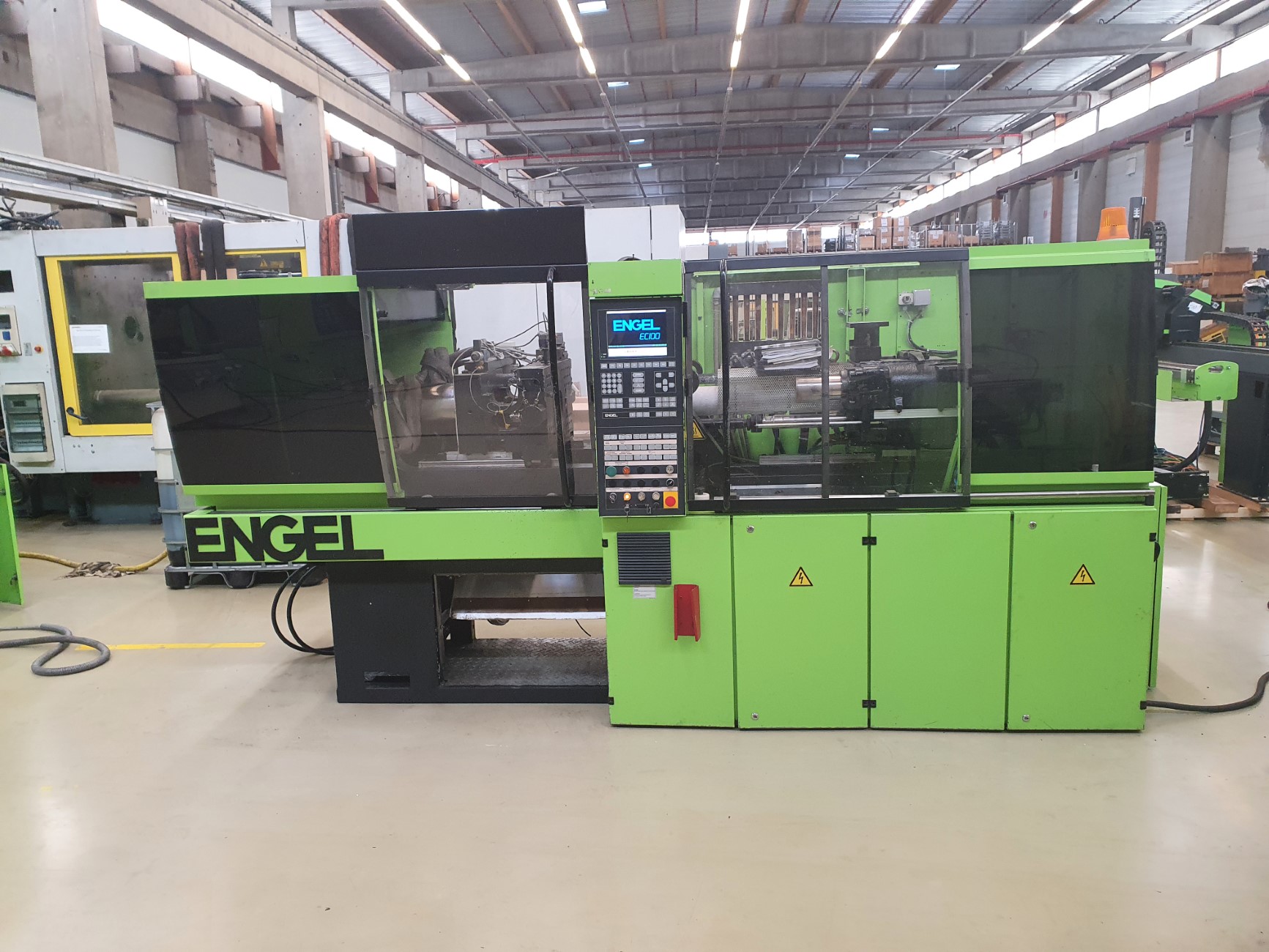

Engel ES 330 / 75 HL - V
| DetailsF |
| Manufacturer: | Engel |
| Type of machine: | ES 330 / 75 HL - V |
| Year: | 1999 |
| Delivery time: | Now |
| Terms of Delivery: | EX Works |
| Location: | B - 4340 Awans |
| Controlversion: | EC 100 A03 |
| Screen text: | Dutch / German |
| Operating hours: | 32.975 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 750 kN |
| Size of mould platens (h x v): | 660 mm x 360 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 450 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 650 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 37,3 kN |
| Injection unit | |
|---|---|
| Agg | 75 |
| Screw diameter: | 30 mm |
| L/D | 23.4 |
| Injection pressure: | 2180 bar |
| Stroke volume CC: | 113 ccm |
| Shot weight, PS: | 101 g |
| Screw Stroke | 160 mm |
| Injection rate: | 80 cc /s |
| Screw speed: | 20-400 1/min |
| Nozzle pressure: | 47 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 9,2 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 140 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,81 m x 1,30 m x 2,00m |
| Total machine weight: | 4.900 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - QMC - 1 x Core - 2 x Air valve - Robot interface Euromap 12 |
| Additional information | |
|---|---|
| - |
|
