Engel ES 2050 / 400 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 2050 / 400 HL |
| Year: | 1995 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | EC 88 - EL |
| Screen text: | German |
| Operating hours: | 64.500 hrs. |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4.000 kN |
| Size of mould platens (h x v): | 1300 mm x 1080 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 950 mm |
| Mould height min.: | 350 mm |
| Mould height max.: | -- mm |
| Max daylight: | 1300 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 82 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 70 mm |
| Injection pressure: | 1481 bar |
| Stroke volume: | 1.155 ccm |
| Shot weight, PS: | 1040 g |
| Screw speed: | 171 1/min |
| Plasticising rate max.: | 61 g/s |
| Nozzle pressure: | 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 45 kW |
| Installed heating capacity: | 29,4 kW |
| Adjustable barrel heating zones: | |
| Dry cycle time: | sec |
| Reservoir capacity: | 980 ltr. |
| Dimensions und weights | |
|---|---|
| Clamp Unit .: | 3.700 m x 2.221 m x 2.163 m |
| weight: | 23.650 kg |
| Injection Unit .: | 4.280 m x 2.221 m x 2.163m |
| weight: | 5.600 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - Robot Interface Euromap 12 - 1 x Core |
|
| Additional information | |
|---|---|
- Extra 80 mm Unit |

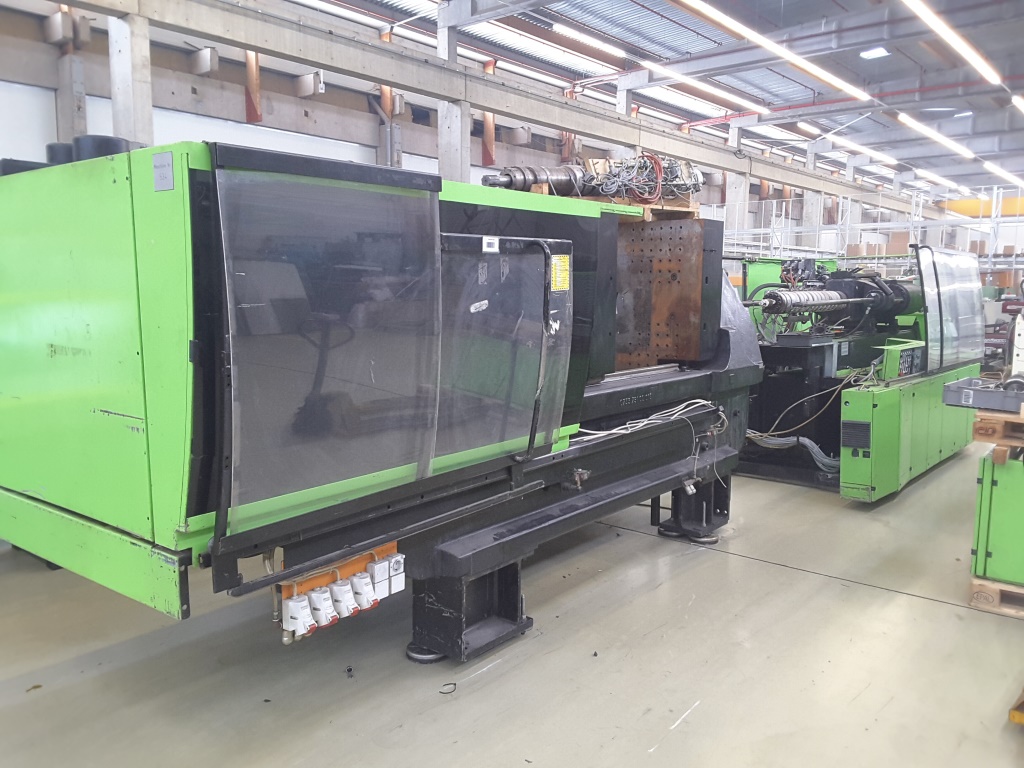

| Picture |
|---|
