| Engel ES 2000 / 350 |
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 2000 / 350 |
| Year: | 1990 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | CC 90 / A02 |
| Screen text: | German |
| Operating hours: | h |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 3500 kN |
| Size of mould platens (h x v): | 1080 mm x 1080 mm |
| Distance between tie bars (h x v): | 735 mm x 735 mm |
| Mould opening stroke: | 700 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | 660 mm |
| Max daylight: | 1360 mm |
| Hydraulic ejector - stroke: | 240 mm |
| Ejector force forward/backward: | 70 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 70 mm |
| Injection pressure: | 1400 bar |
| Stroke volume: | 1154 ccm |
| Shot weight, PS: | 1040 g |
| Screw speed: | 195 1/min |
| Plasticising rate max.: | 283 g/s |
| Nozzle pressure: | 150 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 45 kW |
| Installed heating capacity: | 21,2 kW |
| Adjustable barrel heating zones: | 4+1 |
| Dry cycle time: | 2,8 sec |
| Reservoir capacity: | 540 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 9,20 m x 2,45 m x 2,00 m |
| Total machine weight: | 22500 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - 8 x Hotrunner controllers |
| Additional information | |
|---|---|
| - Robot interface Euromap 12 - 2 x Cores - 2 x Air valve - QMC - |

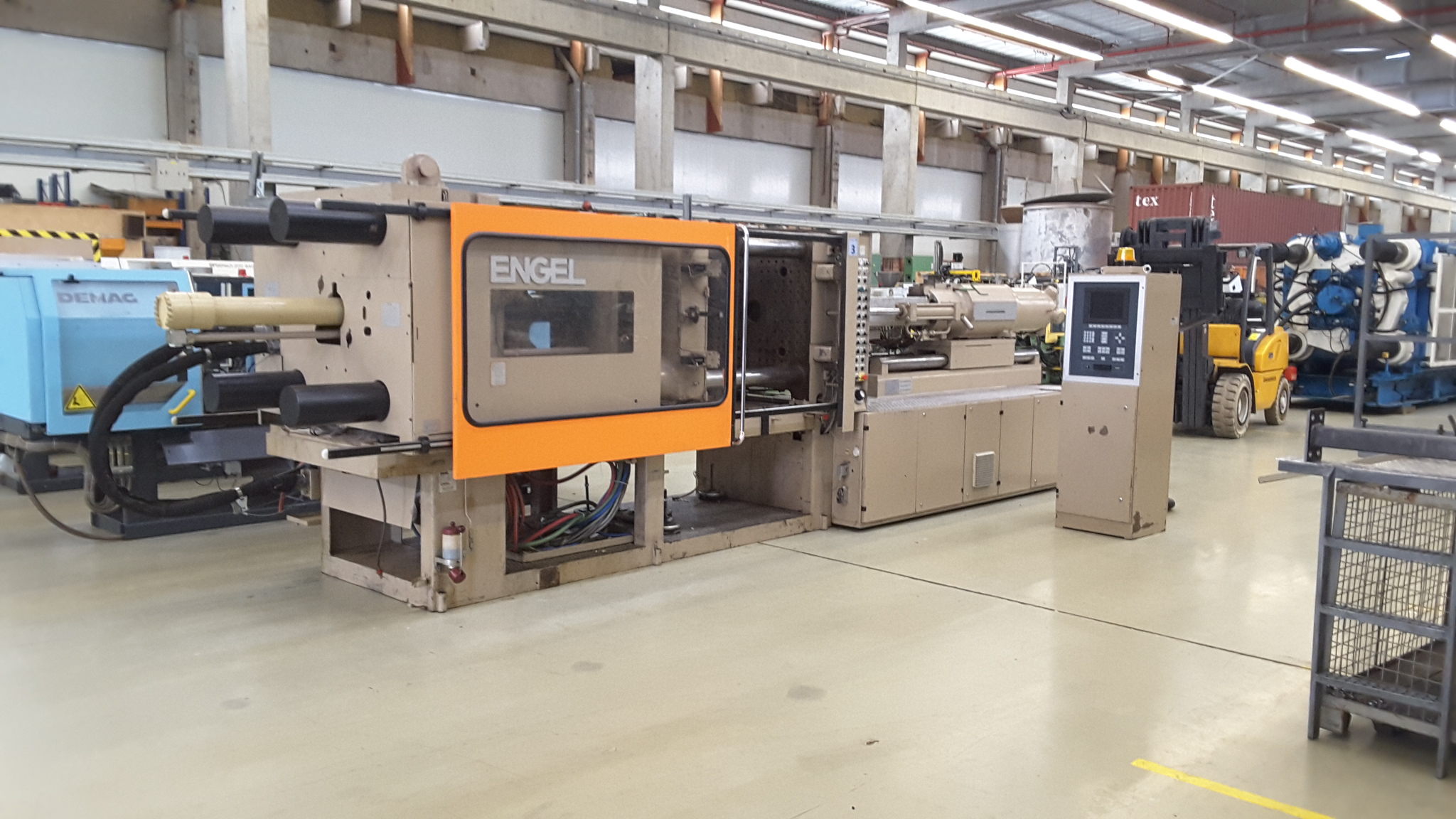

| Picture |
|---|
