Engel ES 200 / 45 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 200 / 45 HL |
| Year: | 2000 |
| Delivery time: | immediately |
| Terms of Delivery: | EX Works |
| Location: | B - 4340 Awans |
| Controlversion: | EC 100 A03 |
| Screen text: | German / Dutch |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 450 kN |
| Size of mould platens (h x v): | 550 mm x 430 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 360 mm |
| Mould height min.: | 180 mm |
| Max daylight: | 530 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| L/D | 24,8 |
| Injection pressure: | 2090 bar |
| Stroke volume: | 69 ccm |
| Shot weight, PS: | 62,1 g |
| Injection rate: | 88 cc /s |
| Screw speed: | 20-480 1/min |
| Nozzle pressure: | 28 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 6,8 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 115 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,26 m x 1,20 m x 1,80 m |
| Total machine weight: | 3.300 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - |
| Additional information | |
|---|---|
| - Robot interface Euromap 12 - 3 x air valve - QMC |

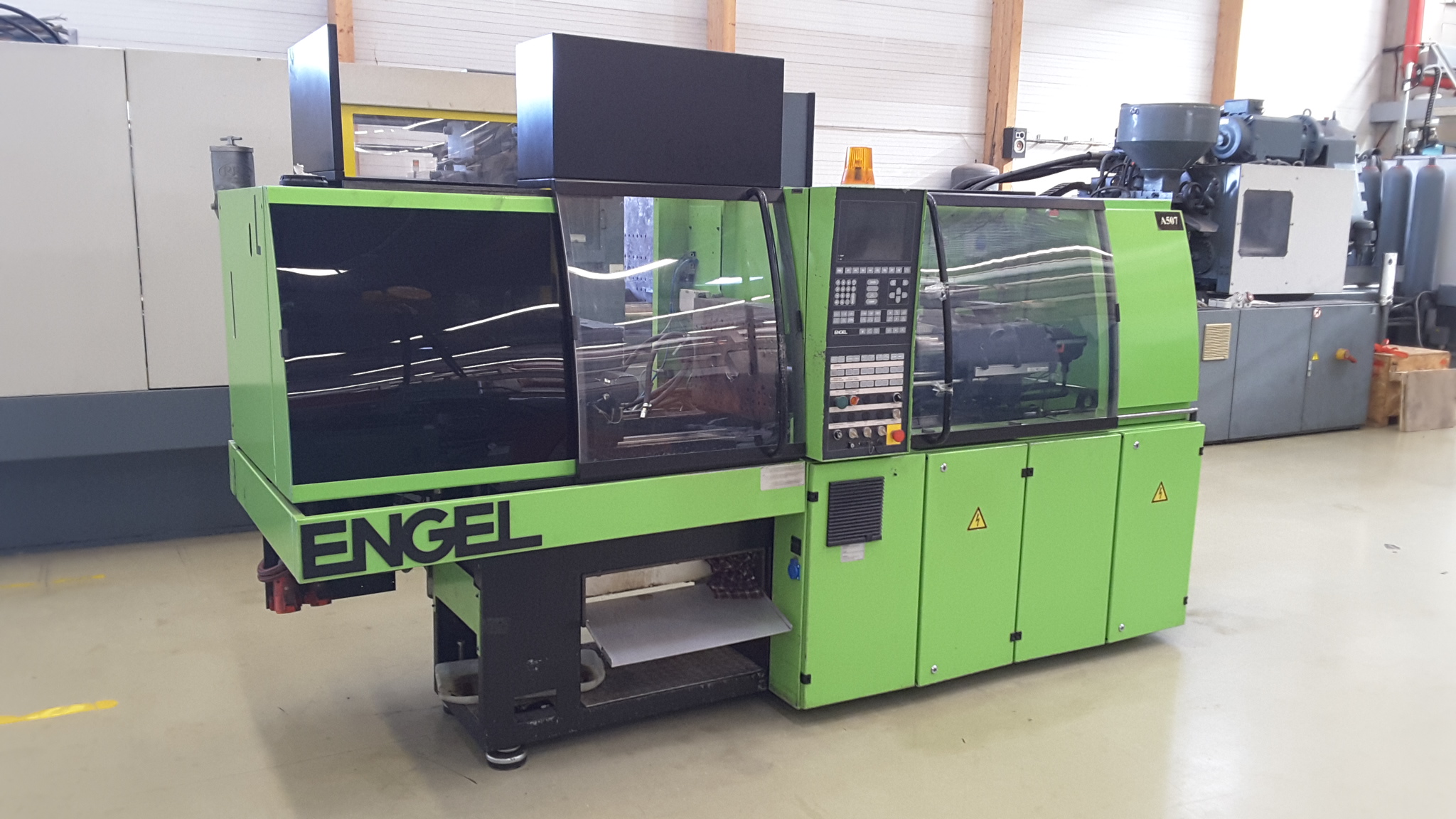

| Picture |
|---|
