Engel ES 1800 / 200 HL PVC
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 1800 / 200 HL |
| Year: | 2000 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | EC 100 - A03 |
| Screen text: | German / Dutch |
| Operating hours: | 63771 hrs. |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2000 kN |
| Size of mould platens (h x v): | 820 mm x 750 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 700 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | 950 mm |
| Max daylight: | 950 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 61 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 80 mm |
| Injection pressure: | 1330 bar |
| Stroke volume: | 1357 ccm |
| Shot weight, PS: | 1222 g |
| Screw speed: | 50 1/min |
| Plasticising rate max.: | 200 g/s |
| Nozzle pressure: | 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 33,1 kW |
| Adjustable barrel heating zones: | 4 + 1 |
| Dry cycle time: | sec |
| Reservoir capacity: | 530 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 8,8 m x 3,63 m x 2,5 m |
| Total machine weight: | 13.000 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - |
| Additional information | |
|---|---|
| - 2 x Cores - Robot interface -
|

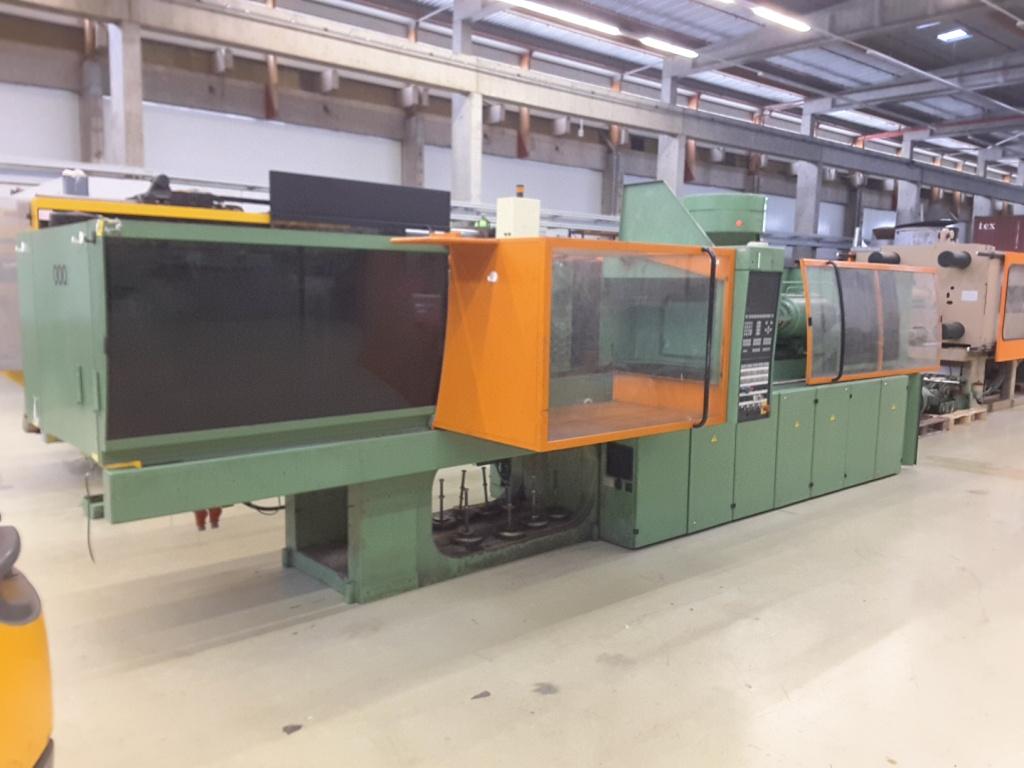

| Picture |
|---|
