Engel ES 1300 / 250
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 1300 / 250 |
| Year: | 1990 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | EC 88 |
| Screen text: | German |
| Operating hours: | 83.000 hrs. |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2500 kN |
| Size of mould platens (h x v): | 910 mm x 910 mm |
| Distance between tie bars (h x v): | 635 mm x 635 mm |
| Mould opening stroke: | 600 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | 560 mm |
| Max daylight: | 1160 mm |
| Hydraulic ejector - stroke: | 200 mm |
| Ejector force forward/backward: | 70 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 60 mm |
| Injection pressure: | 1500 bar |
| Stroke volume: | 735 ccm |
| Shot weight, PS: | 661 g |
| Screw speed: | 5-210 1/min |
| Plasticising rate max.: | 51 g/s |
| Nozzle pressure: | 96 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 37 kW |
| Installed heating capacity: | 15,4 kW |
| Adjustable barrel heating zones: | 4+11 |
| Dry cycle time: | 2 sec |
| Reservoir capacity: | 430 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7.415m x 1.82 m x 2.37 m |
| Total machine weight: | 12.500 kg |
| Accessories | |
|---|---|
| - 2 x Core -Robot Interface -Anti vibration pads - |
| Additional information | |
|---|---|
| - |

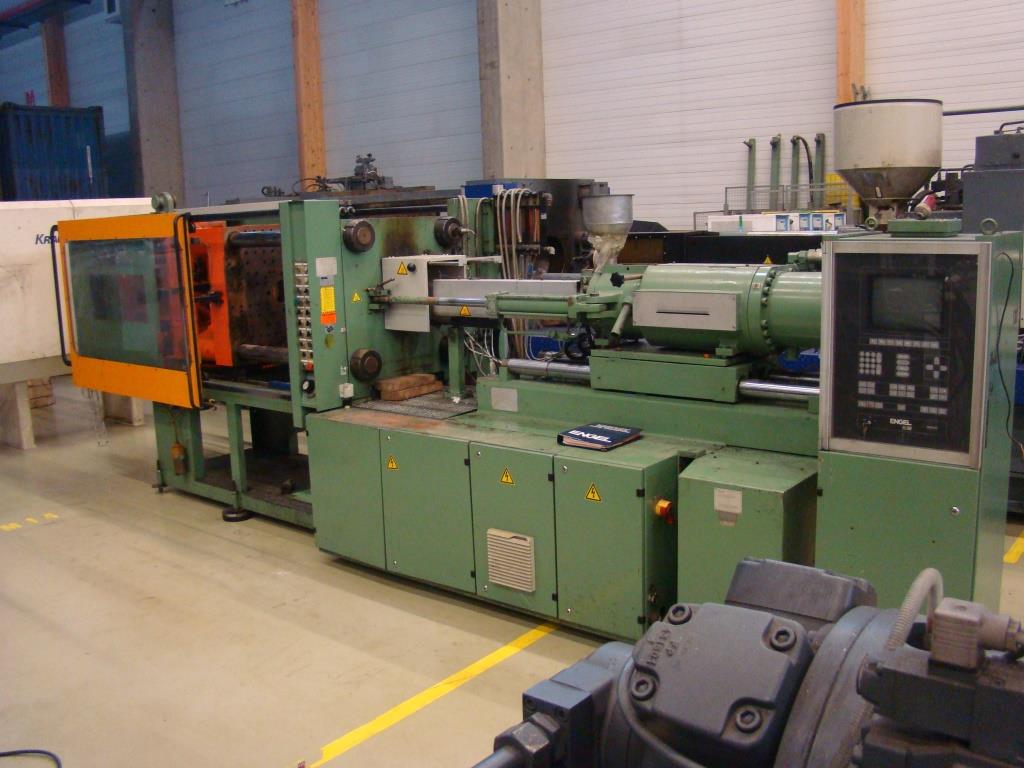

| Picture |
|---|
