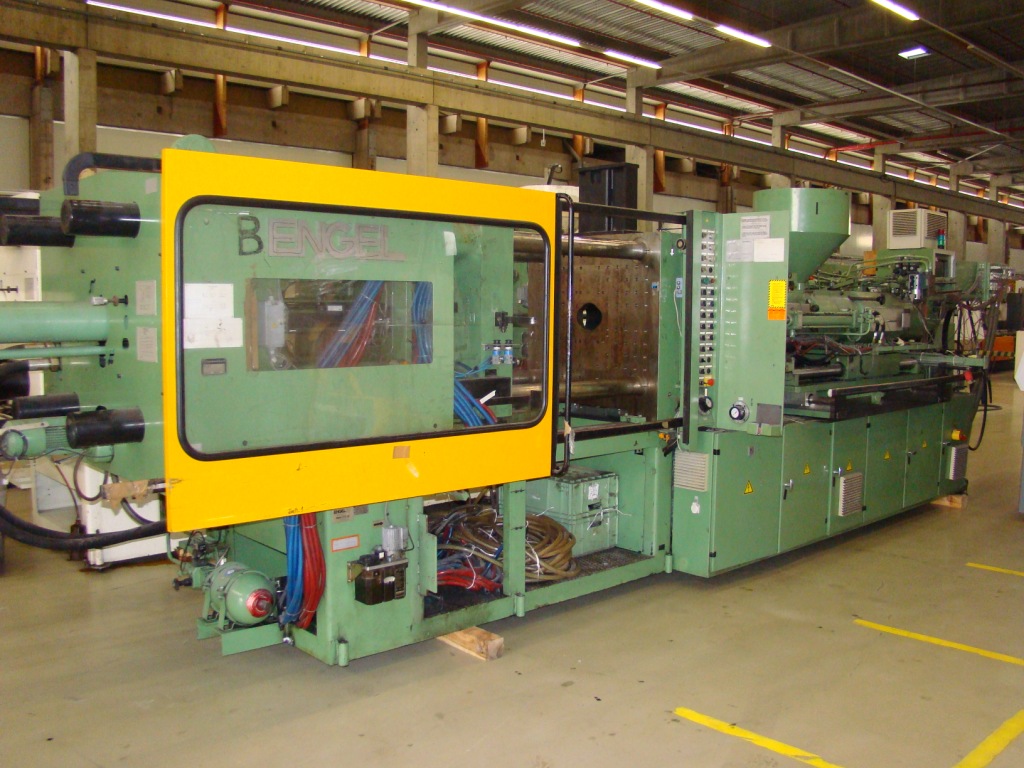

Engel ES 1300 / 1300 / 250 2K
| Manufacturer: |
Engel |
| Type of machine: |
ES 1300 / 1300 / 250 2K |
| Year: |
1989 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex - Works |
| Location: |
Awans - Belgium |

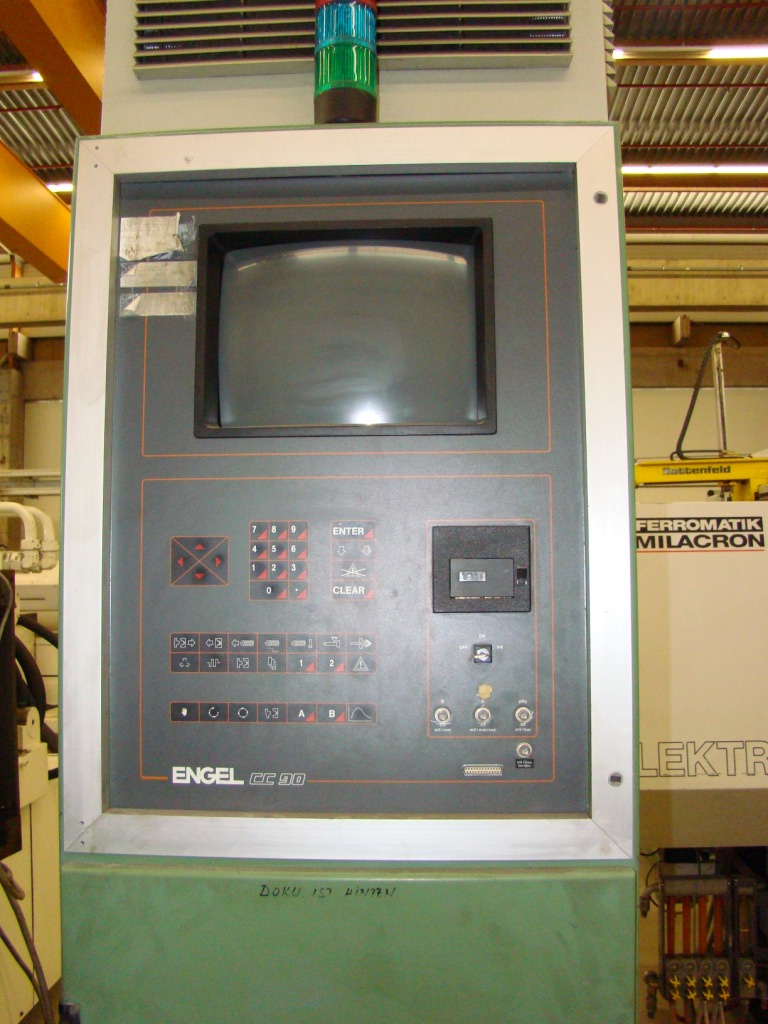

| Controlversion: |
CC |
| Screen text: |
German |
| Operating hours: |
hrs. |
| Price: |
On Request |
Technical details
| Clamping unit |
| Clamping force: |
2500 kN |
| Size of mould platens (h x v): |
910 mm x 910 mm |
| Distance between tie bars (h x v): |
635 mm x 635 mm |
| Mould opening stroke: |
600 mm |
| Mould height min.: |
200 mm |
| Mould height max.: |
560 mm |
| Max daylight: |
1160 mm |
| Hydraulic ejector - stroke: |
200 mm |
| Ejector force forward/backward: |
70 kN |

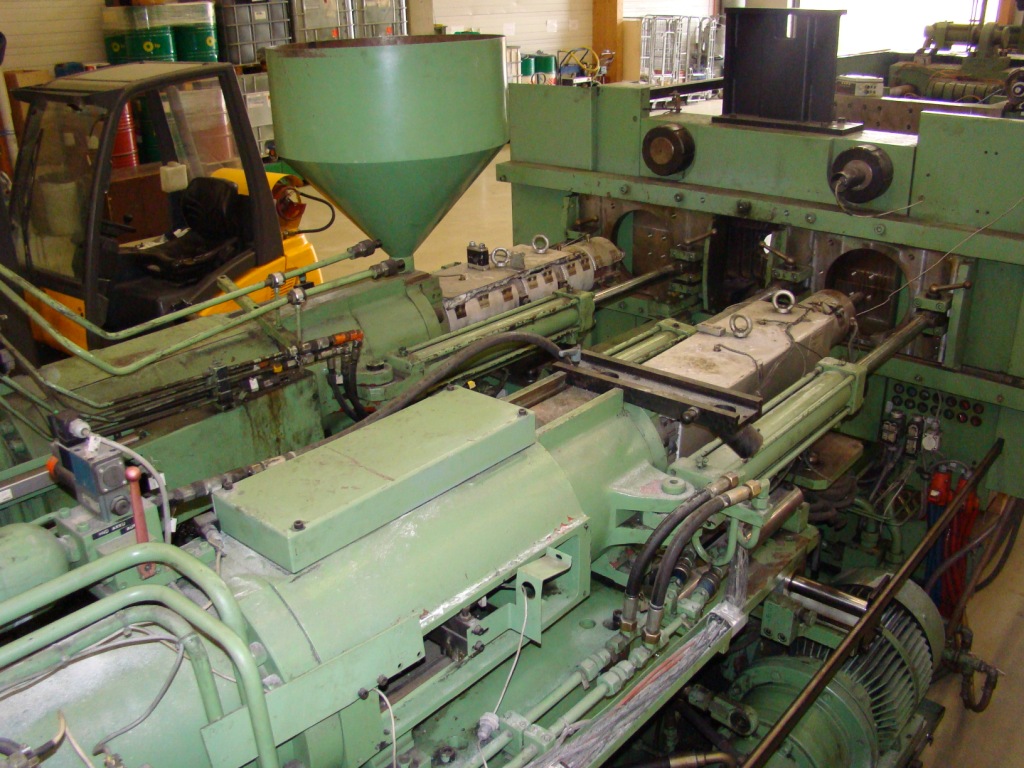

| Injection unit
1
2 |
| Screw diameter: |
55 mm
45 mm |
| Injection pressure: |
1800 bar
2500 bar |
| Stroke volume: |
617 ccm
413 ccm |
| Shot weight, PS: |
555 g
371 g |
| Screw speed: |
1/min |
| Plasticising rate max.: |
g/s |
| Nozzle pressure: |
96 KN
96 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
74 kW |
| Installed heating capacity: |
52,3 kW |
| Adjustable barrel heating zones: |
|
| Dry cycle time: |
sec |
| Reservoir capacity: |
800 ltr. |
| Dimensions und weights |
| Dimensions of the clamp Unit ca.: |
8,5 m x 2,4 m x 2,7 m |
| weight: |
17.000 kg |
| Dimensions of the Injection Unit ca.: |
m x m x m |
| Total machine weight: |
kg |
| Accessories |
- Anti vibration pads
- |
| Additional information |
-
- x Cores
- x Air valve |
