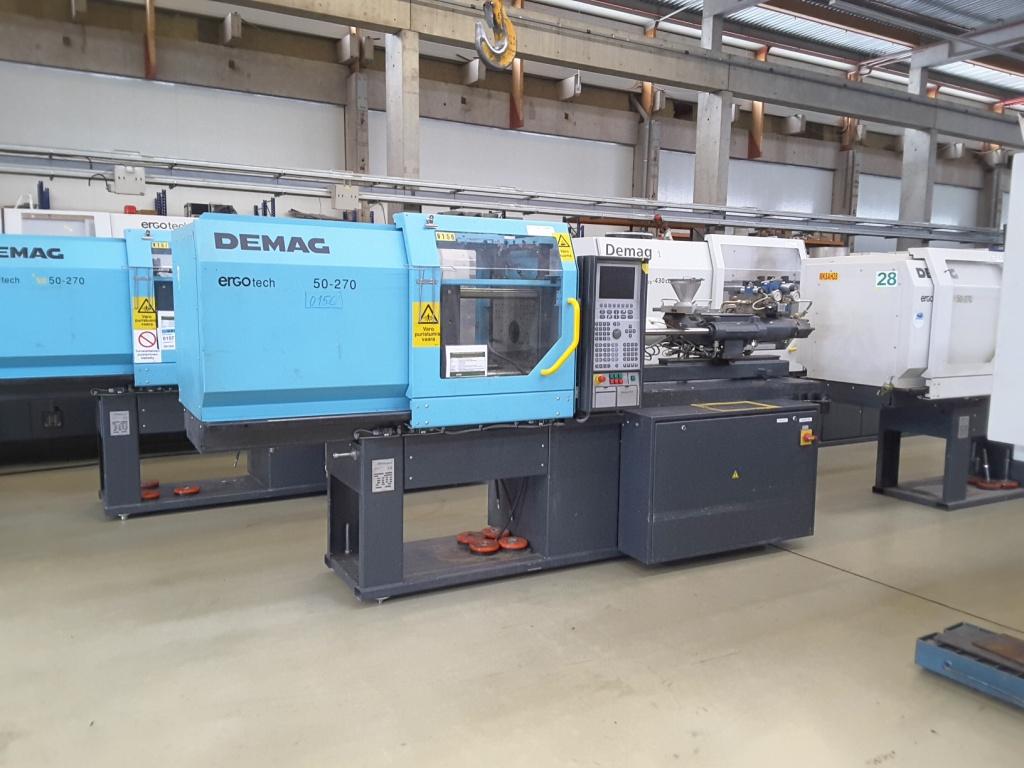

Demag Ergotech 500 / 270 Viva
| Details |
| Manufacturer: | Demag |
| Type of machine: | Ergotech 500 / 270 Viva |
| Year: | 2000 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | 68995 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Size of mould platens (h x v): | 540 mm x 540 mm |
| Distance between tie bars (h x v): | 355 mm x 355 mm |
| Mould opening stroke: | 400 mm |
| Mould height min./ max: | 210 / -- mm |
| Max daylight: | 610 mm |
| Hydraulic ejector - stroke: | 125 mm |
| Ejector force forward/backward: | 41,2 / 14,8 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| L / D | 20 |
| Injection pressure: | 1890 bar |
| Screw Stroke | 150 mm |
| Stroke volume: | 144,3 ccm |
| Shot weight, PS: | 128 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 66 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 7,5 kW |
| Dry cycle number: | 1/h |
| Reservoir capacity: | 135 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 3650 x 1150 x 1770 mm | |
| weight: | 2500 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - Robot interface Euromap 12 - 1 x Core - |
|
| Picture |
|---|
