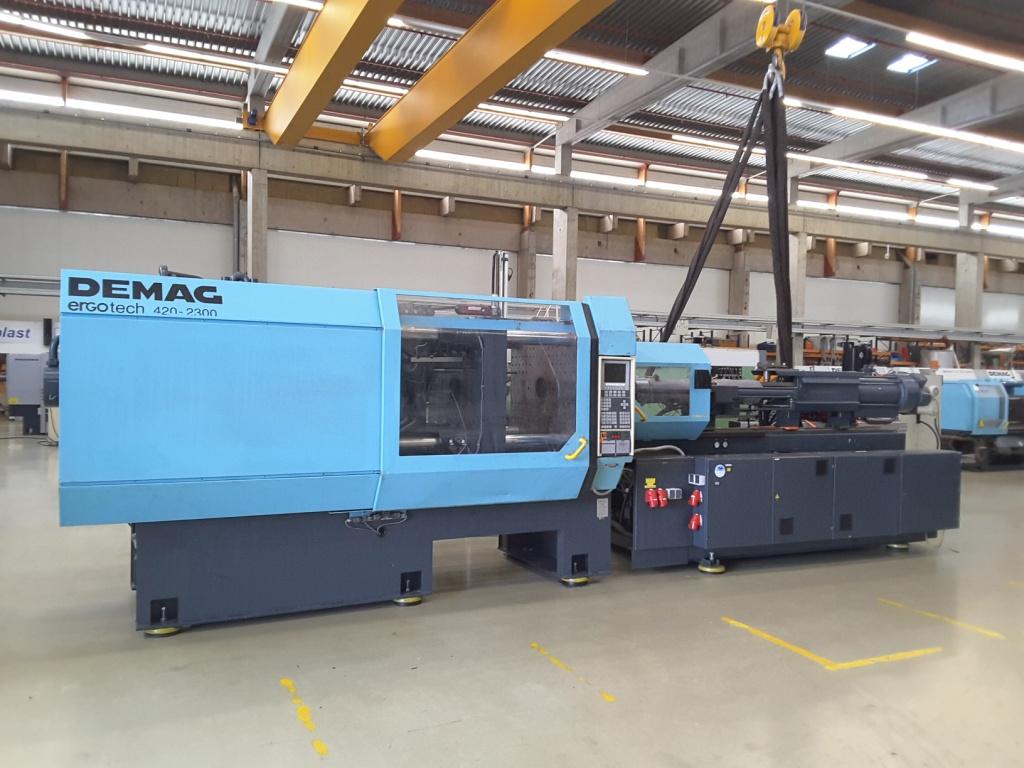

Demag Ergotech 420 / 2300 System
| Details |
| Manufacturer: | Demag |
| Type of machine: | Ergotech 420 - 2300 System |
| Year: | 1995 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | 27.101 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4.200 kN |
| Size of mould platens (h x v): | 1200 mm x 1100 mm |
| Distance between tie bars (h x v): | 800 mm x 710 mm |
| Mould opening stroke: | 710 mm |
| Mould height min./ max: | 380 / 820 mm |
| Max daylight: | 1530 mm |
| Hydraulic ejector - stroke: | 230 mm |
| Ejector force forward/backward: | 90 / 45 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 70 mm |
| L / D | 20 |
| Injection pressure: | 1877 bar |
| Screw Stroke | 315 mm |
| Stroke volume: | 1212 ccm |
| Shot weight, PS: | 1090 g |
| Injection rate: | 260 ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 110 kN |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| Clamp Unit | 3615 x 2180 x 2300 19.000 Kg |
| Injection Unit | 4300 x 2180 x 2200 3.400 Kg |
| Weight: | 22.400 kg |
| Accessories | |
| Wedge type anti-vibration pads | |
| Additional information |
|---|
| - 5x Hotrunner controllers - 4 x Core - Robot Interface Euromap 12 - Robot Wittmann W 633 Y = 500 mm X = 1200 mm Z = 2000 mm |
| Picture |
|---|
