Demag Ergotech 2000 / 560 - 610 Concept
| Details |
| Manufacturer: | Demag Ergotech |
| Type of machine: | 2000 / 560 - 610 Concept |
| Year: | 2001 |
| Delivery time: | Now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | 76.522 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.000 kN |
| Size of mould platens (h x v): | 830 mm x 830 mm |
| Distance between tie bars (h x v): | 560 mm x 560 mm |
| Mould opening stroke: | 575 mm |
| Mould height min./ max: | 310 / 660 mm |
| Max daylight: | 1235 mm |
| Hydraulic ejector - stroke: | 180 mm |
| Ejector force forward/backward: | 69 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| L / D | 20 |
| Injection pressure: | 1598 bar |
| Stroke volume: | 399 ccm |
| Shot weight, PS: | 360 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 80 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 18,6 kW |
| Dry cycle number: | |
| Reservoir capacity: | 500 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 5700 x 1700 x 2100 mm | |
| weight: | 9800 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - 2 x Core - Robot interface euromap 12 - 16 x mold heating controllers |
|

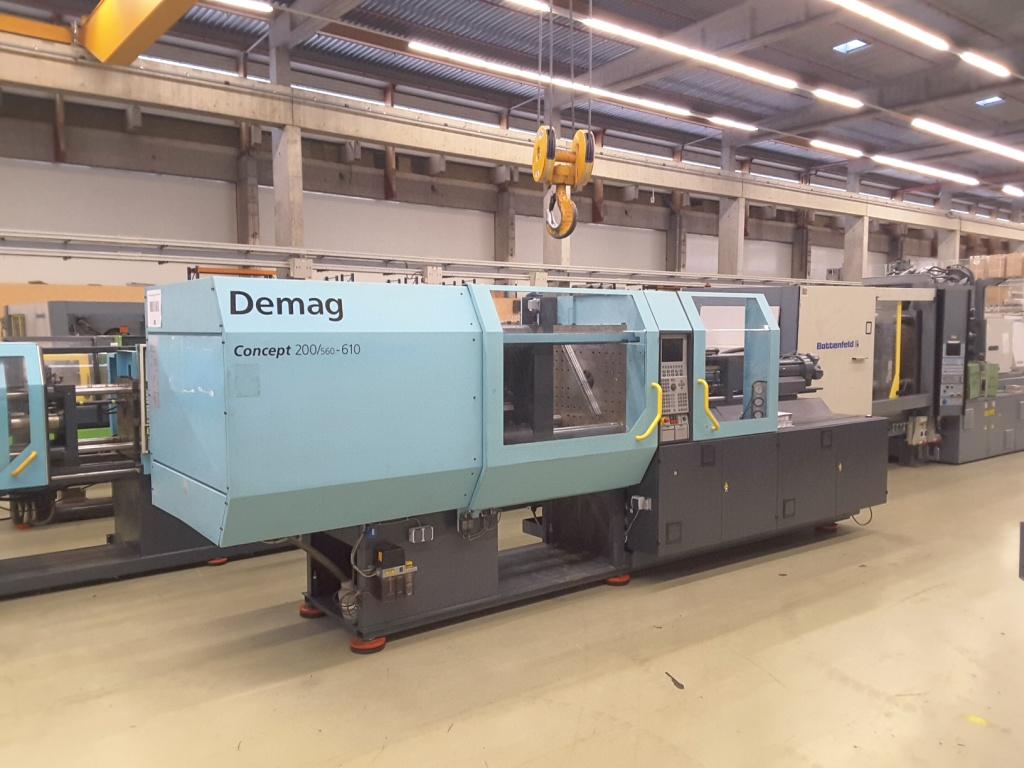

| Picture |
|---|
