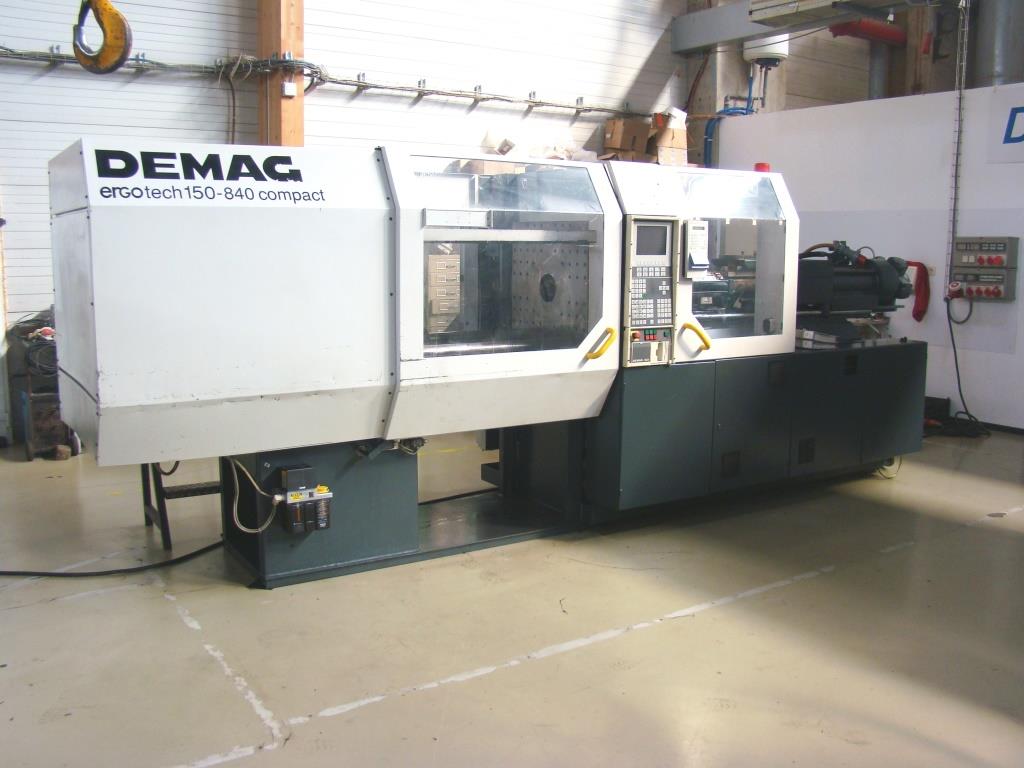

Demag Ergotech 1500 / 840 Compact
| Details |
| Manufacturer: | Demag |
| Type of machine: | Ergotech 1500 / 840 Compact |
| Year: | 1995 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.500 kN |
| Size of mould platens (h x v): | 750 mm x 750 mm |
| Distance between tie bars (h x v): | 500 mm x 500 mm |
| Mould opening stroke: | 500 mm |
| Mould height min./ max: | 250 / 560 mm |
| Max daylight: | 1060 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 58 / 26 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| L / D | 20 |
| Injection pressure: | 1946 bar |
| Screw Stroke | 225 mm |
| Stroke volume: | 442 ccm |
| Shot weight, PS: | 400 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 80 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 14,8 kW |
| Dry cycle number: | 1700 1/h |
| Reservoir capacity: | 500 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 5200 x 1600 x 2100 mm | |
| weight: | 7000 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - Robot interface - 1 x Core - |
|
| Picture |
|---|
