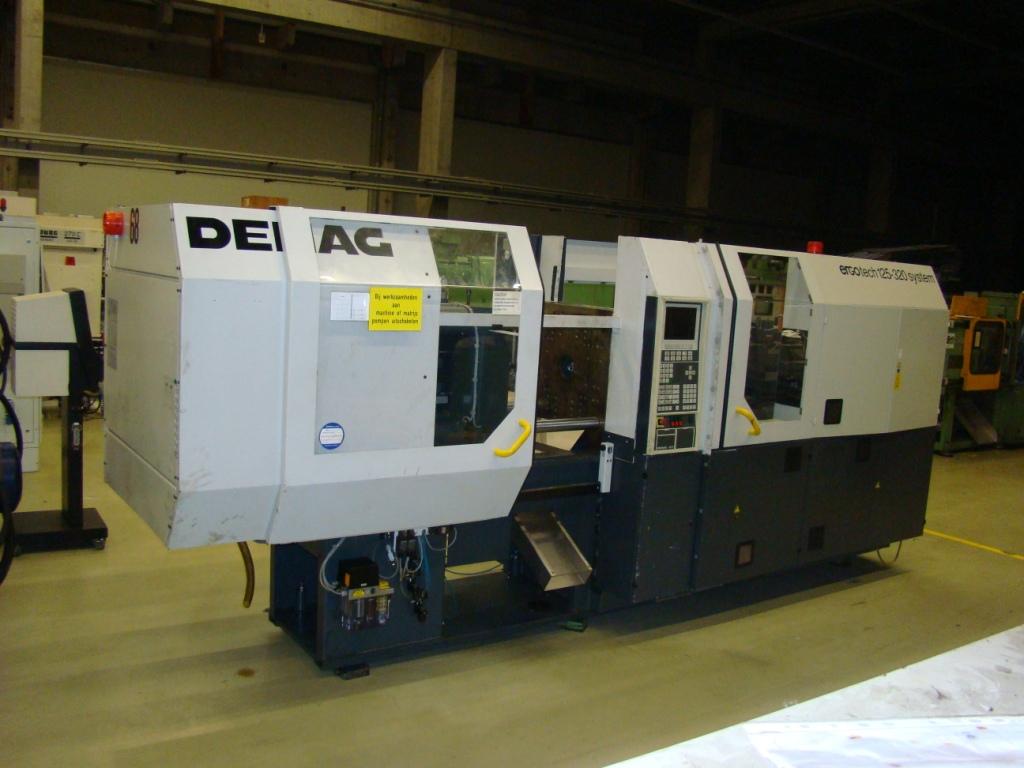

Demag Ergotech 125 / 320 Systeem
| Manufacturer: |
Demag |
| Type of machine: |
Ergotech 125 / 320 Systeem |
| Year: |
1998 |
| Delivery time: |
Now |
| Terms of Delivery: |
EX - Works |
| Location: |
Awans - Belgium |

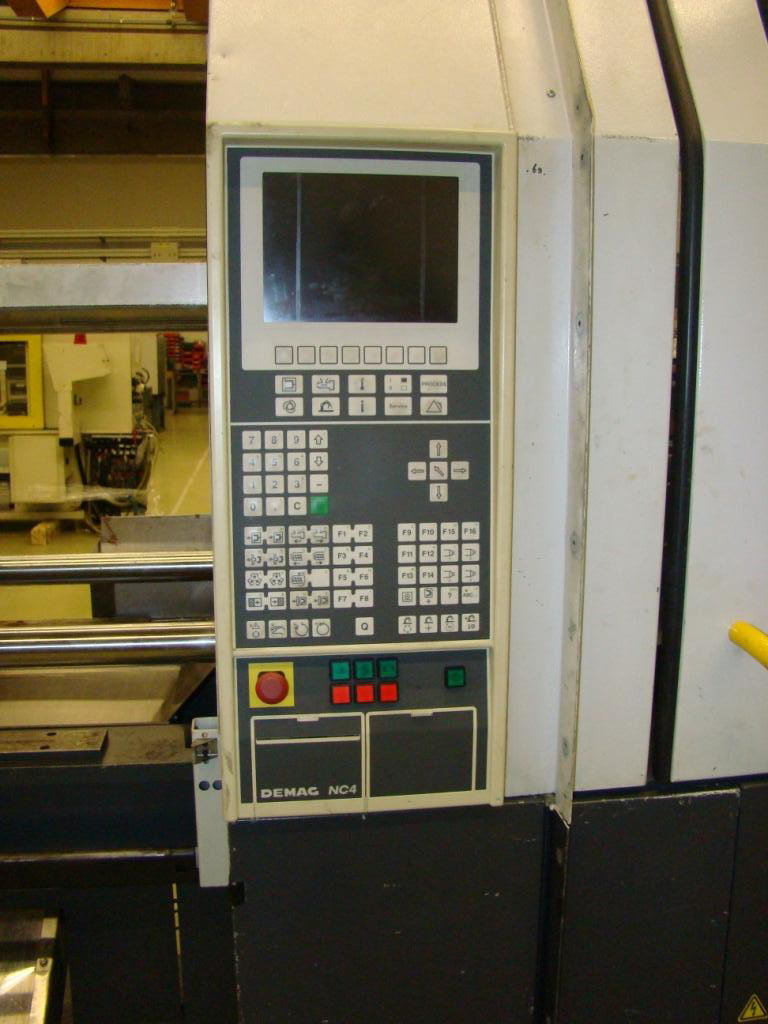

| Controlversion: |
NC IV |
| Screen text: |
Dutch/ Englisch |
| Operating hours: |
34.644 hrs. |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
1.250 kN |
| Size of mould platens (h x v): |
690 mm x 660 mm |
| Distance between tie bars (h x v): |
475 mm x 450 mm |
| Mould opening stroke: |
450 mm |
| Mould height min./ max: |
230 / 460 mm |
| Max daylight: |
910 mm |
| Hydraulic ejector - stroke: |
140 mm |
| Ejector force forward/backward: |
58 / 26 kN |
| |
| Injection unit |
| Screw diameter: |
30 mm |
| Injection pressure: |
2420 bar |
| Stroke volume: |
124 ccm |
| Shot weight, PS: |
110 g |
| Injection rate: |
ccm/s |
| Screw speed: |
1/min |
| Plasticising rate max.: |
g/s |
| Nozzle pressure: |
80 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
22 kW |
| Installed heating capacity: |
7,9 kW |
| Dry cycle number: |
1830 1/h |
| Reservoir capacity: |
500 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
|
| |
4900
x 1600 x 2100 mm |
| weight: |
6200 kg |
| Accessories |
| Wedge type anti-vibration pads |
| Additional information |
- Robot interface
- 1 x Core
- |
| |
