Demag Ergotech 1100 / 470 - 430 Compact
| Details |
| Manufacturer: | Demag |
| Type of machine: | Ergotech 1100 / 470 - 430 Compact |
| Year: | 2001 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | French / German |
| Operating hours: | 37.090 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.100 kN |
| Size of mould platens (h x v): | 670 mm x 660 mm |
| Distance between tie bars (h x v): | 470 mm x 470 mm |
| Mould opening stroke: | 600 mm |
| Mould height min./ max: | 250 / -- mm |
| Max daylight: | 850 mm |
| Hydraulic ejector - stroke: | 180 mm |
| Ejector force forward/backward: | 41,2 / 14,8 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| L / D | 20 |
| Injection pressure: | 2020 bar |
| Screw Stroke | 184 mm |
| Stroke volume: | 231,2 ccm |
| Shot weight, PS: | 205 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 11,1 kW |
| Dry cycle number: | 1800 1/h |
| Reservoir capacity: | 270 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 4700 x 1500 x 2000 mm | |
| weight: | 5650 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - 3 x Air valve - Robot Interface Euromap 12 - Hopper - |
|

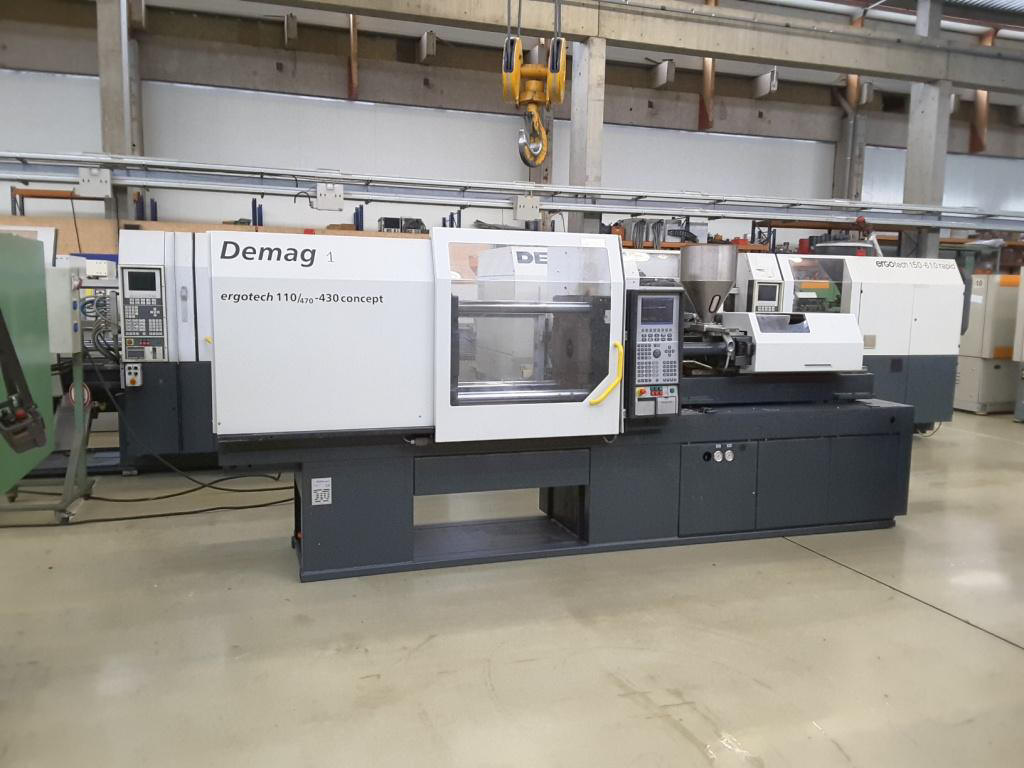

| Picture |
|---|
