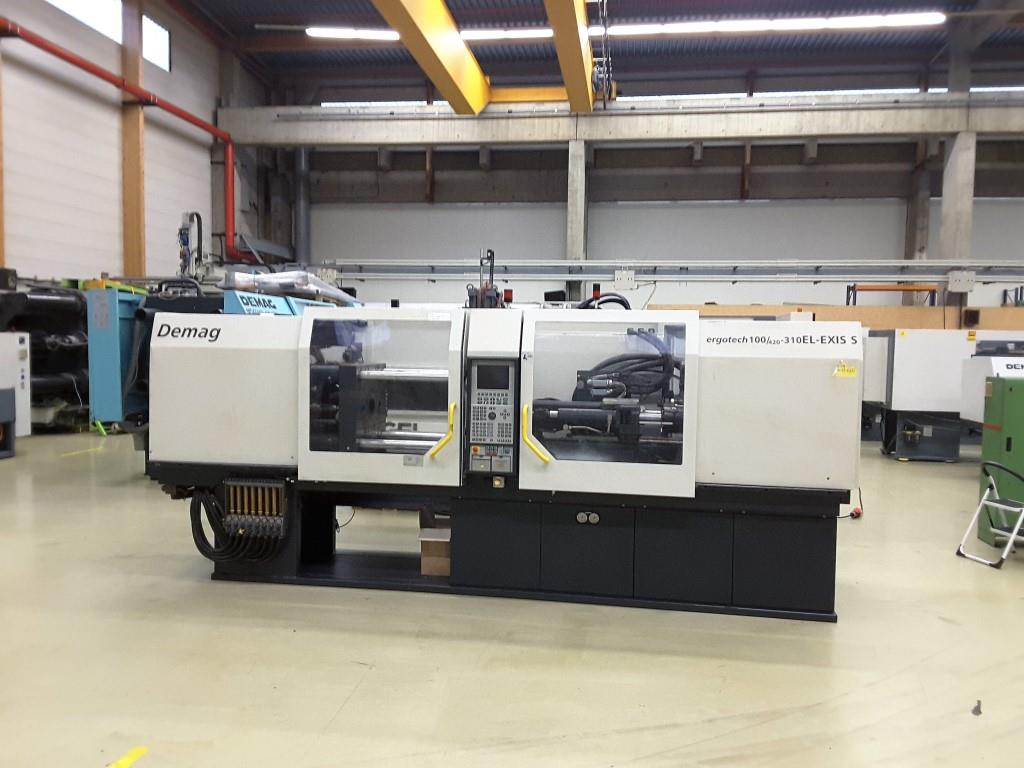

Demag Ergotech 100/420 - 310 EL Exis S
| Details |
| Manufacturer: | Demag |
| Type of machine: | Ergotech 100/420 -310 EL Exis S System |
| Year: | 2002 |
| Delivery time: | Now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German / Englisch |

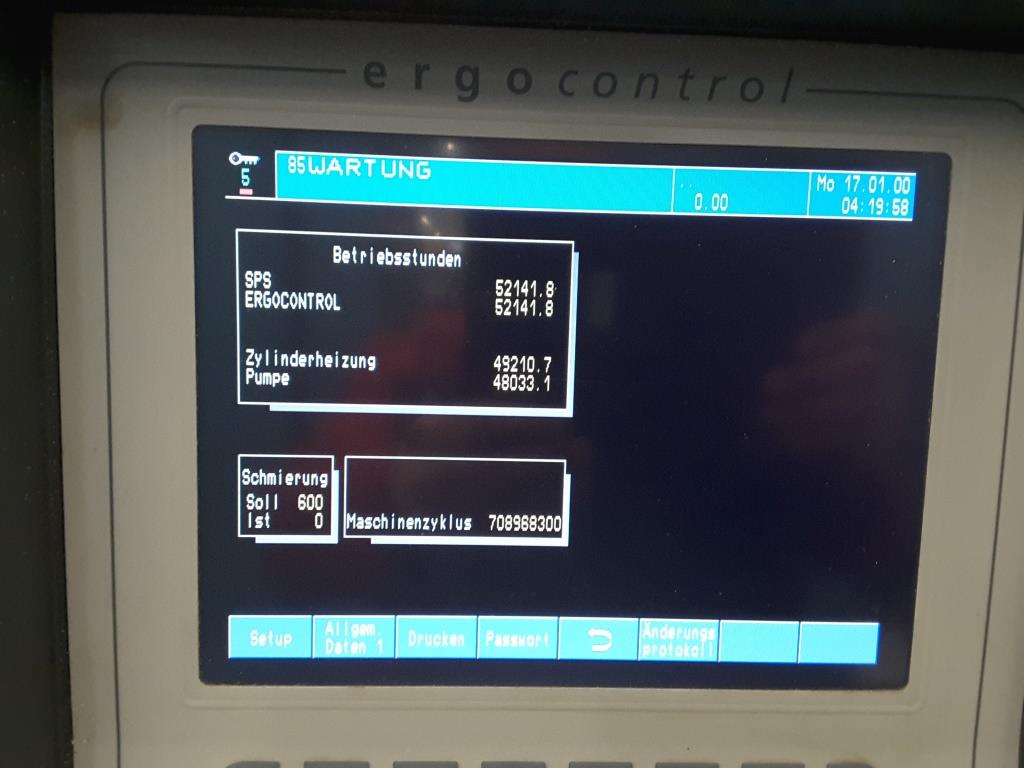

| Operating hours: | 48.033 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Size of mould platens (h x v): | 600 mm x 600 mm |
| Distance between tie bars (h x v): | 425 mm x 420 mm |
| Mould opening stroke: | 380 mm |
| Mould height min./ max: | 200 / 430 mm |
| Max daylight: | 810 mm |
| Hydraulic ejector - stroke: | 140 mm |
| Ejector force forward/backward: | 59 / 29 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| L/D | 25 |
| Injection pressure: | 2024bar |
| Stroke volume: | 168 ccm |
| Shot weight, PS: | 149 g |
| Screw Stroke | 175 mm |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| E - Screw Drive | 18 Kw |
| E - Clamp | 12 Kw |
| Installed heating capacity: | 7,9 kW |
| Dry cycle number: Euromap 6 | 1,5 s - 294 mm |
| Reservoir capacity: | 105 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 4800 x 1500 x 2100 mm | |
| weight: | 5900 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| |
|
| Picture |
|---|
