Demag D 325 - 1190 NC III
| Details |
| Manufacturer: | Demag |
| Type of machine: | D 325 - 1190 NC III |
| Year: | 1991 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC III |
| Screen text: | German |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 3.250 kN |
| Size of mould platens (h x v): | 940 mm x 940 mm |
| Distance between tie bars (h x v): | 630 mm x 630 mm |
| Mould opening stroke: | 600 mm |
| Mould height min./ max: | 330 / 770 mm |
| Max daylight: | 1.370 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 45 / 25 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 70 mm |
| L / D | |
| Injection pressure: | 1120 bar |
| Screw Stroke | mm |
| Stroke volume: | 865 ccm |
| Shot weight, PS: | 775 g |
| Injection rate: | 315 g/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | 64 g/s |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 37 kW |
| Installed heating capacity: | 18,8 kW |
| Dry cycle number: | 1130 1/h |
| Reservoir capacity: | 580 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 7800 x 1850 x 1900 mm | |
| weight: | 14.200 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - 2 x Cores - Robot Interface Euromap 12 - |
|

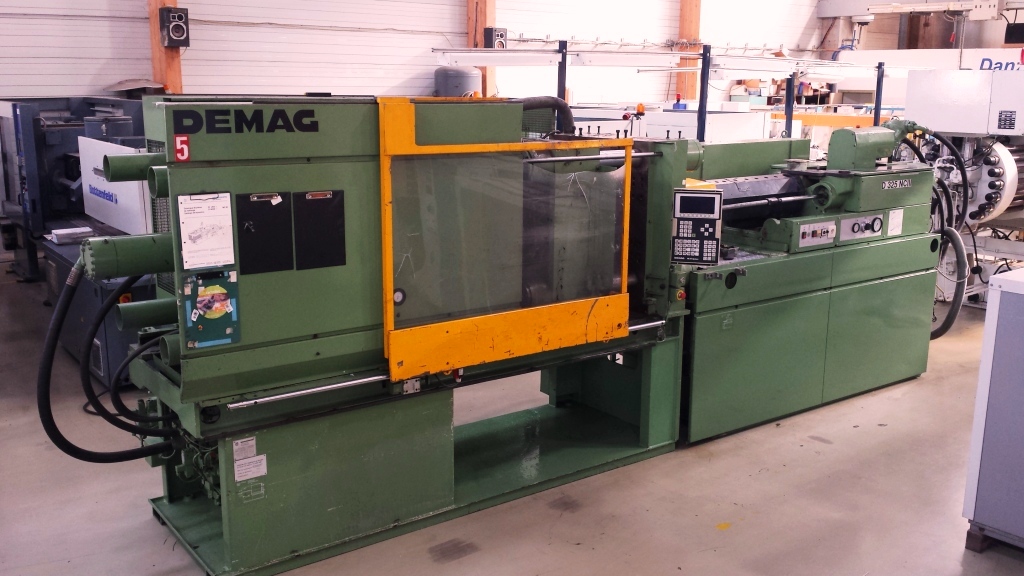

| Picture |
|---|
