Demag 1000 - 430 Compact
| Details |
| Manufacturer: | Demag |
| Type of machine: | Compact 1000 - 430 |
| Year: | 1994 |
| Delivery time: | Now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | 13.455 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1000 kN |
| Size of mould platens (h x v): | 580 mm x 590 mm |
| Distance between tie bars (h x v): | 400 mm x 400 mm |
| Mould opening stroke: | 500 mm |
| Mould height min./ max: | 250 / .... mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 41,2 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| L / D | 20 |
| Injection pressure: | 2400 bar |
| Stroke volume: | 168,3 ccm |
| Shot weight, PS: | 149 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 8,8 kW |
| Dry cycle number: | |
| Reservoir capacity: | 250 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 4200 x 1400 x 1900 mm | |
| weight: | 4200 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - Robot Interface Euromap 12 - 1 x Cores |
|

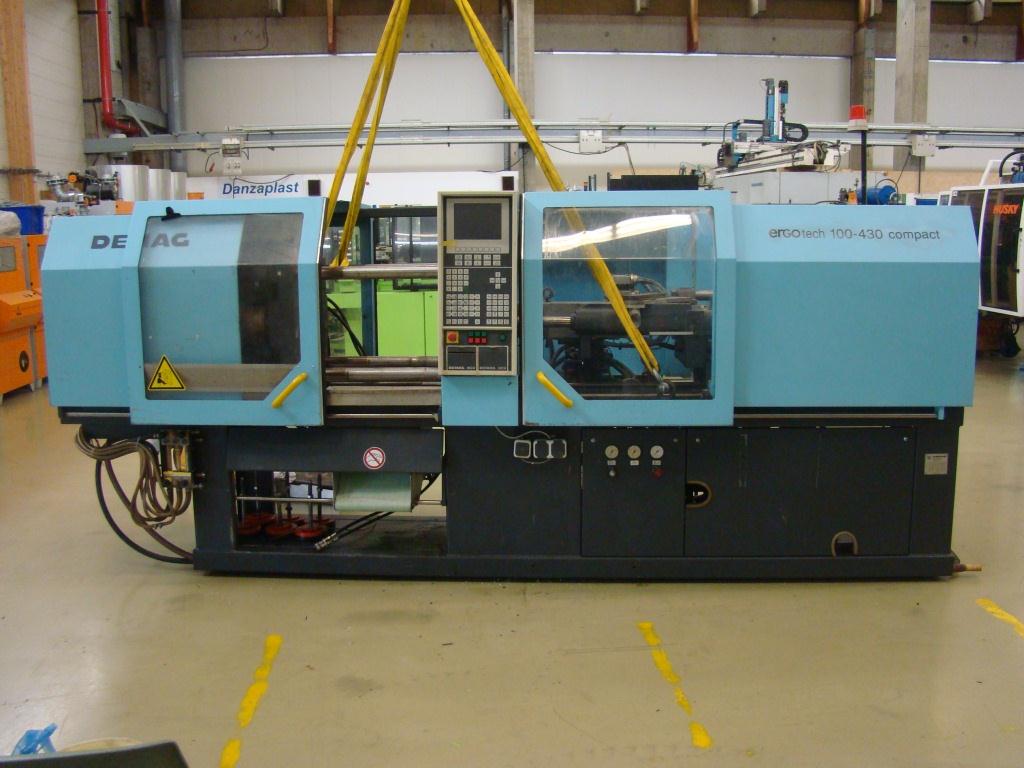

| Picture |
|---|
