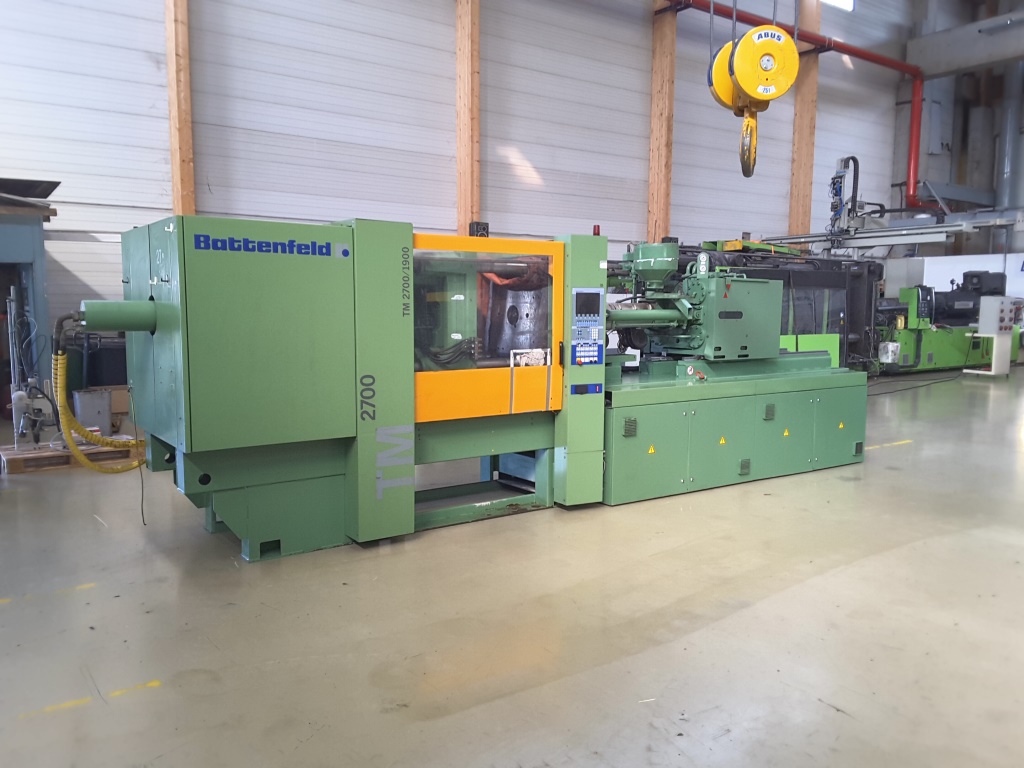

| Battenfeld TM 2700 / 1900 B4 |
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | TM 2700 / 1900 |
| Year: | 2001 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog B4 |
| Screen text: | Dutch |
| Operating hours: | 63.271 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.700 kN |
| Size of mould platens (h x v): | 940 mm x 940 mm |
| Distance between tie bars (h x v): | 630 mm x 630 mm |
| Mould opening stroke: | 600 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | 650 mm |
| Max daylight: | 1250 mm |
| Hydraulic ejector - stroke: | 200 mm |
| Ejector force forward/backward: | 59 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 75 mm PVC Xaloy |
| Ls/D ratio: | 20 |
| Injection pressure: | 1335 bar |
| Stroke volume: | 1436 ccm |
| Shot weight, PS: | 1307 g |
| Injection stroke: | 275 mm |
| Screw speed: | 60 1/min |
| Plasticising rate max.: | 43 g/s |
| Nozzle pressure: | 140 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 31,3 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 22 Kw |
| Oil | 660 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 11.800 kg |
| Dimensions ( L x B x H ) | 6.3 x 2.2 x 2.2 m |
| Accessories | |
|---|---|
| - 2 x Core Hydraulic - -Anti vibration pads - - Robot Interface Euromap 12 |
| Additional information | |
|---|---|
| Picture |
|---|
