Battenfeld TM 1600 / 750
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | TM 1600 / 750 |
| Year: | 2000 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | B 4 |
| Screen text: | German |
| Operating Hours | Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.600 kN |
| Size of mould platens (h x v): | 760 mm x 760 mm |
| Distance between tie bars (h x v): | 520 mm x 520 mm |
| Mould opening stroke: | 480 mm |
| Mould height min.: | 225 mm |
| Mould height max.: | 550 mm |
| Max daylight: | 1030 mm |
| Hydraulic ejector - stroke: | 180 mm |
| Ejector force forward/backward: | 41 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1714 bar |
| Stroke volume: | 442 ccm |
| Shot weight, PS: | 397 g |
| Injection stroke: | 225 mm |
| Screw speed: | 0 - 291 1/min |
| Plasticising rate max.: | 43,9 g/sec. |
| Nozzle pressure: | 86 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 13,8 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 22 Kw |
| Oil | 230 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 6.400 kg |
| Dimensions ( L x B x H ) | 5,06 x 1,52 x 2,10 m |
| Accessories | |
|---|---|
| - 3 x Core - Robot Interface Euromap 12 - 7 x Hotrunner controllers |
| Additional information | |
|---|---|
| - - fold Waterbattery |

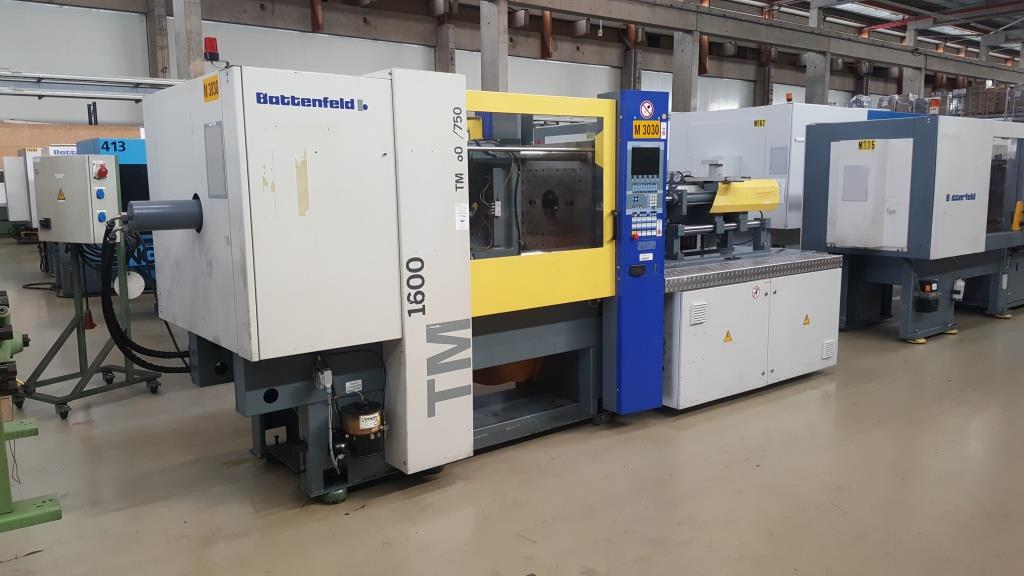

| Picture |
|---|
