Battenfeld HM 4500 - 2800 B4
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | HM 4500 / 2800 |
| Year: | 2001 |
| Delivery time: | Immediately |
| Terms of Delivery: | EX Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog B4 |
| Screen text: | German - Englisch |
| Machine Hours | 29.240 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4500 kN |
| Size of mould platens (h x v): | 1240 mm x 1140 mm |
| Distance between tie bars (h x v): | 900 mm x 800 mm |
| Mould opening stroke: | 760 mm |
| Mould height min.: | 395 mm |
| Mould height max.: | 770 mm |
| Day Light | 1530 mm |
| Ejector stroke | 250mm |
| Ejector Force | 81 Kn |
| Dry Cycle | 3,5 sec. |
| Injection unit | |
|---|---|
| Screw diameter: | 75 mm |
| L / D | 22 |
| Injection pressure: | 1739 bar |
| Screw Stroke | 375 mm |
| Stroke volume: | 1657 ccm |
| Shot weight, PS: | 1508 g |
| Injection rate: | ccm/s |
| Screw speed: | 255 1/min |
| Plasticising rate max.: | 88 g/s |
| Number of heating zones | 1+6 |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 43 kW |
| Pump Capacity | 55 Kw |
| Reservoir capacity: | 1010 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,69 m x 2,09 m x 2,33 m |
| Total machine weight: | 20.400 kg |
| Accessories | |
|---|---|
| - 1 x Cores -Anti vibration pads - Robot Interface Euromap 12 - 8 x Hotrunner controllers |
| Additional information | |
|---|---|
| - |

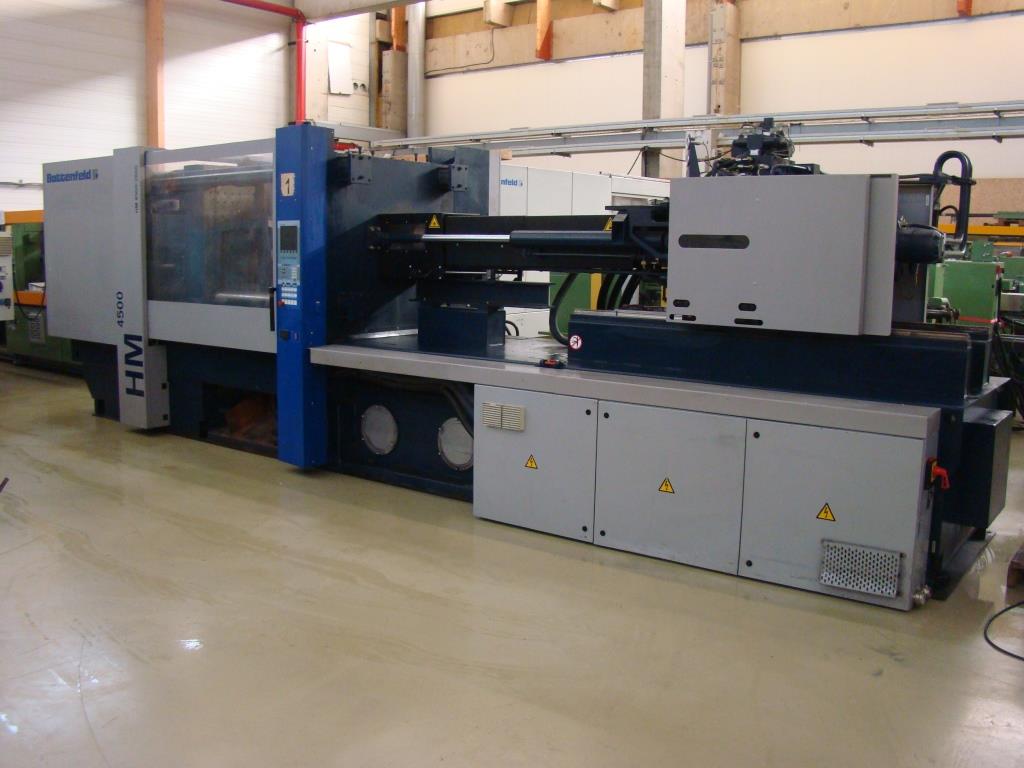

| Picture |
|---|
