Battenfeld HM 2700 / 1330 Unilog B4
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | HM 2700 / 1330 |
| Year: | 2004 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | B 4 |
| Screen text: | German / ...... |
| Operating Hours | 65.000 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.700 kN |
| Size of mould platens (h x v): | 1030 mm x 1020 mm |
| Distance between tie bars (h x v): | 710 mm x 630 mm |
| Mould opening stroke: | 800 mm |
| Mould height min.: | 350 mm |
| Mould height max.: | --- mm |
| Max daylight: | 1150 mm |
| Hydraulic ejector - stroke: | 200 mm |
| Ejector force forward/backward: | 59 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 55 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 2041 bar |
| Stroke volume: | 653 ccm |
| Shot weight, PS: | 594 g |
| Injection stroke: | 400 mm |
| Screw speed: | 318 1/min |
| Plasticising rate max.: | 59,3 g/sec. |
| Nozzle pressure: | 100 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 18,2 kW |
| Adjustable barrel heating zones: | 1+4 |
| Pump power | 45 Kw |
| Oil | 650 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 12.000 kg |
| Dimensions ( L x B x H ) | 5,6 x 1,8 x 2,2 m |
| Accessories | |
|---|---|
| - 4 x Core - 1 x Cascade - robot Interface - |
| Additional information | |
|---|---|

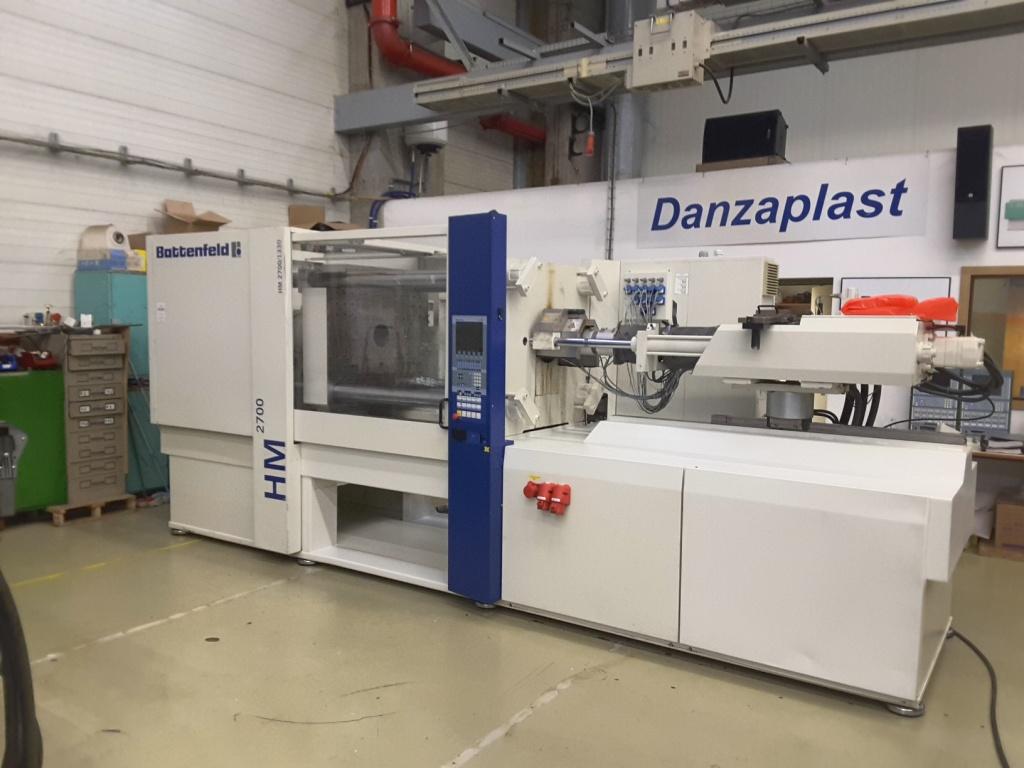

| Picture |
|---|
