Battenfeld HM 100 / 525
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | HM 100 / 525 |
| Year: | 2003 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | B 4 |
| Screen text: | German - Englisch |
| Operating Hours | 43486 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Size of mould platens (h x v): | 680 mm x 594 mm |
| Distance between tie bars (h x v): | 470 mm x 420 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | --- mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 41,2 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 2100 bar |
| Stroke volume: | 251 ccm |
| Shot weight, PS: | 228,4 g |
| Injection stroke: | 200 mm |
| Screw speed: | 0 - 318 1/min |
| Plasticising rate max.: | 30,4 g/sec. |
| Nozzle pressure: | 86 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 12,1 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 18,5 Kw |
| Oil | 275 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 4.600 kg |
| Dimensions ( L x B x H ) | 4,3 x 1,5 x 2,0 m |
| Accessories | |
|---|---|
| - 1 x Core - robot Interface Euromap 12 - 6 x Hotrunner Controllers |
| Additional information | |
|---|---|

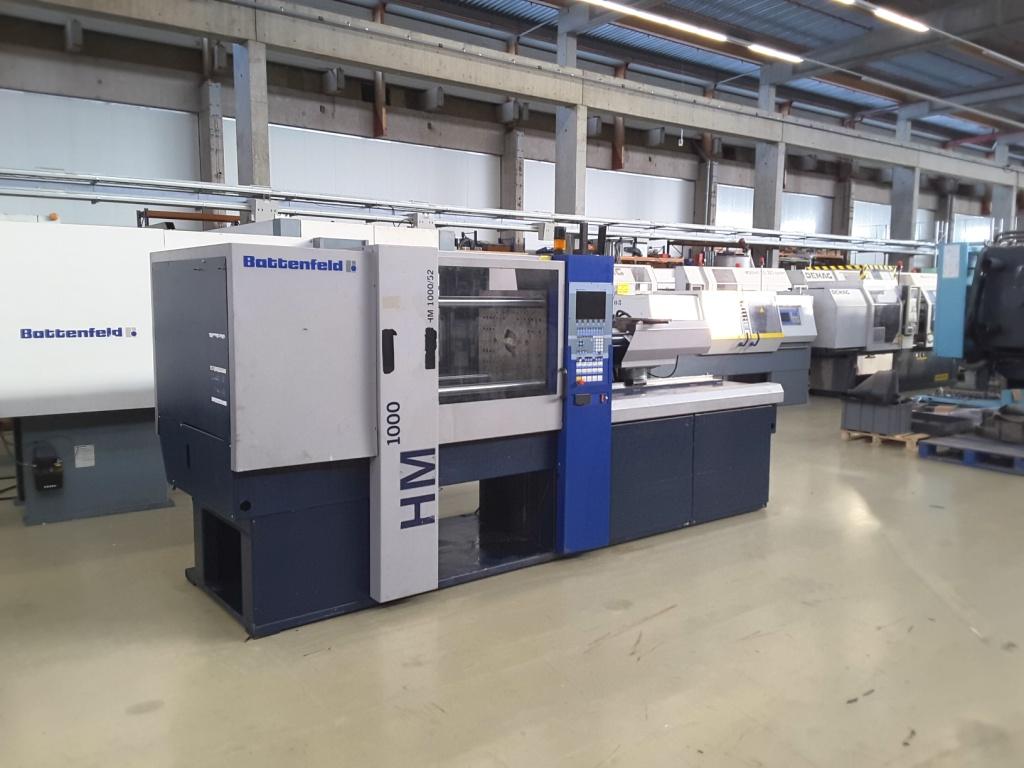

| Picture |
|---|
