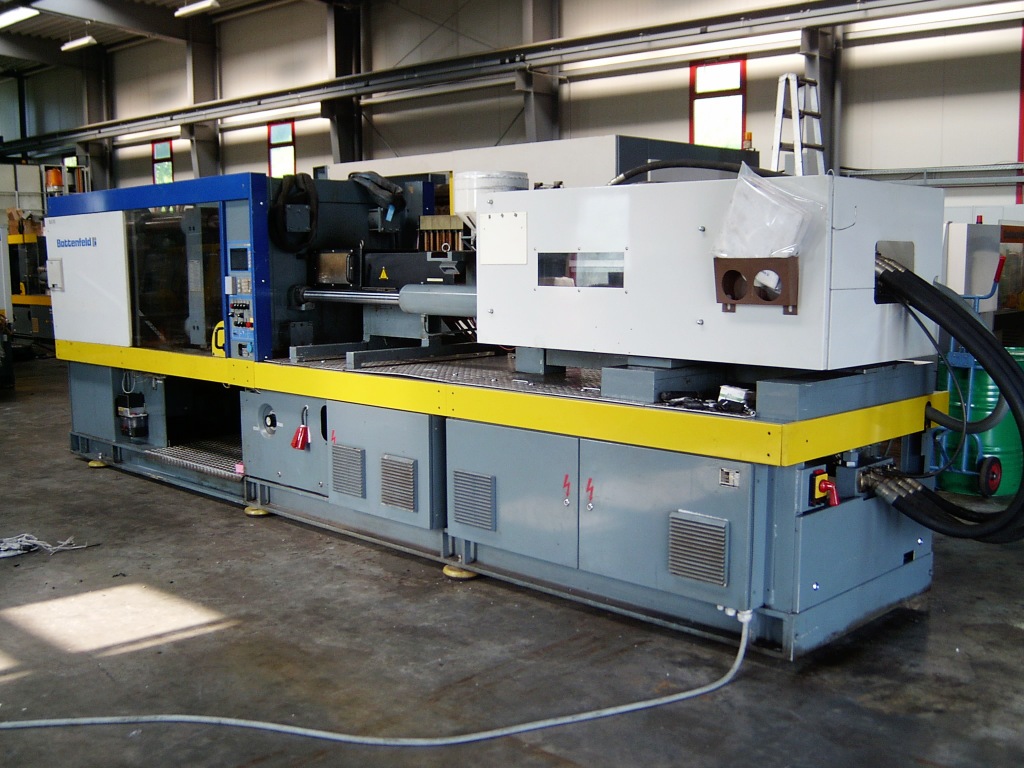

Battenfeld BK-T 2500 - 1600
| Manufacturer: |
Battenfeld |
| Type of machine: |
BK-T 2500 - 1600 |
| Year: |
1992 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
EX - Works |
| Location: |
Eschweiler - Germany |
| Controlversion: |
Unilog 4000 B |
| Screen text: |
Frence |
| Operating hours: |
64.263 Hrs |
| Price: |
On Request |
Technical details
| Clamping unit |
| Clamping force: |
2500 kN |
| Size of mould platens (h x v): |
900 mm x 900 mm |
| Distance between tie bars (h x v): |
580 mm x 580 mm |
| Mould opening stroke: |
675 mm |
| Mould height min.: |
237,5 mm |
| Mould height max.: |
475 mm |
| Max daylight: |
1375 mm |
| Injection unit |
| Screw diameter: |
65 mm |
| Injection pressure: |
1826 bar |
| Stroke volume: |
862 ccm |
| Shot weight, PS: |
775 g |
| Electric and Hydraulic Equipment |
| Dimensions und weights |
| Dimensions of the machine ca.: |
7,10 m x 1,50 m x 2,30 m |
| Total machine weight: |
11500 kg |
| Accessories |
| 2x Cores |
| Robot interface |
| Wedge type anti-vibration pads |
|
