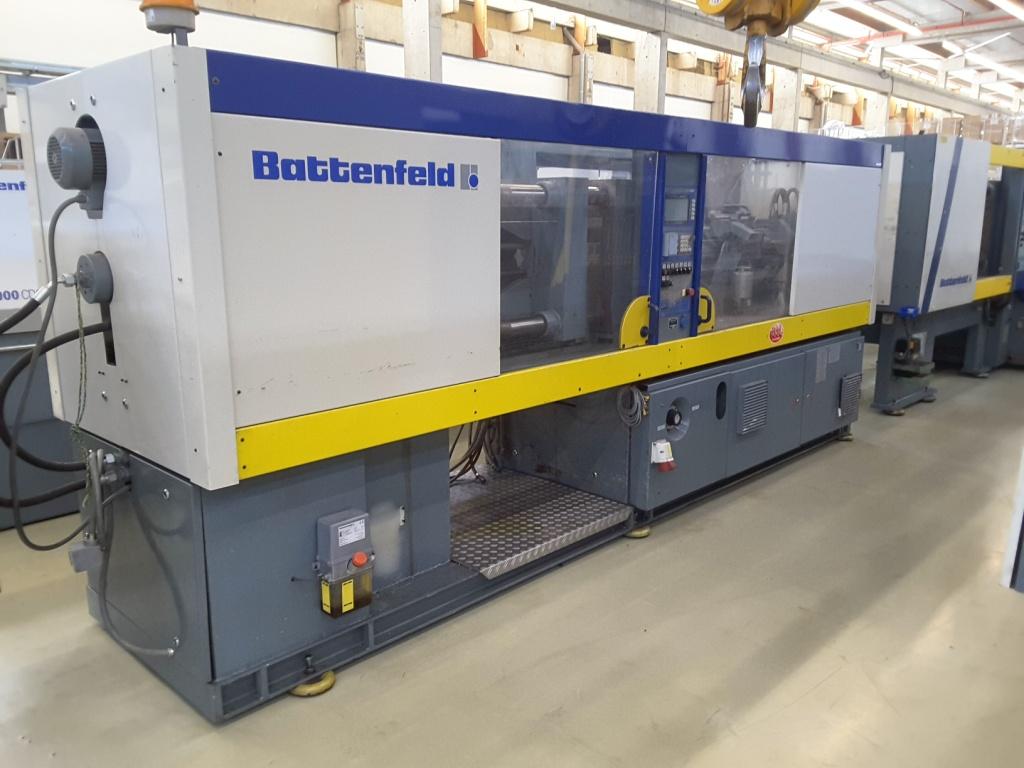

Battenfeld BK-T 1300 / 500
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BK-T 1300 / 500 |
| Year: | 1989 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 B |
| Screen text: | Frensch |
| Operating hours: | 26.670 hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1300 kN |
| Size of mould platens (h x v): | 700 mm x 700 mm |
| Distance between tie bars (h x v): | 470 mm x 470 mm |
| Mould opening stroke: | 420 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | 450 mm |
| Max daylight: | 870 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 67 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 22,5 |
| Injection pressure: | 2210 bar |
| Stroke volume: | 226,2 ccm |
| Shot weight, PS: | 205,8 g |
| Screw speed: | 204 1/min |
| Plasticising rate max.: | 31 g/s |
| Nozzle pressure: | 79,2 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 11,2 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 270 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,83 m x 1,16 m x 2,1 m |
| Total machine weight: | 5400 kg |
| Accessories | |
|---|---|
| - Anti vibration - 1 x Core -Robot interface - Accumulator |
