Battenfeld BK - T 4800 / 2500
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BK-T 4800 - 2500 |
| Year: | 1996 |
| Delivery time: | Immediately |
| Terms of Delivery: | EX Works |
| Location: | Eschweiler-Germany |
| Controlversion: | Unilog 4000 B |
| Screen text: | Dutch |
| Machine Hours | 90.737 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4.800 kN |
| Size of mould platens (h x v): | 1120 mm x 1120 mm |
| Distance between tie bars (h x v): | 800 mm x 800 mm |
| Mould opening stroke: | 760 mm |
| Mould height min.: | 300 mm |
| Mould height max.: | 750 mm |
| Day Light | 1510 mm |
| Ejector stroke | 160 mm |
| Ejector Force | 77 Kn |
| Dry Cycle | 3,5 sec. |
| Injection unit | |
|---|---|
| Screw diameter: | 75 mm |
| L / D | 20 |
| Injection pressure: | 1867 bar |
| Screw Stroke | 300 mm |
| Stroke volume: | 1325 ccm |
| Shot weight, PS: | 1206 g |
| Injection rate: | 433 ccm/s |
| Screw speed: | 145 1/min |
| Plasticising rate max.: | 60 g/s |
| Number of heating zones | 1+5 |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 21,5 kW |
| Pump Capacity | 45 Kw |
| Reservoir capacity: | 350 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,64 m x 1,36 m x 2,15 m |
| Total machine weight: | 19.550 kg |
| Accessories | |
|---|---|
| - 2 x Cores -Anti vibration pads -Robot interface |
| Additional information | |
|---|---|
| - |

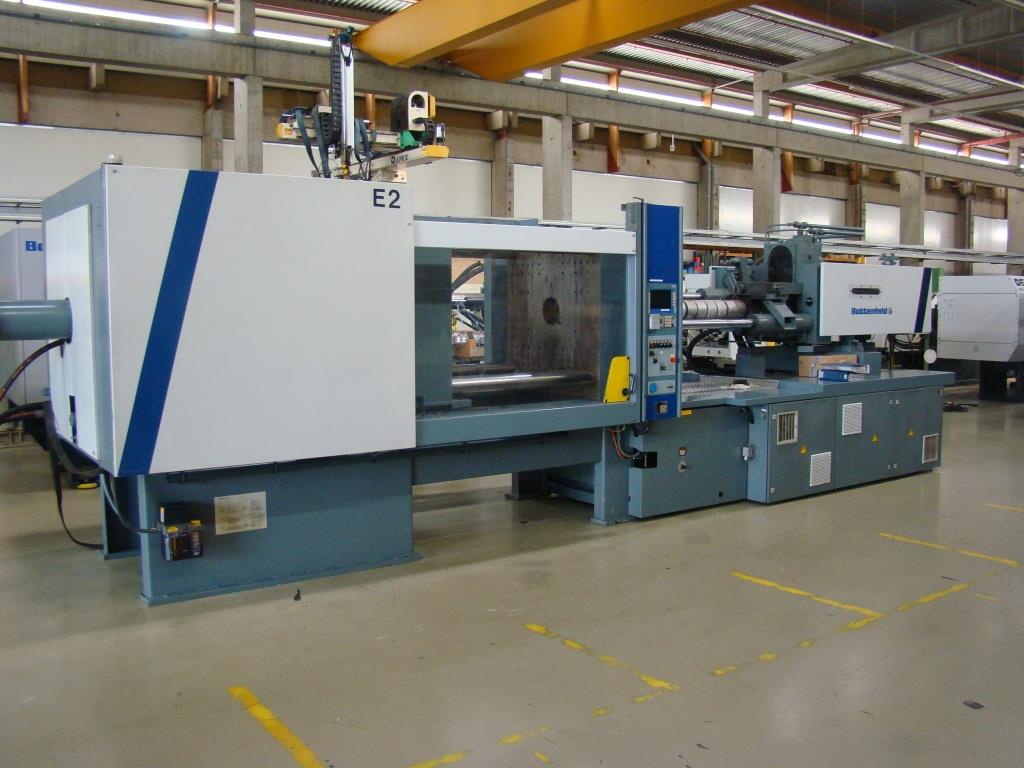

| Picture |
|---|
