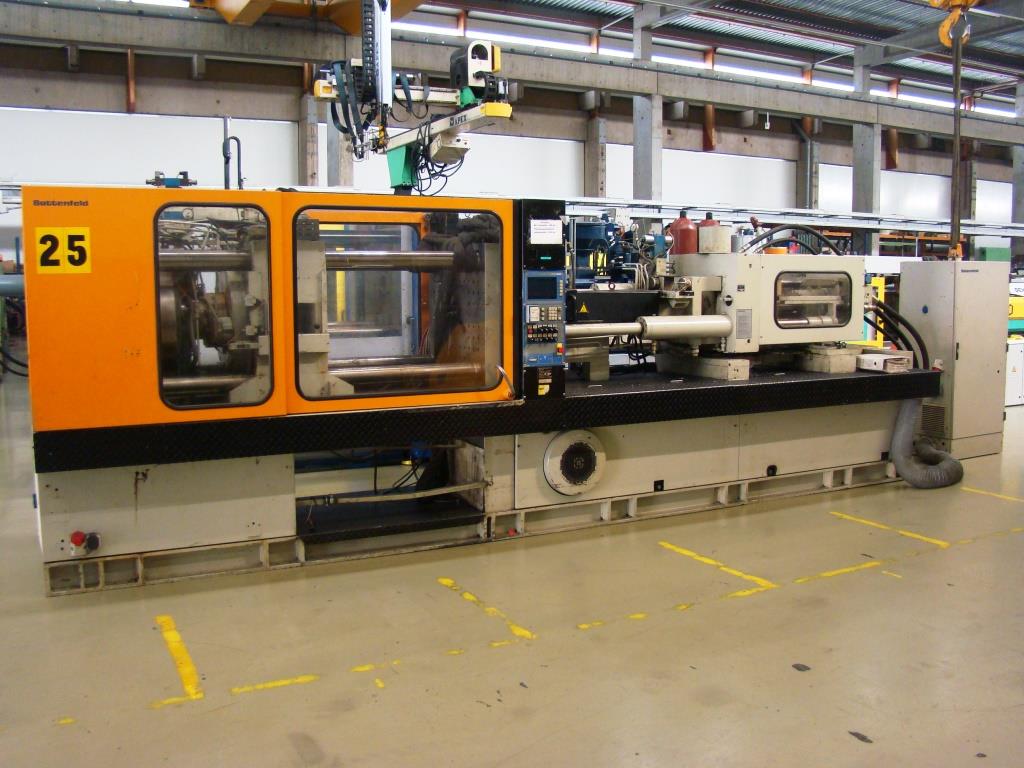

Battenfeld BAT 3200 / 1600
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BAT 3200 / 1600 |
| Year: | 1990 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 |
| Screen text: | German |
| Operating hours: | 84.031hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 3.200 kN |
| Size of mould platens (h x v): | 900 mm x 900 mm |
| Distance between tie bars (h x v): | 565 mm x 565 mm |
| Mould opening stroke: | 425 mm |
| Mould height min.: | 462,5 mm |
| Mould height max.: | 625m |
| Max daylight: | 1050 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 67 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 65 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 1826 bar |
| Stroke volume: | 862 ccm |
| Shot weight, PS: | 784 g |
| Screw speed: | 175 1/min |
| Plasticising rate max.: | 50 g/s |
| Nozzle pressure: | 150 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 37 kW |
| Installed heating capacity: | 19,2 kW |
| Adjustable barrel heating zones: | 5+1 |
| Reservoir capacity: | 400 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,10 m x 1,55 m x 2,45 m |
| Total machine weight: | 17.000 kg |
| Accessories | |
|---|---|
| - Anti vibration -2 x Cores -8 x Hotrunner controllers - Accumulator |
