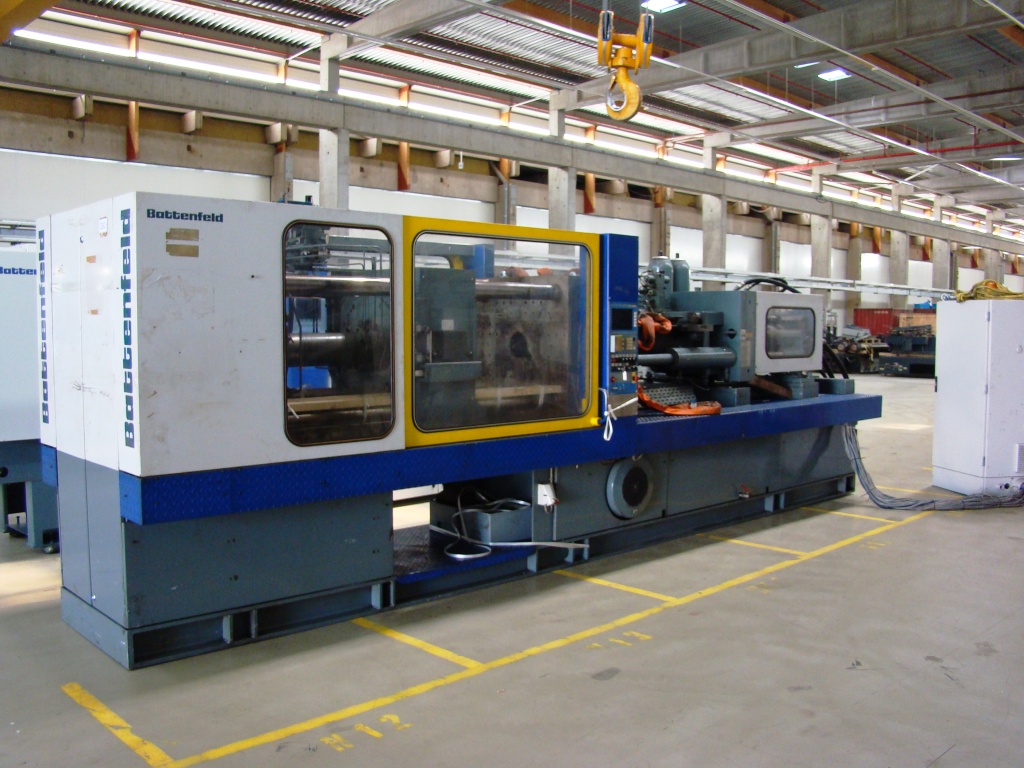

Battenfeld BA- T 2400 - 1600
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA - T 2400 - 1600 |
| Year: | 1989 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

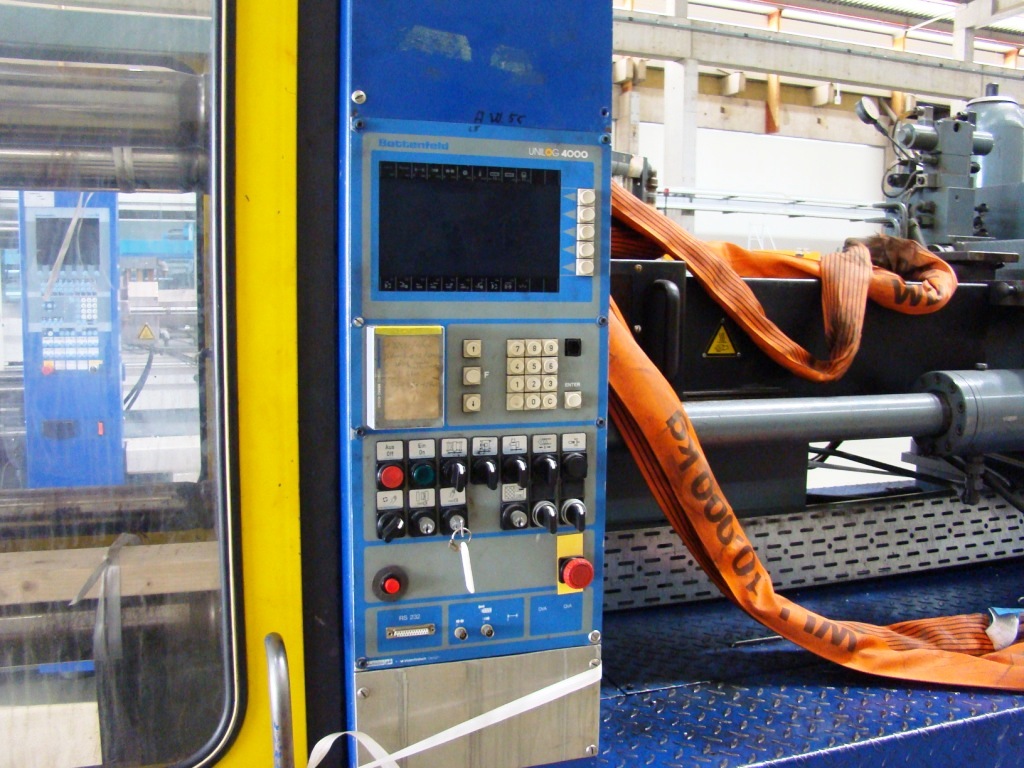

| Controlversion: | Unilog 4000 B |
| Screen text: | Deutsch |
| Operating hours: | 86.000 hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.400 kN |
| Size of mould platens (h x v): | 900 mm x 900 mm |
| Distance between tie bars (h x v): | 580 mm x 580 mm |
| Mould opening stroke: | 675 mm |
| Mould height min.: | 337,5 mm |
| Mould height max.: | 575 mm |
| Max daylight: | 1012 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | kN |
| Injection unit | |
|---|---|
| Screw diameter: | 65 mm |
| Ls/D ratio: | |
| Injection pressure: | 1826 bar |
| Stroke volume: | 862 ccm |
| Shot weight, PS: | 780 g |
| Screw speed: | 1/min |
| Plasticising rate max.: | 40 g/s |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 37 kW |
| Installed heating capacity: | 19 kW |
| Adjustable barrel heating zones: | |
| Reservoir capacity: | 440 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,8 m x 1,55 m x 2,3 m |
| Total machine weight: | 13.000 kg |
| Accessories | |
|---|---|
| - Anti vibration |
| Additional information | |
|---|---|
| - |
| Picture |
|---|
