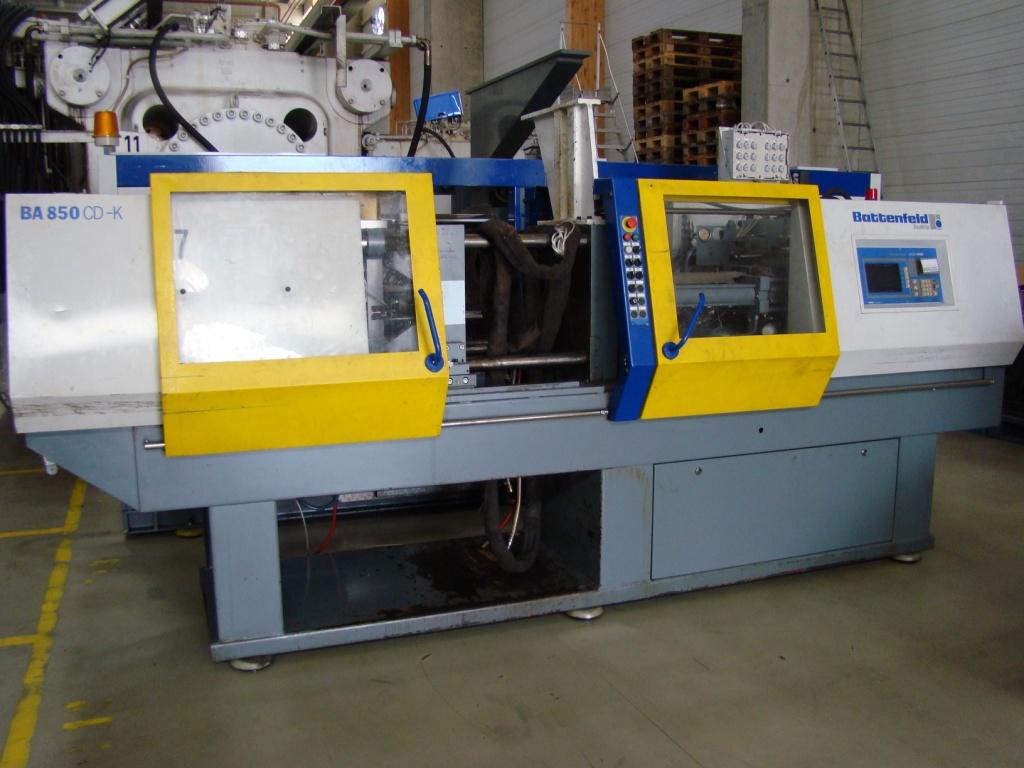

Battenfeld BA 850 / 315 CDK
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 850 / 315 CDK |
| Year: | 1992 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

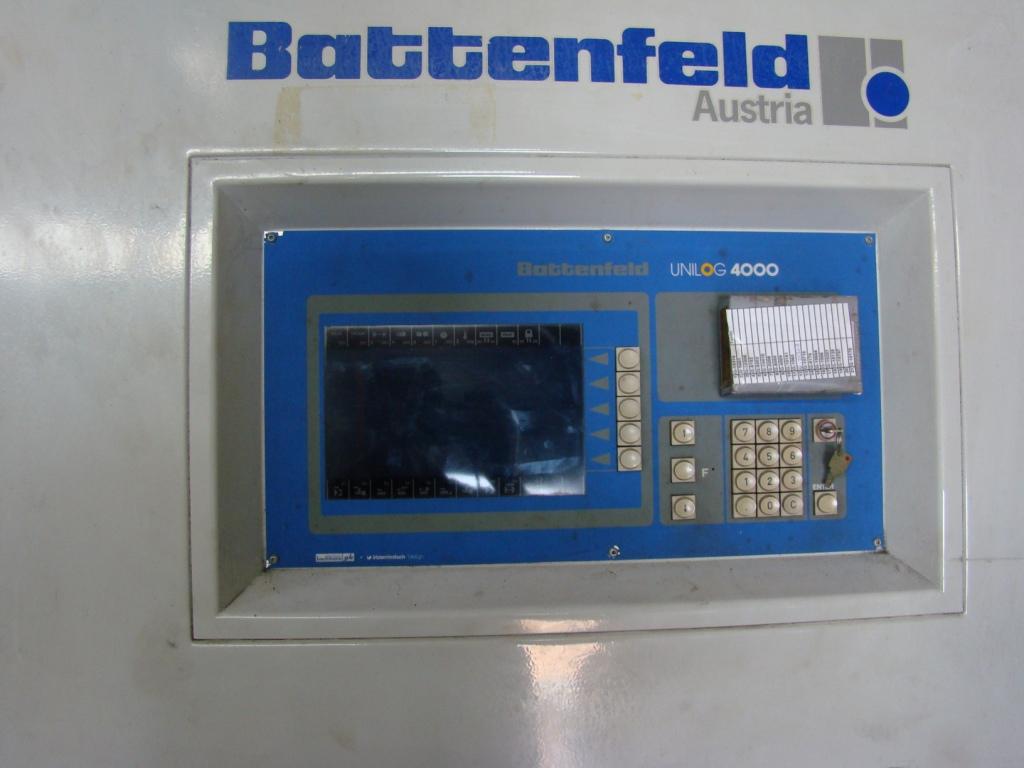

| Controlversion: | Unilog 4000 B |
| Screen text: | German |
| Operating Hours | 10131 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 8500 kN |
| Size of mould platens (h x v): | 600 mm x 620 mm |
| Distance between tie bars (h x v): | 410 mm x 410 mm |
| Mould opening stroke: | 355 mm |
| Mould height min.: | 150 mm |
| Mould height max.: | 400 mm |
| Max daylight: | 755 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 17,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | |
| Injection pressure: | 1575 bar |
| Stroke volume: | 201 ccm |
| Shot weight, PS: | 182,9 g |
| Injection stroke: | mm |
| Screw speed: | 1/min |
| Plasticising rate max.: | 21 g/s |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 8,98 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 15 Kw |
| Oil | 200 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 4.000 kg |
| Dimensions ( L x B x H ) | 4,29 x 1,40 x 1,95 m |
| Accessories | |
|---|---|
| - Anti vibration pads - Hopper |
| Additional information | |
|---|---|
| - 4-fold Waterbattery - Robot interface |
| Picture |
|---|
