Battenfeld BA 6500 - 2800 HM 9000C
| Manufacturer: |
Battenfeld |
| Type of machine: |
BA 6500 - 2800 HM |
| Year: |
1996 |
| Delivery time: |
Week 19 |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |
| Controlversion: |
Unilog 9000 C |
| Screen text: |
German |
| Operating hours: |
hrs |
| Price: |
on request |
Technical details

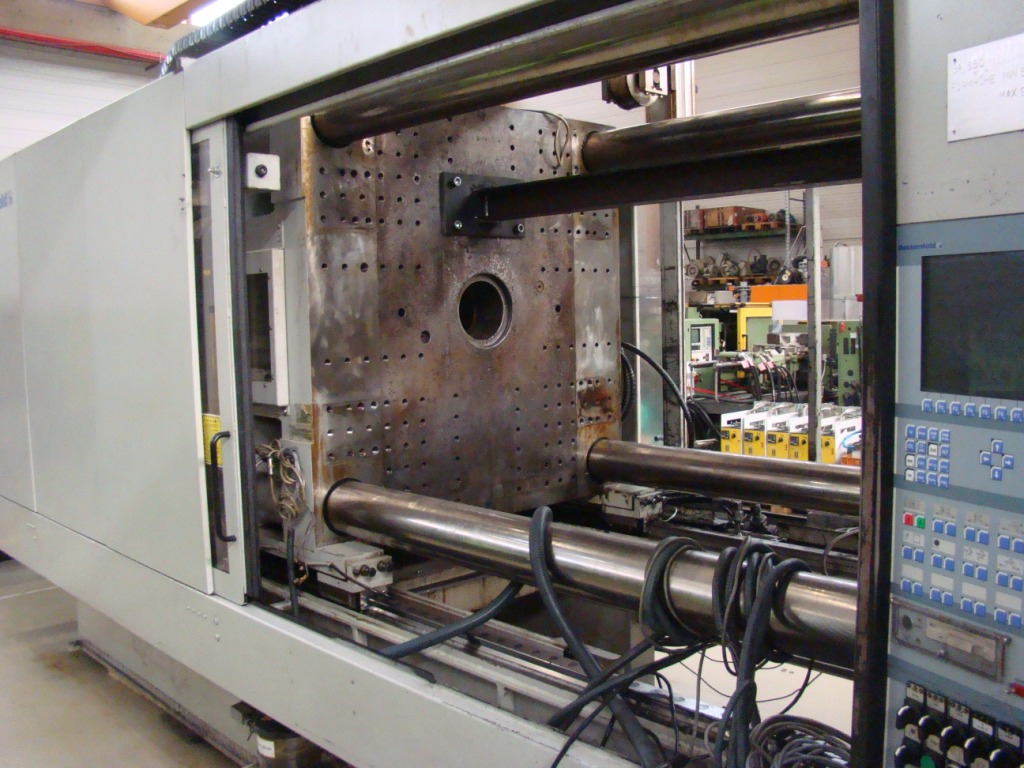

| Clamping unit |
| Clamping force: |
6.500 kN |
| Size of mould platens (h x v): |
1.400 mm x 1.400 mm |
| Distance between tie bars (h x v): |
1000 mm x 1000 mm |
| Mould opening stroke: |
800 - 1400 mm |
| Mould height min.: |
500 mm |
| Mould height max.: |
1.100 mm |
| Max daylight: |
1.900 mm |
| Hydraulic ejector - stroke: |
200 mm |
| Ejector force forward/backward: |
98 kN |

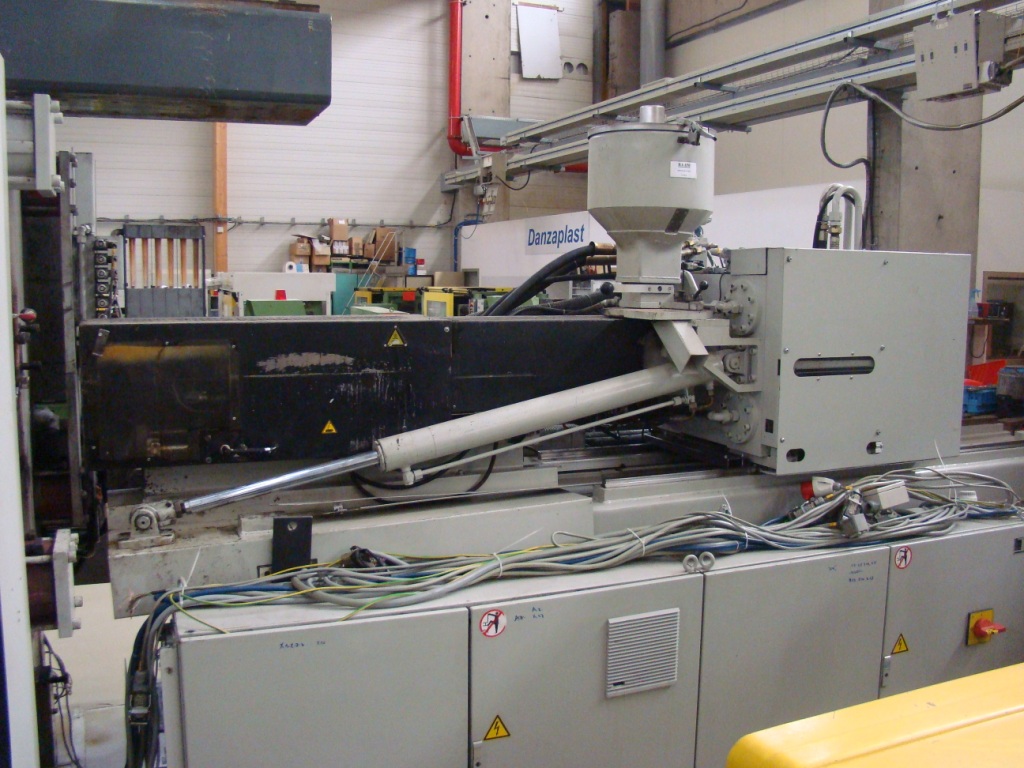

| Injection unit |
| Screw diameter: |
65 mm |
| Ls/D ratio: |
|
| Injection pressure: |
2315bar |
| Stroke volume: |
1244 ccm |
| Shot weight, PS: |
1132 g |
| Screw speed: |
2801/min |
| Plasticising rate max.: |
78 g/s |
| Nozzle pressure: |
154 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
63 kW |
| Installed heating capacity: |
36,1kW |
| Adjustable barrel heating zones: |
|
| Reservoir capacity: |
800 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
9,66 m x 2,302 m x 2,42 m |
| Total machine weight: |
38.500 kg |
| Accessories |
- Anti vibration
- 6 x Cores
- 6 x Sequentional valve gating
- Robot interface Euromap 12
- 2 x Air valve
- 9 x Hotrunner controllers
-Air mold interface |
